Series 577

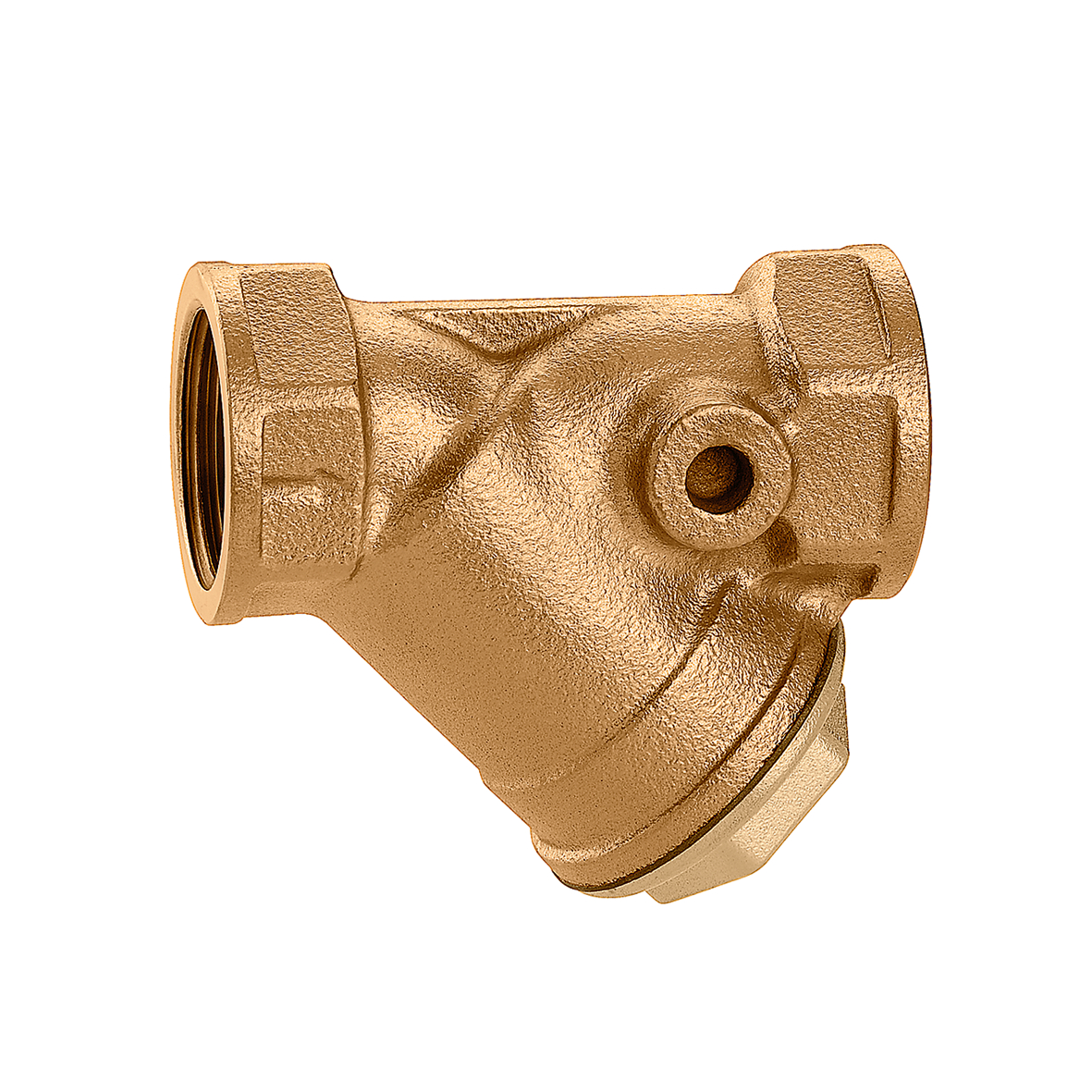

Y-strainer.

Go to
Download high resolution

Product Description

Y-strainer.
Strainer on stainless steel stretched plate.

Technical data

Medium temperature range: -20–110 °C
Maximum percentage of glycol: 30 %
Medium: water, glycol solutions
Material: bronze

Certifications

PZH

Drawings and specifications

Part number Connection Nominal pressure Strainer mesh size ⌀
Kv
2,5 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 1/2" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 16. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. Strainer mesh size ⌀: 0,40 mm. Kv: 2,5 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
3,9 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 3/4" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 16. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. Strainer mesh size ⌀: 0,40 mm. Kv: 3,9 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
7 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 1" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 16. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. Strainer mesh size ⌀: 0,40 mm. Kv: 7 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
16 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 1 1/4" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 16. Maximum percentage of glycol: 30 %. Medium: glycol solutions, water. Strainer mesh size ⌀: 0,47 mm. Kv: 16 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
24 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 1 1/2" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 16. Maximum percentage of glycol: 30 %. Medium: glycol solutions, water. Strainer mesh size ⌀: 0,47 mm. Kv: 24 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
35 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 2" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 16. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. Strainer mesh size ⌀: 0,53 mm. Kv: 35 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
57 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 2 1/2" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 10. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. Strainer mesh size ⌀: 0,53 mm. Kv: 57 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
Kv
73 m³/h
2D drawings
Download
Download
3D models
Tender text
Y-strainer. Strainer on stainless steel stretched plate. Connection: G 3" (ISO 228-1) F. Medium temperature range: -20–110 °C. Nominal pressure: PN 10. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. Strainer mesh size ⌀: 0,53 mm. Kv: 73 m³/h. Material: bronze.
SCIP code
63be63a3-4875-4c7b-89bf-14c359bb345c
