Series 5080

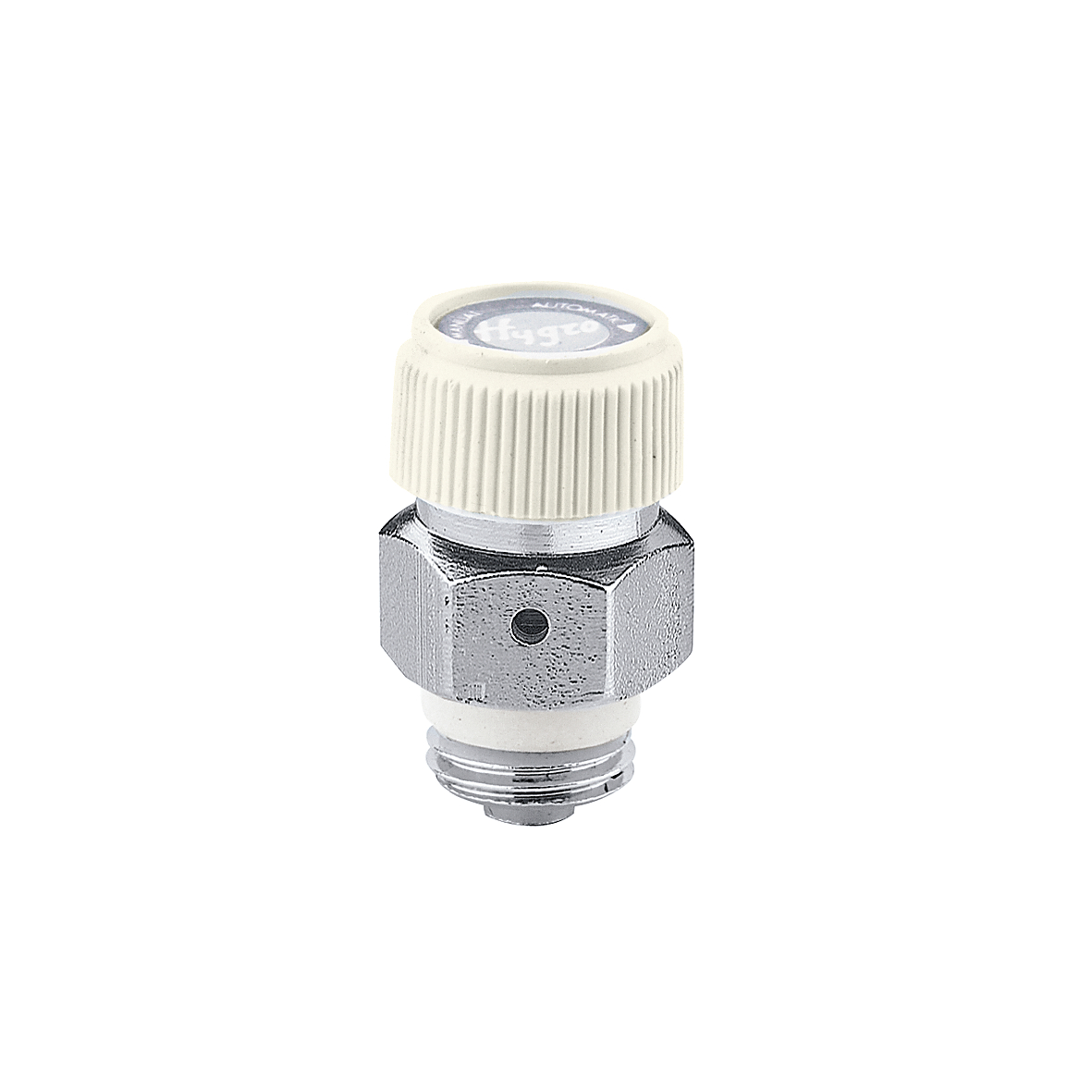

Automatic hygroscopic air vent for radiators.

Download high resolution

Product Description

Automatic hygroscopic air vent for radiators.
White POM (acetal resin) knob.
PTFE seal on thread.

Technical data

Maximum working pressure: 10 bar

Medium temperature range: 5–100 °C

Material: brass

Finish: nickel plated

Download

Drawings and specifications

Part number	Connection
508011	G 1/8" A (ISO 228-1) M
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508011%20%28dwg%29.dwg dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508011%20-%20TST%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508011%20%28dxf%29.dxf dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508011%20-%20TST%20%28DXF%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508011%20-%20TST%20%28IGS%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508011%20-%20TST%20%28STP%29.stp bim Tender text Automatic hygroscopic air vent for radiators. White POM (acetal resin) knob. PTFE seal on thread. Connection: G 1/8" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Material: brass. SCIP code f8ed74c2-a2af-4fbf-b12e-b3e3b04e7af8
508021	G 1/4" A (ISO 228-1) M
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508021%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508021%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508021%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508021%20%28stp%29.stp bim Tender text Automatic hygroscopic air vent for radiators. White POM (acetal resin) knob. PTFE seal on thread. Connection: G 1/4" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Finish: nickel plated. Material: brass. SCIP code eedd9c0b-cabe-44c5-8d99-1976a2e03517
508031	G 3/8" A (ISO 228-1) M
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508031%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508031%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508031%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508031%20%28stp%29.stp bim Tender text Automatic hygroscopic air vent for radiators. White POM (acetal resin) knob. PTFE seal on thread. Connection: G 3/8" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Finish: nickel plated. Material: brass. SCIP code f9431bc9-fa4c-4e3b-83a7-375a4902e082
508041	G 1/2" A (ISO 228-1) M
3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508041%20%28IGS%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/508041%20%28STP%29.stp bim Tender text Automatic hygroscopic air vent for radiators. White POM (acetal resin) knob. PTFE seal on thread. Connection: G 1/2" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Finish: nickel plated. Material: brass. SCIP code f1fbd46b-68f7-42d0-bbf2-27120eefef0b
