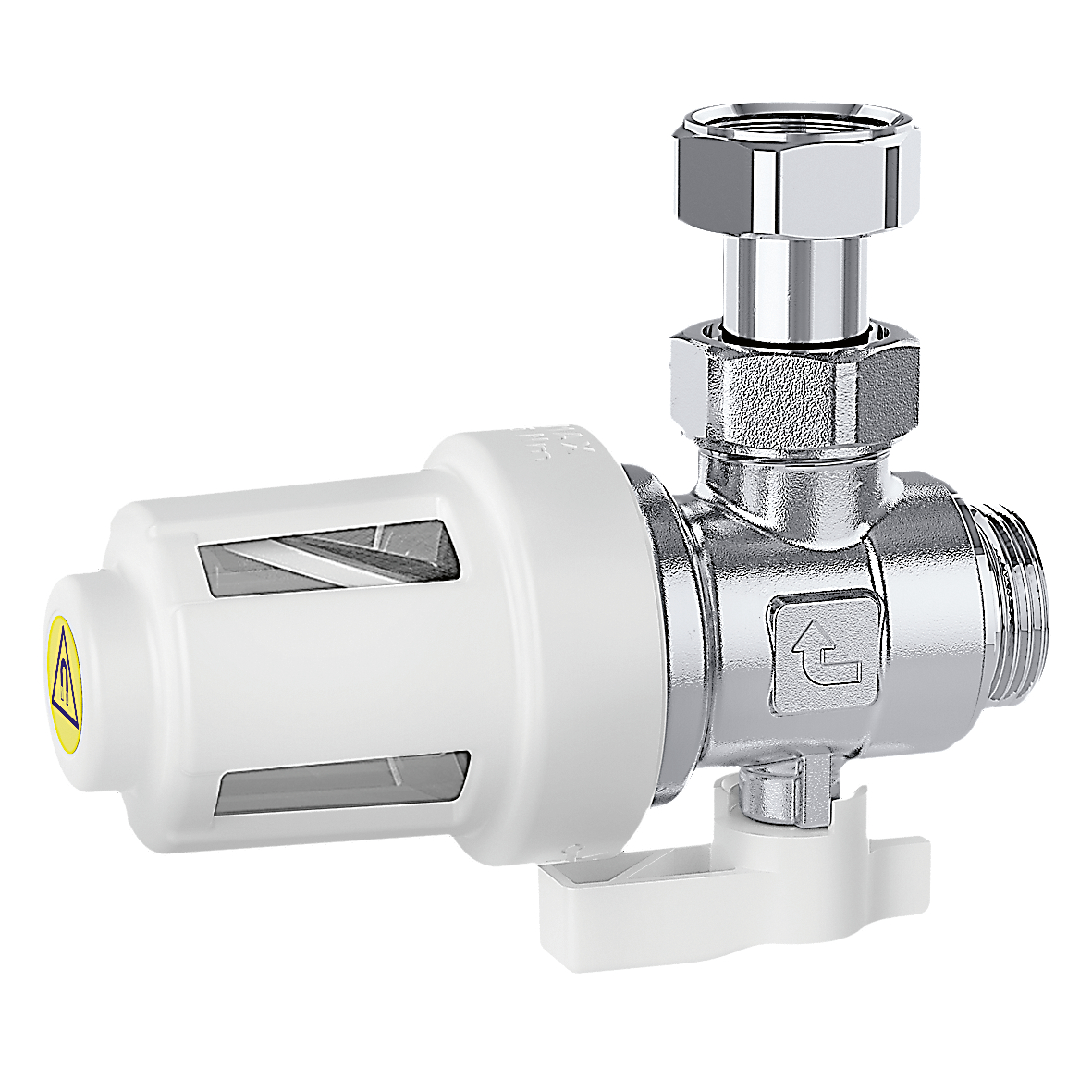

CALEFFI XS®, Under-boiler magnetic filter. Angled connections.
Product Description
Under-boiler magnetic filter. Angled connections.
PATENT PENDING
Technical data
Maximum working pressure:
3 bar
Medium temperature range:
0–90 °C
Finish:
chrome plated
Material:
brass
pdf
Drawings and specifications
| Part number | Inlet connection | Outlet connection | |
|---|---|---|---|
| 545900 | G 3/4" A (ISO 228-1) M angled connection |
G 3/4" (ISO 228-1) F captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Under-boiler magnetic filter. Angled connections.
Inlet connection: G 3/4" A (ISO 228-1) M, angled connection. Outlet connection: G 3/4" (ISO 228-1) F, captive nut. Maximum working pressure: 3 bar. Medium temperature range: 0–90 °C. Finish: chrome plated. Material: brass.
