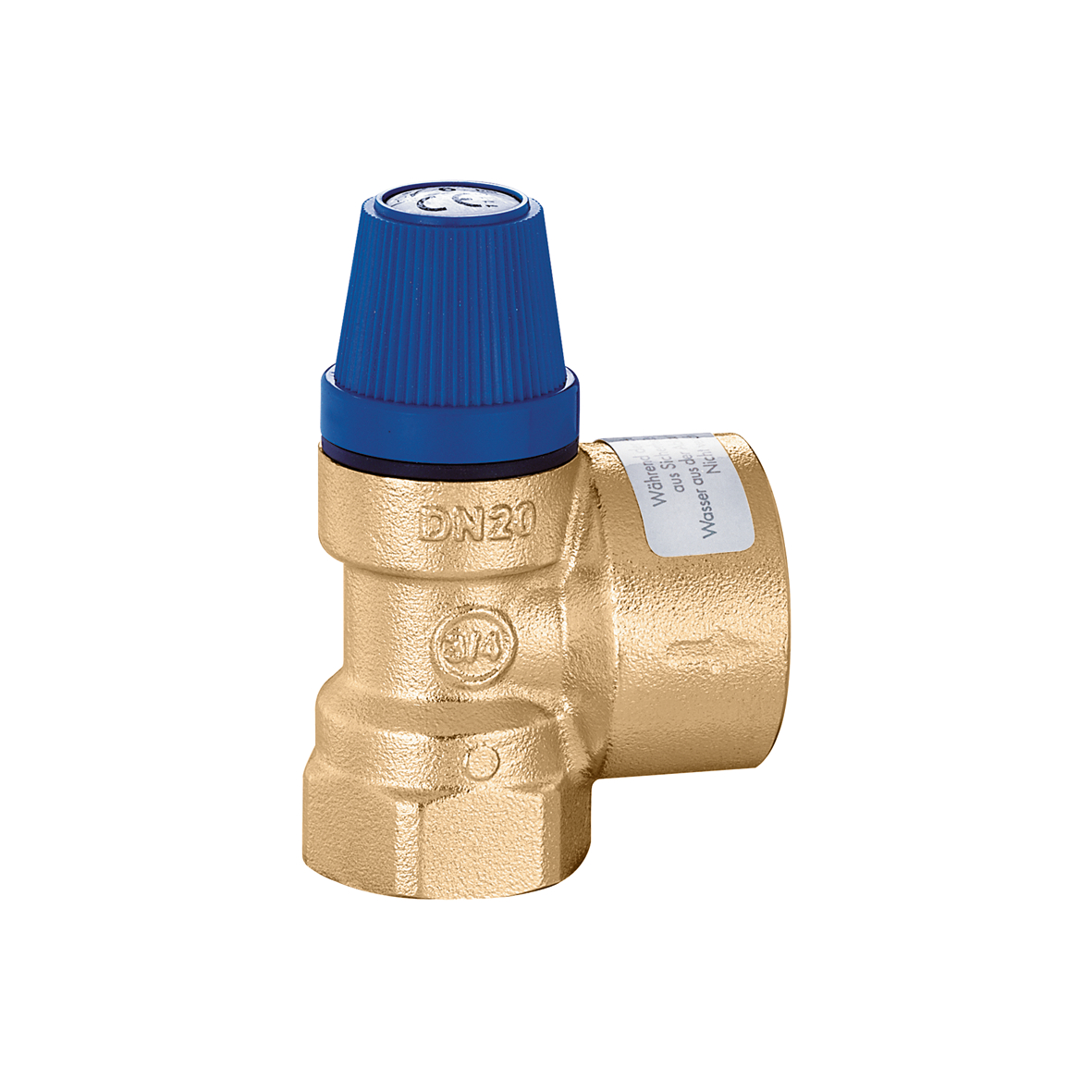

Safety relief valve for domestic water systems. Female connections.
Product Description
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %.
Technical data
Medium:
domestic water
Medium temperature range:
5–95 °C
Certifications
pdf
Drawings and specifications
| Part number | Connection | Drain connection | Note |
|---|---|---|---|
| 531440 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F |
- |
|
Pressure setting
4 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531440.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" (ISO 228-1) F. Drain connection: G 3/4" (ISO 228-1) F. Medium temperature range: 5–95 °C. Pressure setting: 4 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531460 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F |
(*) |
|
Pressure setting
6 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531460.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" (ISO 228-1) F. Drain connection: G 3/4" (ISO 228-1) F. Medium temperature range: 5–95 °C. Pressure setting: 6 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531480 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F |
(*) |
|
Pressure setting
8 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531480.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" (ISO 228-1) F. Drain connection: G 3/4" (ISO 228-1) F. Medium temperature range: 5–95 °C. Pressure setting: 8 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531410 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F |
(*) |
|
Pressure setting
10 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531410.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" (ISO 228-1) F. Drain connection: G 3/4" (ISO 228-1) F. Medium temperature range: 5–95 °C. Pressure setting: 10 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531540 | Rp 3/4" (EN 10226-1) F |
Rp 1" (EN 10226-1) F |
- |
|
Pressure setting
4 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531540.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: Rp 3/4" (EN 10226-1) F. Drain connection: Rp 1" (EN 10226-1) F. Medium temperature range: 5–95 °C. Pressure setting: 4 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531560 | Rp 3/4" (EN 10226-1) F |
Rp 1" (EN 10226-1) F |
- |
|
Pressure setting
6 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531560.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: Rp 3/4" (EN 10226-1) F. Drain connection: Rp 1" (EN 10226-1) F. Medium temperature range: 5–95 °C. Pressure setting: 6 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531580 | Rp 3/4" (EN 10226-1) F |
Rp 1" (EN 10226-1) F |
- |
|
Pressure setting
8 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531580.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: Rp 3/4" (EN 10226-1) F. Drain connection: Rp 1" (EN 10226-1) F. Medium temperature range: 5–95 °C. Pressure setting: 8 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 531510 | Rp 3/4" (EN 10226-1) F |
Rp 1" (EN 10226-1) F |
- |
|
Pressure setting
10 bar
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 531510.
Safety relief valve for domestic water systems. Female connections.
Note (*): with PZH certification
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: Rp 3/4" (EN 10226-1) F. Drain connection: Rp 1" (EN 10226-1) F. Medium temperature range: 5–95 °C. Pressure setting: 10 bar. Medium: domestic water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
