Series 4501

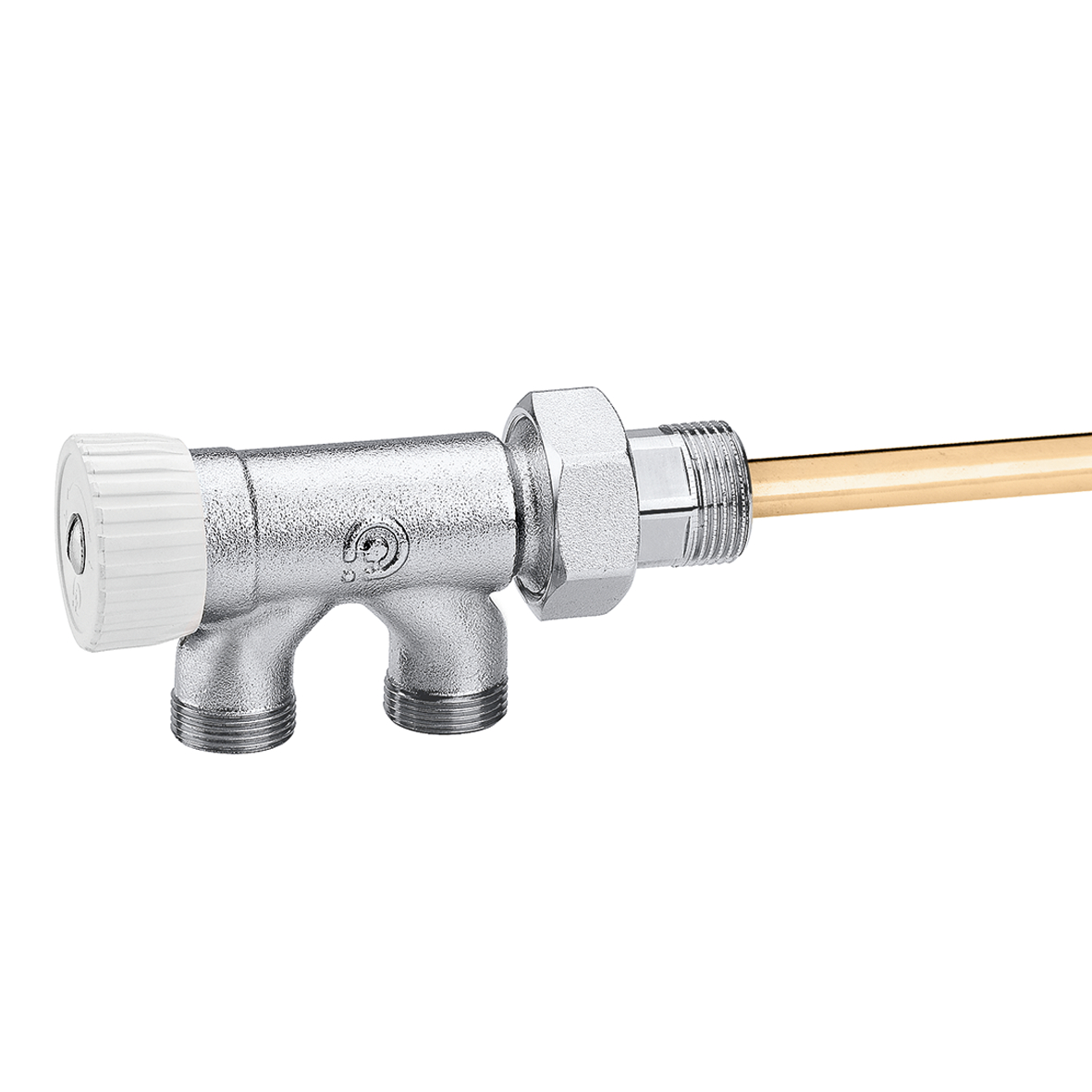

Radiator valve for one-pipe systems.

Go to
Download high resolution

Product Description

Radiator valve for one-pipe systems.
For copper, single and multilayer plastic pipes.
Without template and wall-covering plate.
Flow rate to the radiator: 100 %.

Technical data

Maximum working pressure: 10 bar
Medium temperature range: 5–100 °C
Main centre distance: 40 mm
Finish: chrome
Length probe: 30 cm
Material: brass

Drawings and specifications

Part number Radiator connection Pipe connection Kv
3D models
Tender text
Radiator valve for one-pipe systems. For copper, single and multilayer plastic pipes. Without template and wall-covering plate. Flow rate to the radiator: 100 %. radiator connection: G 1/2" A (ISO 228-1) M, inlet, Connection for Caleffi fittings. pipe connection: 23 p. 1,5, end outlet. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Main centre distance: 40 mm. Finish: chrome. Length probe: 30 cm. Kv: 3,20 m³/h. Material: brass.
3D models
Tender text
Radiator valve for one-pipe systems. For copper, single and multilayer plastic pipes. Without template and wall-covering plate. Flow rate to the radiator: 100 %. radiator connection: G 3/4" A (ISO 228-1) M, inlet, Connection for Caleffi fittings. pipe connection: 23 p. 1,5, end outlet. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Main centre distance: 40 mm. Finish: chrome. Length probe: 30 cm. Kv: 3,70 m³/h. Material: brass.
