Series 5335..HS

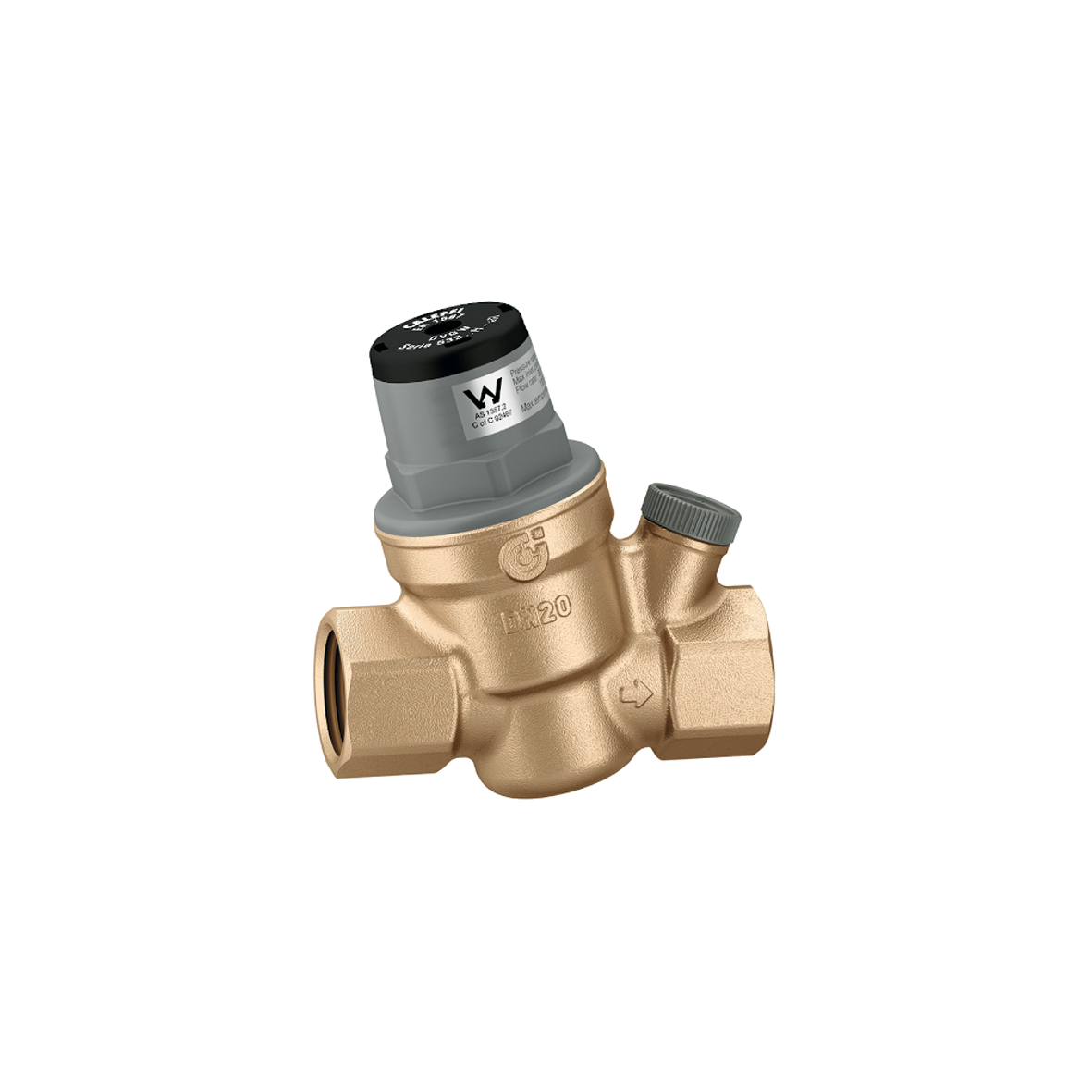

Inclined pressure reducing valve.

Go to
Download high resolution

Product Description

Inclined pressure reducing valve.
Replaceable cartridge and strainer.
For applications with higher pressure reduction ratio in hot and cold water distribution system.

Technical data

Maximum upstream pressure: 2000 kPa
Medium temperature range: 2–80 °C
Adjustment pressure range: 1–6 bar
Material: dezincification resistant brass DR "low lead"
Low Lead

Certifications

WMKA02467 - AS 1357_2 - Lead Free

Drawings and specifications

Part number Connection
2D drawings
Download
Download
3D models
Download
Download
Tender text
Inclined pressure reducing valve. Replaceable cartridge and strainer. For applications with higher pressure reduction ratio in hot and cold water distribution system. Connection: Rp 1/2" (EN 10226-1) F. Maximum upstream pressure: 2000 kPa. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–6 bar. Material: dezincification resistant brass DR "low lead".
SCIP code
2b65495a-bd0e-4743-a92a-5699dcb5f33c
2D drawings
Download
Download
3D models
Download
Download
Tender text
Inclined pressure reducing valve. Replaceable cartridge and strainer. For applications with higher pressure reduction ratio in hot and cold water distribution system. Connection: Rp 3/4" (EN 10226-1) F. Maximum upstream pressure: 2000 kPa. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–6 bar. Material: dezincification resistant brass DR "low lead".
SCIP code
3d3d7d67-dbf8-4749-a776-a62abadfba71
