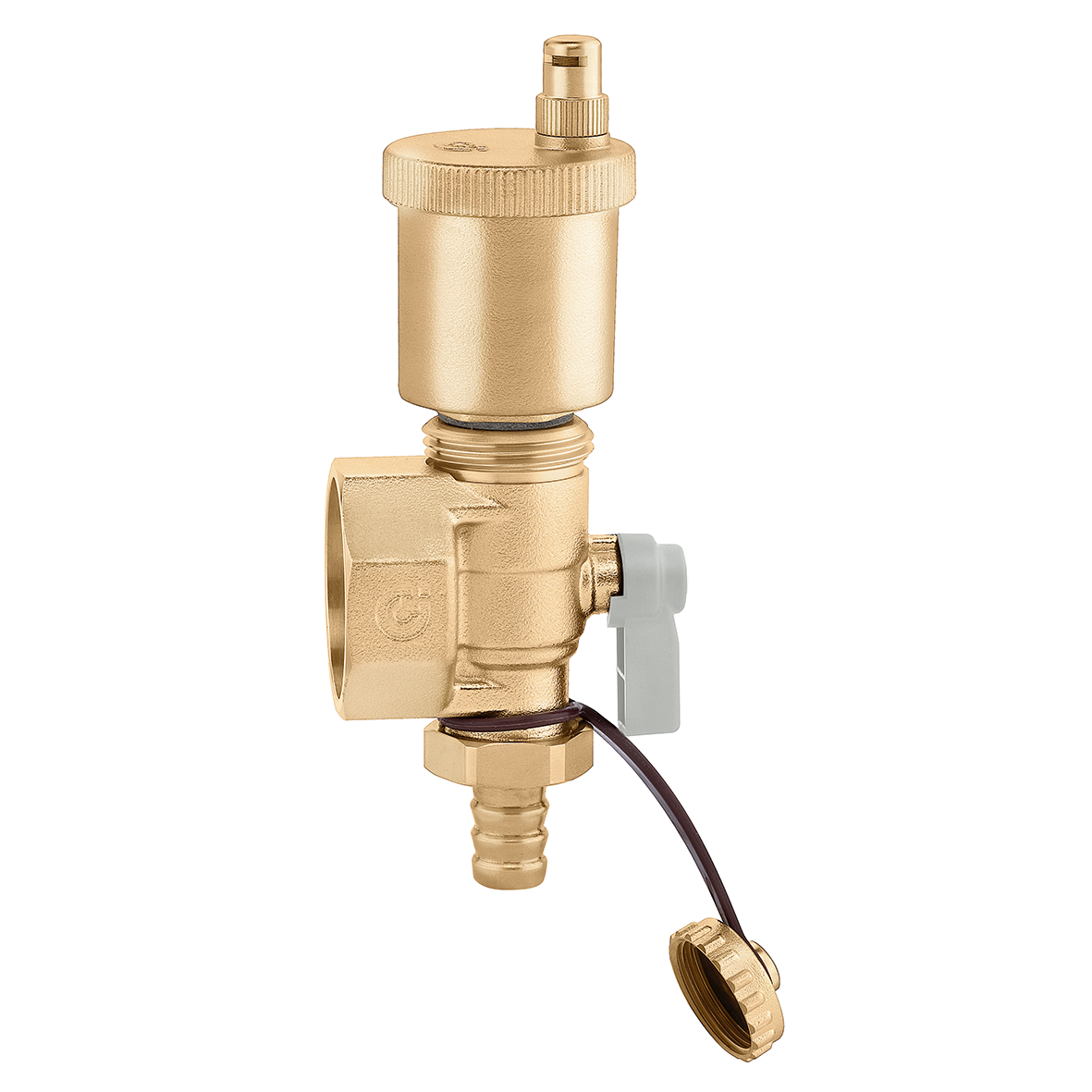

Flow end fitting.
Product Description
Flow end fitting.
Complete with:
- two-position ball valve;
- automatic air vent with hygroscopic cap;
- filler/drain hose connection.
Technical data
Maximum working pressure:
10 bar
Maximum air discharge pressure:
2,5 bar
Medium temperature range:
0–100 °C
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 599674 | G 1 1/4" (ISO 228-1) F double radial connection |
||
|
3D models
Tender text
Flow end fitting. Complete with:
- two-position ball valve;
- automatic air vent with hygroscopic cap;
- filler/drain hose connection.
Connection: G 1 1/4" (ISO 228-1) F, double radial connection. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–100 °C.
SCIP code
cf47d84e-a168-4f58-ac48-615d922dac88
|
|||
