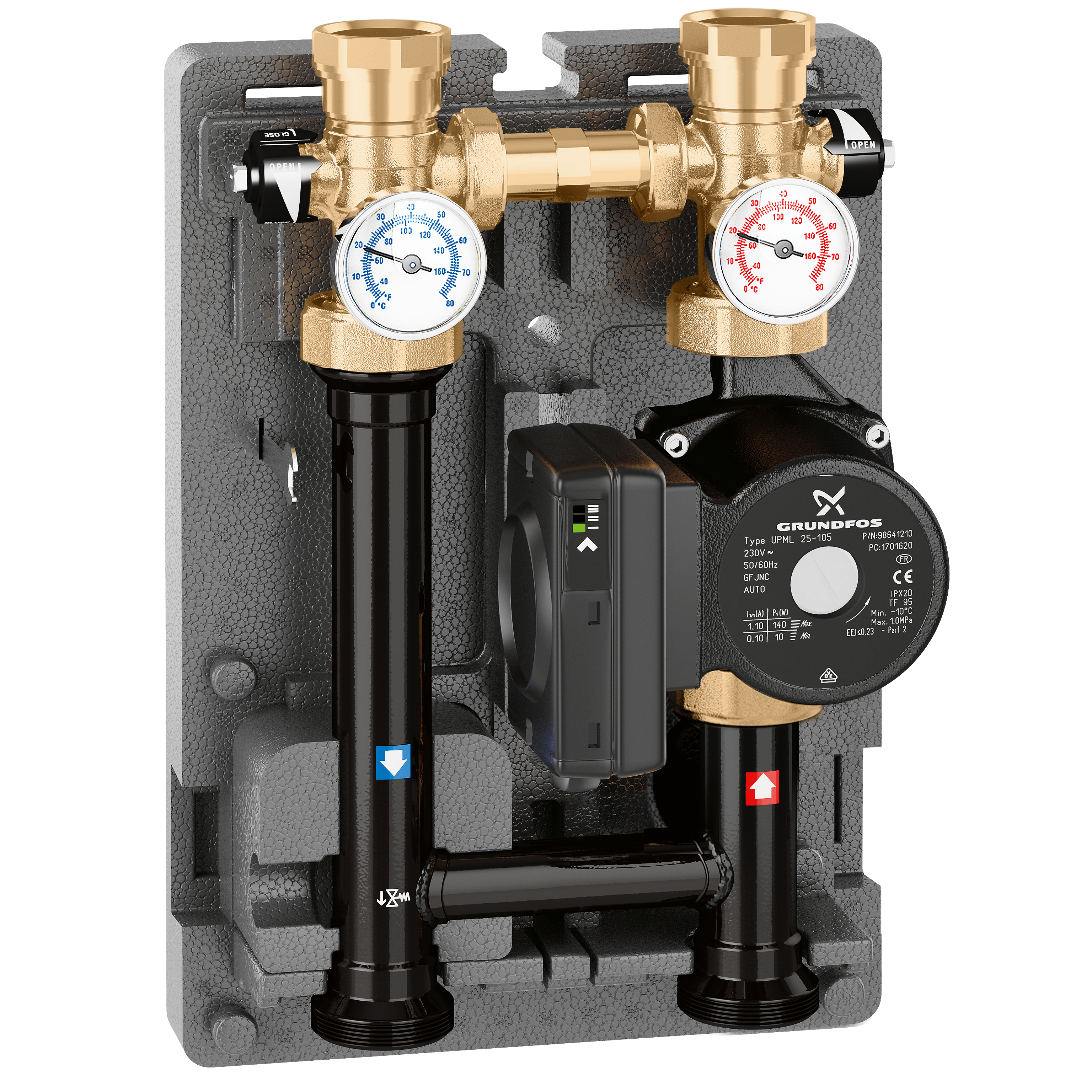

Direct supply unit DN 32, for heating systems.
Product Description
Direct supply unit DN 32, for heating systems.
Right - left convertible.
With insulation.
Technical data
Type of pump:
UPML 25-105
Main centre distance:
125 mm
Electric supply:
230 V AC
Medium temperature range:
5–100 °C
Maximum working pressure:
10 bar
Certifications
pdf
Drawings and specifications
| Part number | System side connection | Boiler side connection | Flow rate with available head 4 m w.g. | Actions |
|---|---|---|---|---|
| 165601UPM | G 1 1/4" (ISO 228-1) F |
G 1 1/2" A (ISO 228-1) M |
3,4 m³/h | |
|
2D drawings
Tender text
CALEFFI, 165601UPM.
Direct supply unit DN 32, for heating systems.
With insulation.
Right - left convertible. System side connection: G 1 1/4" (ISO 228-1) F. Boiler side connection: G 1 1/2" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Electric supply: 230 V AC. Main centre distance: 125 mm. Flow rate with available head 4 m w.g.: 3,4 m³/h. Type of pump: UPML 25-105.
SCIP code
01d65c76-9db4-4eb3-8a0d-36b0ea87eb90
|
||||
dwg
dxf
igs
stp
bim
