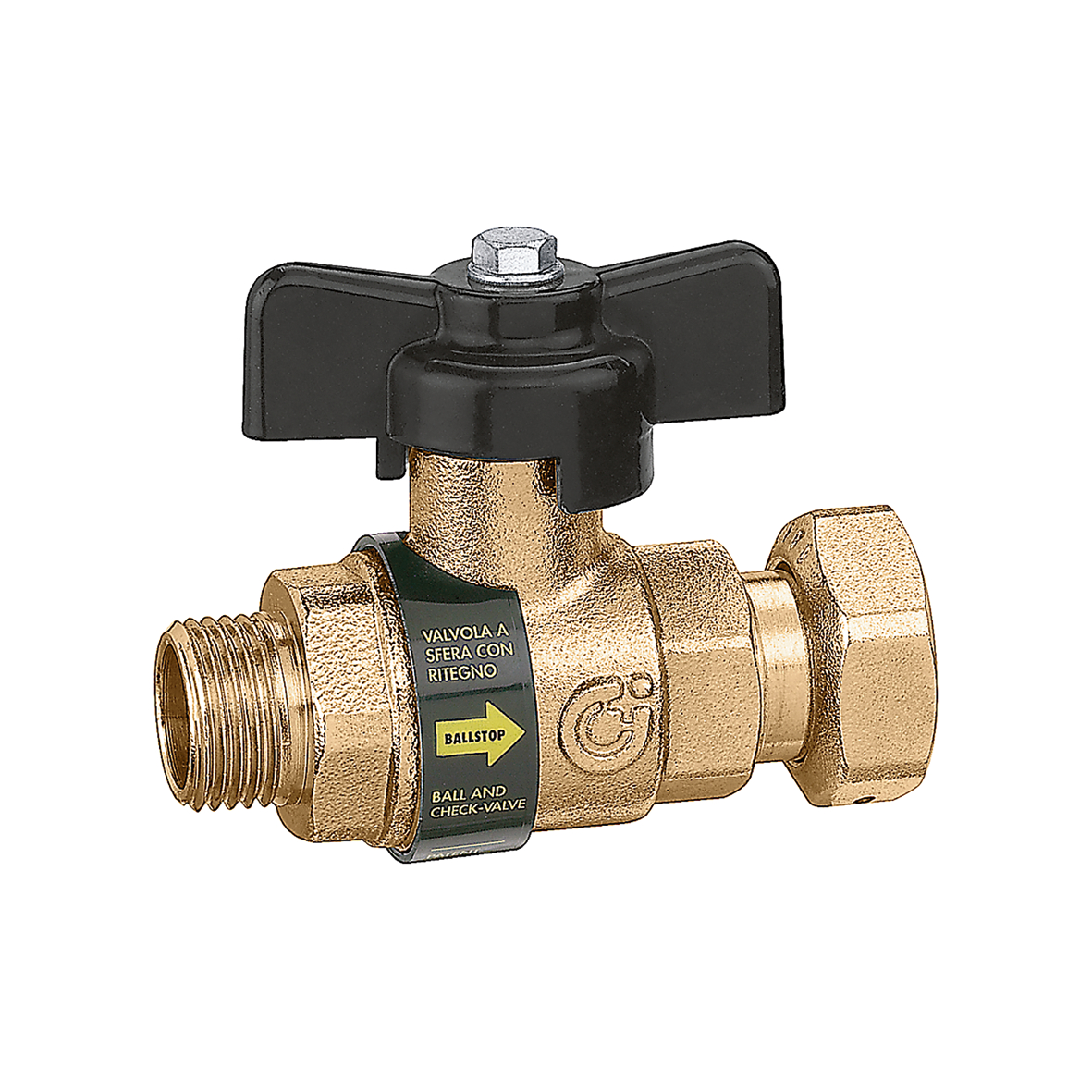

BALLSTOP, Ball valve with built-in check valve, male - captive nut connection.
Product Description
Ball valve with built-in check valve, male - captive nut connection.
Drilled anti-tamper safety nut, butterfly handle.
Technical data
Maximum working pressure:
16 bar
Medium temperature range:
5–90 °C
Material:
brass
Certifications
pdf
Drawings and specifications
| Part number | Inlet connection | Outlet connection | |
|---|---|---|---|
| 334400 | G 1/2" A (ISO 228-1) M |
G 3/4" (ISO 228-1) F captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Ball valve with built-in check valve, male - captive nut connection.
Drilled anti-tamper safety nut, butterfly handle. Inlet connection: G 1/2" A (ISO 228-1) M. Outlet connection: G 3/4" (ISO 228-1) F, captive nut. Maximum working pressure: 16 bar. Medium temperature range: 5–90 °C. Material: brass.
SCIP code
ae1db634-19b5-4e19-b200-0b071f1e93c8
|
|||
| 334500 | G 3/4" A (ISO 228-1) M |
G 3/4" (ISO 228-1) F captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Ball valve with built-in check valve, male - captive nut connection.
Drilled anti-tamper safety nut, butterfly handle. Inlet connection: G 3/4" A (ISO 228-1) M. Outlet connection: G 3/4" (ISO 228-1) F, captive nut. Maximum working pressure: 16 bar. Medium temperature range: 5–90 °C. Material: brass.
SCIP code
93d43b75-8328-4b27-8c4c-3aaae092a436
|
|||
igs
stp
bim
