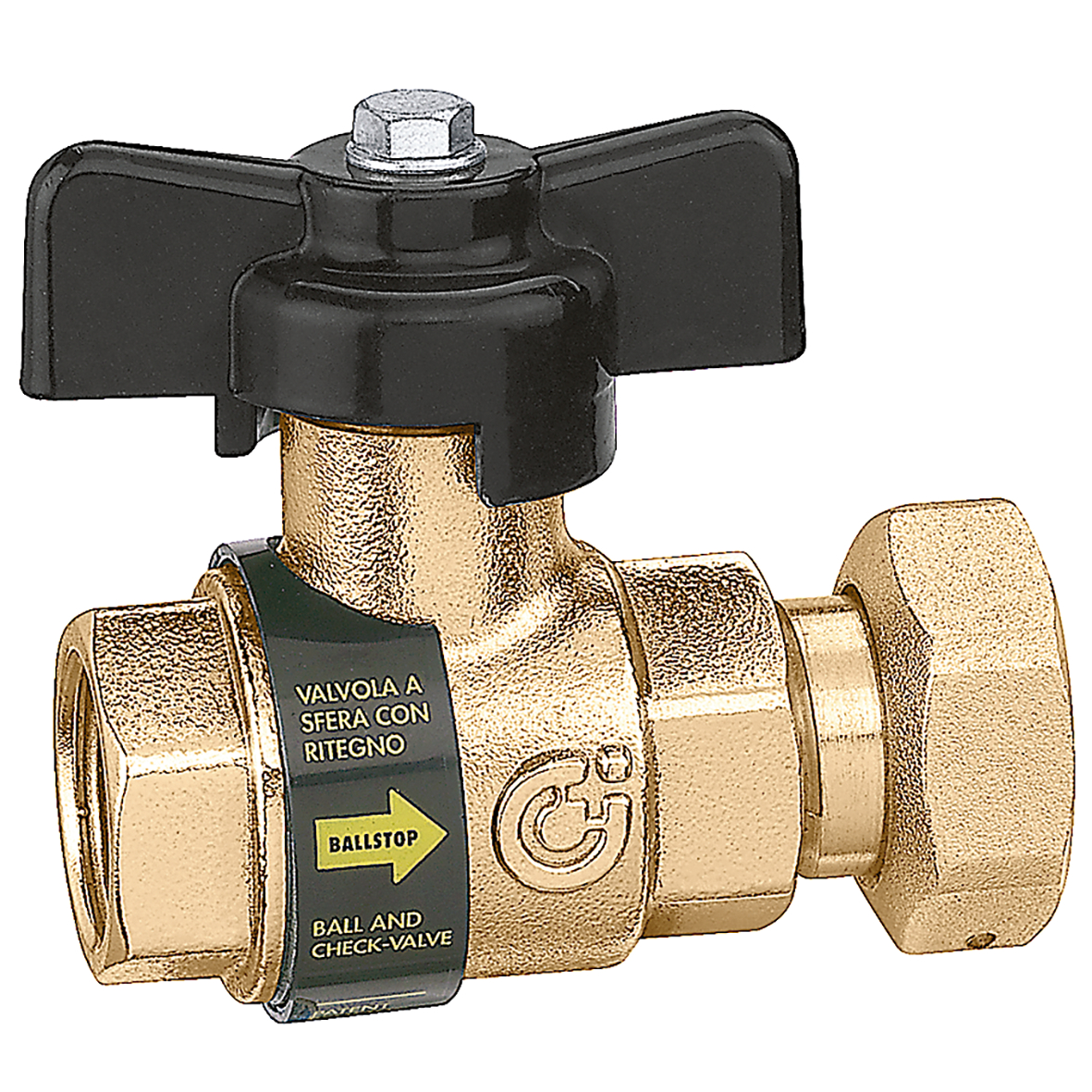

BALLSTOP, Ball valve with built-in check valve, female - captive nut connection.
Product Description
Ball valve with built-in check valve, female - captive nut connection.
Drilled anti-tamper safety nut, butterfly handle.
Technical data
Material:
brass
Medium temperature range:
5–90 °C
Maximum working pressure:
16 bar
Certifications
pdf
Drawings and specifications
| Part number | Inlet connection | Outlet connection | Actions |
|---|---|---|---|
| 333400 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 333400, BALLSTOP.
Ball valve with built-in check valve, female - captive nut connection.
Drilled anti-tamper safety nut, butterfly handle. Inlet connection: G 1/2" (ISO 228-1) F. Outlet connection: G 3/4" (ISO 228-1) F, captive nut. Maximum working pressure: 16 bar. Medium temperature range: 5–90 °C. Material: brass.
SCIP code
433e4e68-0428-4d4d-ac72-787419322259
|
|||
| 333500 | G 3/4" (ISO 228-1) F |
G 3/4" (ISO 228-1) F captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 333500, BALLSTOP.
Ball valve with built-in check valve, female - captive nut connection.
Drilled anti-tamper safety nut, butterfly handle. Inlet connection: G 3/4" (ISO 228-1) F. Outlet connection: G 3/4" (ISO 228-1) F, captive nut. Maximum working pressure: 16 bar. Medium temperature range: 5–90 °C. Material: brass.
SCIP code
e676a4c3-8665-49e4-af25-57e739b0a9f3
|
|||
