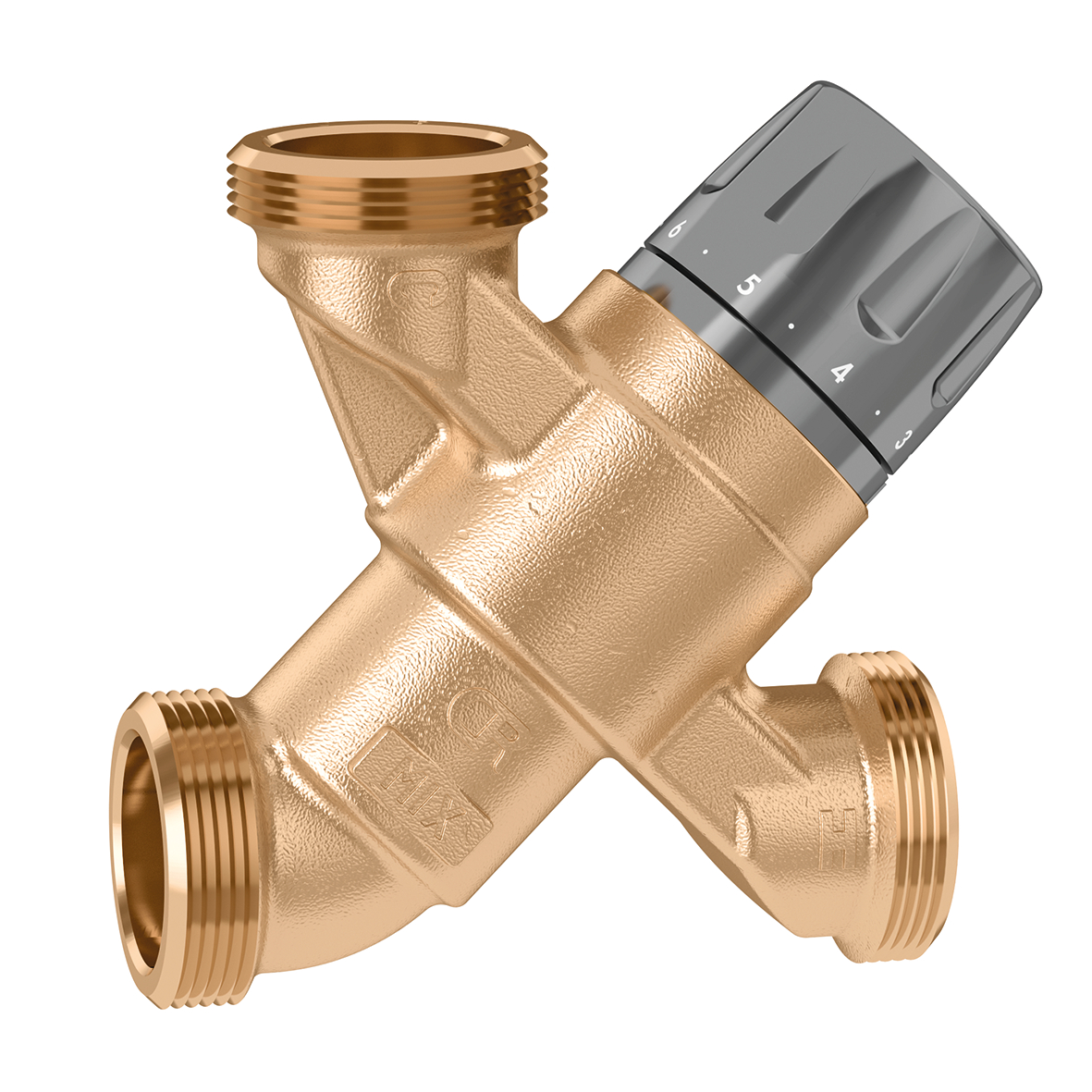

Adjustable thermostatic mixing valve with knob.
Product Description
Adjustable thermostatic mixing valve with knob.
For radiant panel systems.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
2–85 °C
Material:
dezincification resistant brass DR
pdf
Drawings and specifications
| Part number | Connection | Adjustment temperature range | DN |
|---|---|---|---|
| 520251 | G 3/4" A (ISO 228-1) M |
20–43 °C | DN 20 (body) |
|
Kv
1,4 m³/h
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Adjustable thermostatic mixing valve with knob. For radiant panel systems. Connection: G 3/4" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 2–85 °C. Adjustment temperature range: 20–43 °C. DN: DN 20 (body). Kv: 1,4 m³/h. Material: dezincification resistant brass DR.
SCIP code
6b17a7f3-9bc8-464f-a5f3-e5d3443f00af
|
|||
| 520261 | G 1" A (ISO 228-1) M |
20–43 °C | DN 25 (body) |
|
Kv
4 m³/h
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Adjustable thermostatic mixing valve with knob. For radiant panel systems. Connection: G 1" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 2–85 °C. Adjustment temperature range: 20–43 °C. DN: DN 25 (body). Kv: 4 m³/h. Material: dezincification resistant brass DR.
SCIP code
2447a52d-fabb-4611-b39e-e9ec87b33d1a
|
|||
igs
stp
bim
