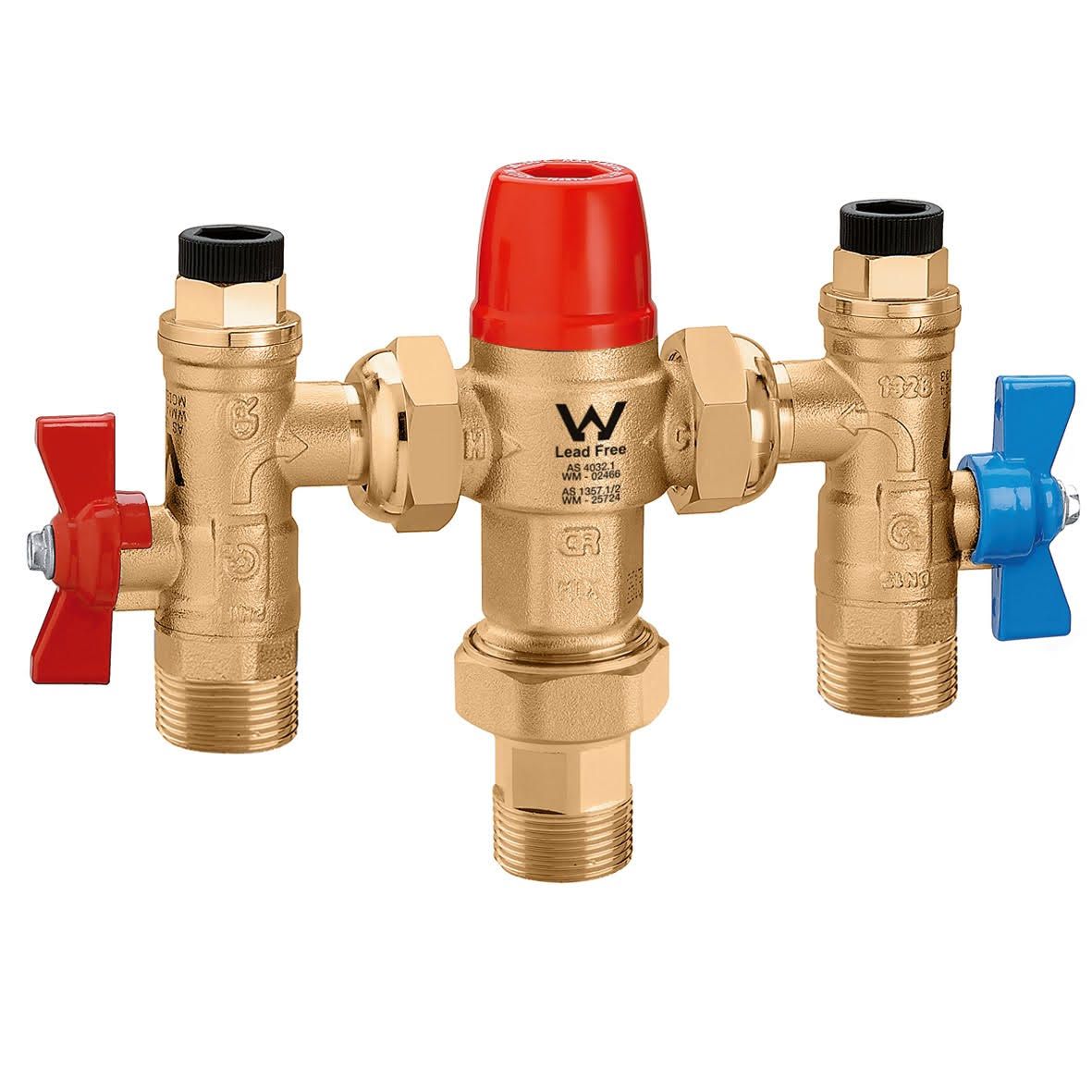

Adjustable thermostatic mixing valve with isolating valves, check valves and strainers.
Product Description
Adjustable thermostatic mixing valve with isolating valves, check valves and strainers.
High thermal performance device with anti-scald safety function.
Certified to AS 4032.1.
Technical data
Maximum working pressure:
14 bar
Medium temperature range:
2–85 °C
Material:
dezincification resistant brass DR "low lead"
Certifications
pdf
Drawings and specifications
| Part number | Connection | Adjustment temperature range | Kv |
|---|---|---|---|
| 521312TMX AUS | G 1/2" A (ISO 228-1) M |
30–50 °C | 1,3 m³/h |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Adjustable thermostatic mixing valve with isolating valves, check valves and strainers. High thermal performance device with anti-scald safety function. Certified to AS 4032.1. Connection: G 1/2" A (ISO 228-1) M. Maximum working pressure: 14 bar. Medium temperature range: 2–85 °C. Adjustment temperature range: 30–50 °C. Kv: 1,3 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
3f47b2ef-f026-4bb8-910d-b9cbdb306d72
|
|||
| 521319TMX AUS | G 3/4" A (ISO 228-1) M |
30–50 °C | 1,4 m³/h |
|
3D models
Tender text
Adjustable thermostatic mixing valve with isolating valves, check valves and strainers. High thermal performance device with anti-scald safety function. Certified to AS 4032.1. Connection: G 3/4" A (ISO 228-1) M. Maximum working pressure: 14 bar. Medium temperature range: 2–85 °C. Adjustment temperature range: 30–50 °C. Kv: 1,4 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
f16f7d6e-5324-4930-b507-b1b208d3c6aa
|
|||
igs
stp
bim
