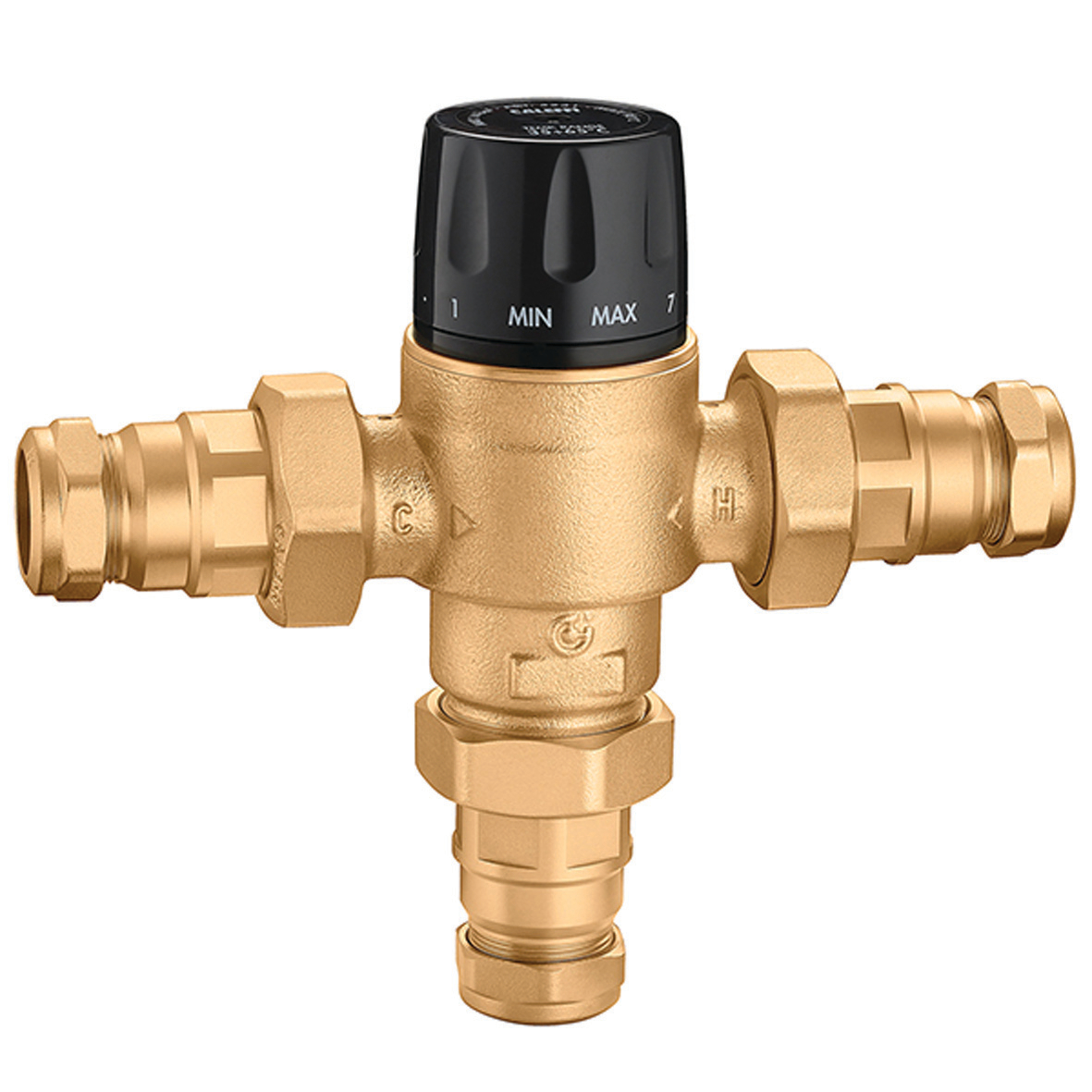

Adjustable thermostatic mixing valve, for centralised systems.
Product Description
Adjustable thermostatic mixing valve, for centralised systems.
With check valves and compression ends.
Antiscale inner regulator in technopolymer.
Technical data
Material:
dezincification resistant brass DR
Maximum inlet temperature:
90 °C
Maximum working pressure:
14 bar
Certifications
pdf
Drawings and specifications
| Part number | Connection | Adjustment temperature range | Kv |
|---|---|---|---|
| 523162 | Ø 28 |
35–65 °C | 7,6 m³/h |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 523162.
Adjustable thermostatic mixing valve, for centralised systems. With check valves and compression ends.
Antiscale inner regulator in technopolymer. Connection: Ø 28. Maximum working pressure: 14 bar. Adjustment temperature range: 35–65 °C. Maximum inlet temperature: 90 °C. Kv: 7,6 m³/h. Material: dezincification resistant brass DR.
SCIP code
7358234f-b3ba-41aa-aafb-ecd625819474
|
|||
