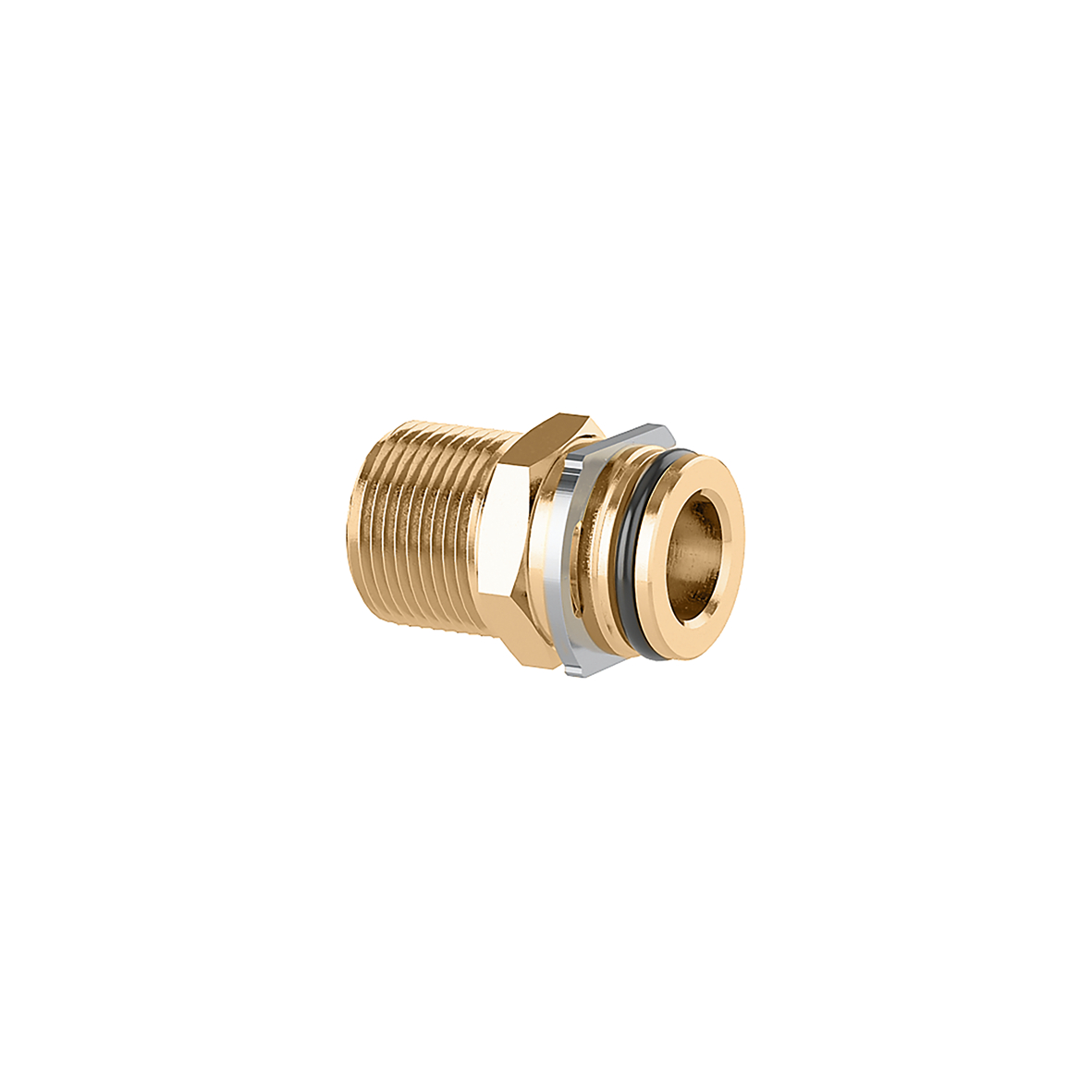

Adapter with fixing clip.
Product Description
Adapter with fixing clip.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
5–90 °C
Material:
dezincification resistant brass DR "low lead"
Download
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 359003 | 23 p. 1,5 |
- | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Adapter with fixing clip.
Connection: 23 p. 1,5, Connection for Caleffi fittings. Maximum working pressure: 10 bar. Medium temperature range: 5–90 °C. Material: dezincification resistant brass DR "low lead".
SCIP code
96a6e147-495e-4b76-8ac8-0bff511aaf78
|
|||
| 359004 | G 1/2" A (ISO 228-1) M |
Ø 13 flat seat | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Adapter with fixing clip.
Connection: G 1/2" A (ISO 228-1) M, Flat seat. Ø 13. Maximum working pressure: 10 bar. Medium temperature range: 5–90 °C. Material: dezincification resistant brass DR "low lead".
SCIP code
96a6e147-495e-4b76-8ac8-0bff511aaf78
|
|||
| 359005 | G 3/4" A (ISO 228-1) M |
Ø 18 flat seat | |
|
3D models
Tender text
Adapter with fixing clip.
Connection: G 3/4" A (ISO 228-1) M, Flat seat. Ø 18. Maximum working pressure: 10 bar. Medium temperature range: 5–90 °C. Material: dezincification resistant brass DR "low lead".
SCIP code
96a6e147-495e-4b76-8ac8-0bff511aaf78
|
|||
| 359006 | G 3/4" A (ISO 228-1) M |
Ø 18 Euroconus | |
|
3D models
Tender text
Adapter with fixing clip.
Connection: G 3/4" A (ISO 228-1) M, Connection for Caleffi fittings. Ø 18. Maximum working pressure: 10 bar. Medium temperature range: 5–90 °C. Material: dezincification resistant brass DR "low lead".
SCIP code
96a6e147-495e-4b76-8ac8-0bff511aaf78
|
|||
