Series 520

TankMixer™ Compact, Thermostatic mixing valve kit for space limited applications

Go to
Download high resolution

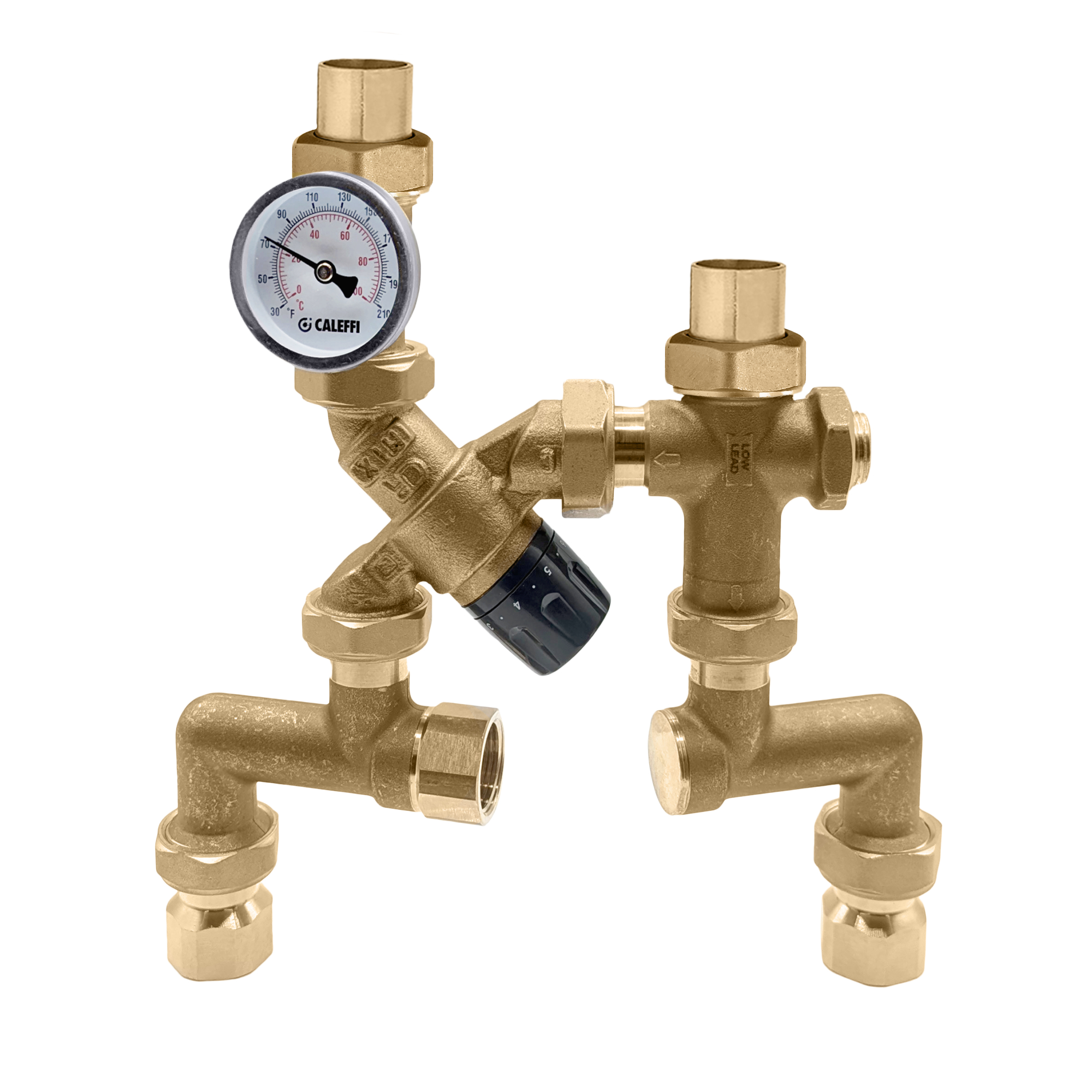

Product Description

Thermostatic mixing valve kit for space limited applications
Designed for heat pumps, electric water heaters, or tankless water heaters
Complete with:

  • 520 AngleMix Thermostatic Mixing Valve with outlet temperature gauge
  • Cold Water Supply Cross including:
    • 1/2" FNPT Port for Recirculation
    • Integral Check Valve
  • Brass Adapters to connect to water heating appliance, including:
    • 3/4" FNPT port for expansion device or pressure relief valve
  • Posi-Stop union technology

Technical data

Maximum static operating pressure: 150 psi
Maximum dynamic operating pressure: 75 psi
Adjustment temperature range: 95 – 150 °F
Maximum inlet temperature: 195 °F

Certifications

ES LOW LEAD
ASSE1017
Buy American Act
California HSC 116875
Maryland HB372
United States S.3874
Vermont Act 193
IPC
IRC
NPC
UPC
CSA B125.3
NSF/ANSI/CAN 372

Drawings and specifications

Part number Connection Cv
3D models
Tender text
Thermostatic mixing valve kit for space limited applications Designed for heat pumps, electric water heaters, or tankless water heaters Complete with: 520 AngleMix Thermostatic Mixing Valve with outlet temperature gauge Cold Water Supply Cross including: 1/2" FNPT Port for Recirculation Integral Check Valve Brass Adapters to connect to water heating appliance, including: 3/4" FNPT port for expansion device or pressure relief valve Posi-Stop union technology connection: 3/4", sweat union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.
3D models
Tender text
Thermostatic mixing valve kit for space limited applications Designed for heat pumps, electric water heaters, or tankless water heaters Complete with: 520 AngleMix Thermostatic Mixing Valve with outlet temperature gauge Cold Water Supply Cross including: 1/2" FNPT Port for Recirculation Integral Check Valve Brass Adapters to connect to water heating appliance, including: 3/4" FNPT port for expansion device or pressure relief valve Posi-Stop union technology connection: 3/4", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.
3D models
Tender text
Thermostatic mixing valve kit for space limited applications Designed for heat pumps, electric water heaters, or tankless water heaters Complete with: 520 AngleMix Thermostatic Mixing Valve with outlet temperature gauge Cold Water Supply Cross including: 1/2" FNPT Port for Recirculation Integral Check Valve Brass Adapters to connect to water heating appliance, including: 3/4" FNPT port for expansion device or pressure relief valve Posi-Stop union technology connection: 3/4" MNPT, union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.
