TankMixer™, Thermostatic mixing valve kit
Product Description

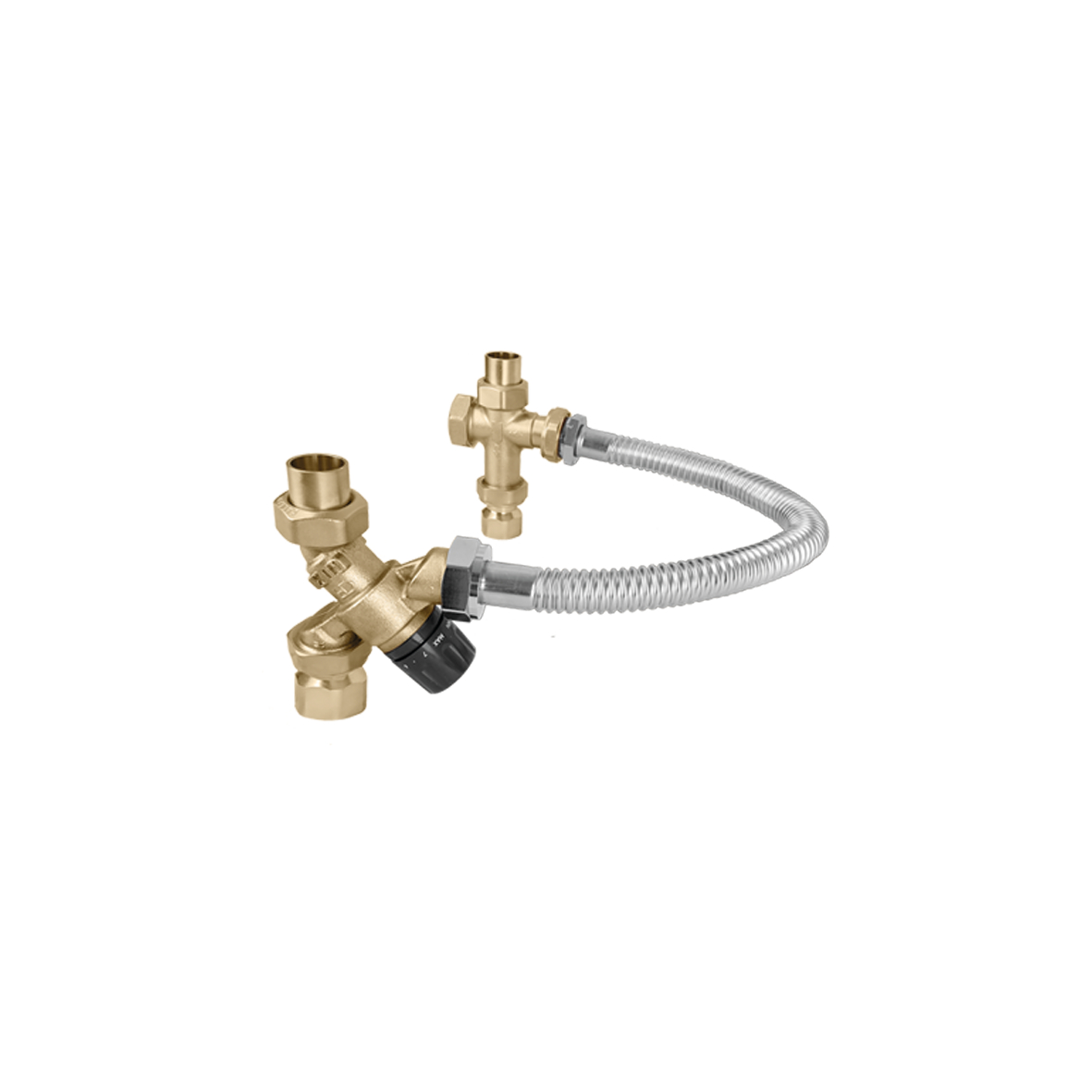

Thermostatic mixing valve kit
Designed for typical tank type water heaters.
Complete with:
- 520 AngleMix Thermostatic Mixing Valve
- Cold Water Supply Cross including:
- 1/2" FNPT Port for Recirculation
- Integral Check Valve
- Flexible hose to connect mixing valve and cross
- Posi-Stop union technology
Technical data
Maximum static operating pressure:
150 psi
Adjustment temperature range:
95 – 150 °F
Maximum inlet temperature:
195 °F
Flow rate working range:
0.5 – 9 gpm
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 520500AX | 3/4" MNPT union |
System connections | 2 |
|
3D models
Tender text
Thermostatic mixing valve kit
Designed for typical tank type water heaters.
Complete with:
520 AngleMix Thermostatic Mixing Valve
Cold Water Supply Cross including:
1/2" FNPT Port for Recirculation
Integral Check Valve
Flexible hose to connect mixing valve and cross
Posi-Stop union technology
connection: 3/4" MNPT, union. Maximum static operating pressure: 150 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.
|
|||
| 520506AX | 3/4" press union |
System connections | 2 |
|
3D models
Tender text
Thermostatic mixing valve kit
Designed for typical tank type water heaters.
Complete with:
520 AngleMix Thermostatic Mixing Valve
Cold Water Supply Cross including:
1/2" FNPT Port for Recirculation
Integral Check Valve
Flexible hose to connect mixing valve and cross
Posi-Stop union technology
connection: 3/4", press union. Maximum static operating pressure: 150 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.
|
|||
| 520509AX | 3/4" sweat union |
System connections | 2 |
|
3D models
Tender text
Thermostatic mixing valve kit
Designed for typical tank type water heaters.
Complete with:
520 AngleMix Thermostatic Mixing Valve
Cold Water Supply Cross including:
1/2" FNPT Port for Recirculation
Integral Check Valve
Flexible hose to connect mixing valve and cross
Posi-Stop union technology
connection: 3/4", sweat union. Maximum static operating pressure: 150 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.
|
|||
