Series 520

TankMixer™ Combi, Thermostatic mixing valve kit with service valves

Go to
Download high resolution

Product Description

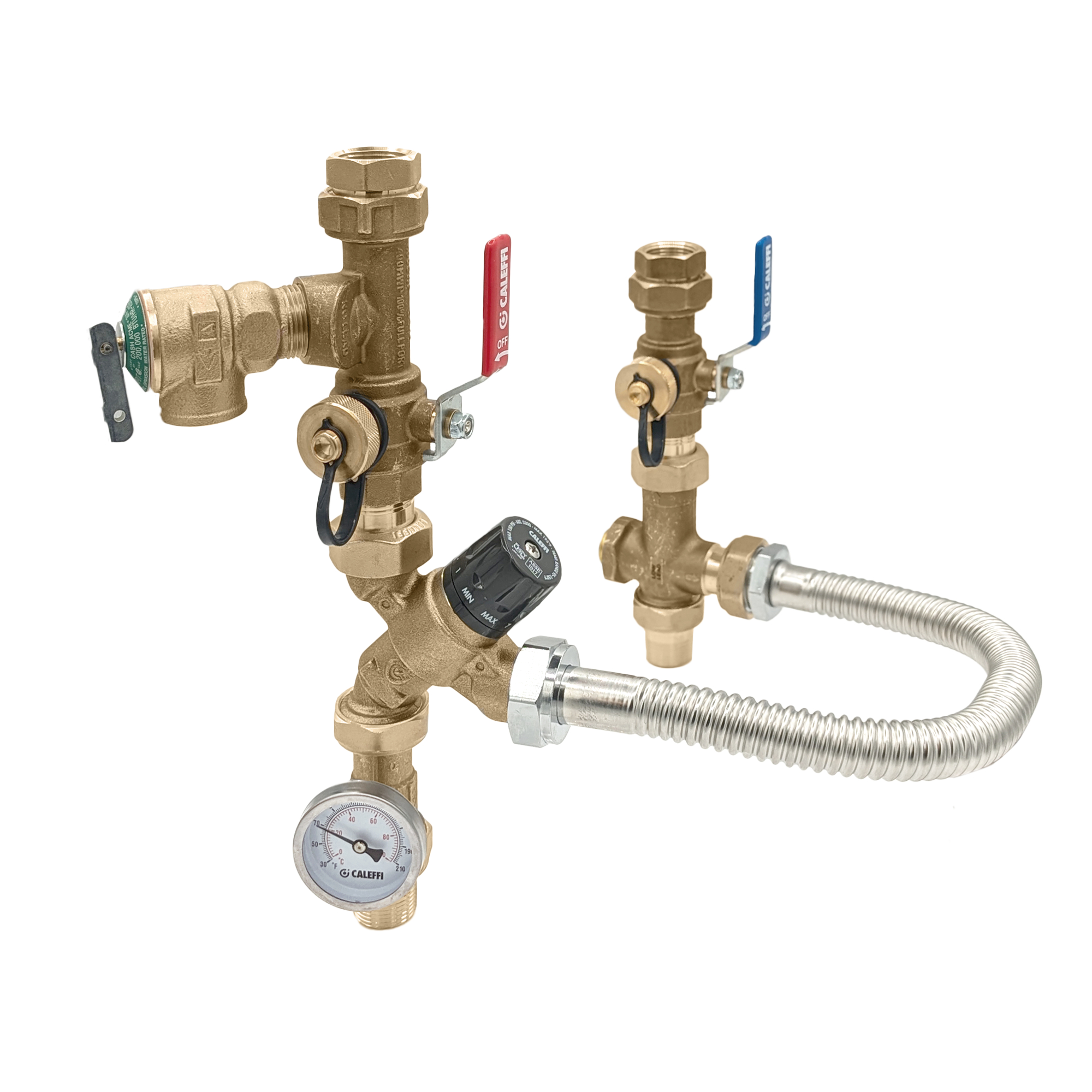

Thermostatic mixing valve kit with service valves
Designed for combi boilers and water heating appliances requiring service
Point-of-distribution applications - ASSE 1017

Complete with:

  • 520 AngleMix™ thermostatic mixing valve
  • Mixed outlet temperature gauge
  • Flexible stainless steel hose for valve-to-cross connection
  • Cold water supply cross fitting with check valve and recirc port
  • KIT290503A service valve kit with pressure relief valve


Connection Options:

  • Size: ¾"
  • Connection Types: Press, Sweat, NPT Male
  • Connection to Water Heater: NPT Female

Technical data

Cv: 2.0
Maximum working pressure: 150 psi
Maximum inlet temperature: 195 °F
Temperature adjustment range: 95 – 150 °F
Low Lead

Certifications

ASSE1017
CSA 125.3 Compliant
NSF/ANSI/CAN 372
ES LOW LEAD

Download

pdf
Technical brochure
Download
pdf
Instruction sheet
Download
pdf
Submittal data
Download

Drawings and specifications

Part number System Side Connection
KIT520510AX 3/4" NPT male
union
3D models
Tender text
CALEFFI, KIT520510AX, TankMixer™ Combi. Thermostatic mixing valve kit with service valves Designed for combi boilers and water heating appliances requiring service Point-of-distribution applications - ASSE 1017 Complete with: 520 AngleMix™ thermostatic mixing valve Mixed outlet temperature gauge Flexible stainless steel hose for valve-to-cross connection Cold water supply cross fitting with check valve and recirc port KIT290503A service valve kit with pressure relief valve   Connection Options: Size: ¾" Connection Types: Press, Sweat, NPT Male Connection to Water Heater: NPT Female System Side Connection: 3/4" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
KIT520516AX 3/4" Press
union
3D models
Tender text
CALEFFI, KIT520516AX, TankMixer™ Combi. Thermostatic mixing valve kit with service valves Designed for combi boilers and water heating appliances requiring service Point-of-distribution applications - ASSE 1017 Complete with: 520 AngleMix™ thermostatic mixing valve Mixed outlet temperature gauge Flexible stainless steel hose for valve-to-cross connection Cold water supply cross fitting with check valve and recirc port KIT290503A service valve kit with pressure relief valve   Connection Options: Size: ¾" Connection Types: Press, Sweat, NPT Male Connection to Water Heater: NPT Female System Side Connection: 3/4" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
KIT520519AX 3/4" Sweat
union
3D models
Tender text
CALEFFI, KIT520519AX, TankMixer™ Combi. Thermostatic mixing valve kit with service valves Designed for combi boilers and water heating appliances requiring service Point-of-distribution applications - ASSE 1017 Complete with: 520 AngleMix™ thermostatic mixing valve Mixed outlet temperature gauge Flexible stainless steel hose for valve-to-cross connection Cold water supply cross fitting with check valve and recirc port KIT290503A service valve kit with pressure relief valve   Connection Options: Size: ¾" Connection Types: Press, Sweat, NPT Male Connection to Water Heater: NPT Female System Side Connection: 3/4" Sweat, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
