Series 520

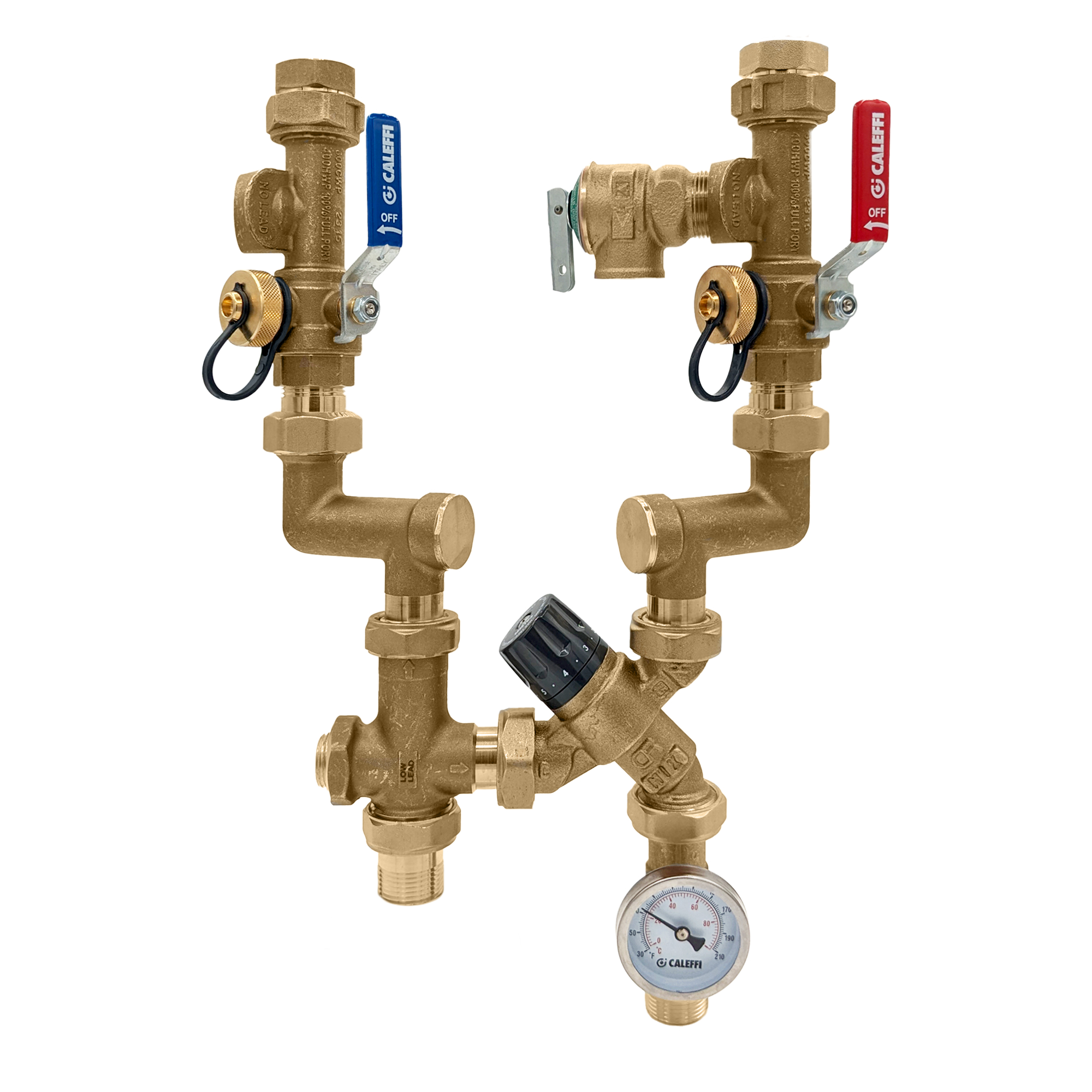

TankMixer™ Compact Combi, Thermostatic mixing valve kit with service valves

Go to
Download high resolution

Product Description

Thermostatic mixing valve kit with service valves
Designed for combi boilers with limited installation space
Point-of-distribution applications - ASSE 1017

Complete with:

  • 520 AngleMix™ thermostatic mixing valve
  • Mixed outlet temperature gauge
  • Cold water supply cross fitting with check valve and recirc port
  • Offset fittings with ¾” NPT port for thermal expansion device
  • KIT290504A service valve kit with pressure relief valve


Connection Options:

  • Size: ¾"
  • Connection Types: Press, Sweat, NPT Male
  • Connection to Water Heater: NPT Female

Technical data

Cv: 2.0
Maximum working pressure: 150 psi
Maximum inlet temperature: 195 °F
Temperature adjustment range: 95 – 150 °F
Low Lead

Certifications

ASSE1017
CSA 125.3 Compliant
NSF/ANSI/CAN 372
ES LOW LEAD

Download

pdf
Technical brochure
Download
pdf
Instruction sheet
Download
pdf
Submittal data
Download

Drawings and specifications

Part number System Side Connection
KIT520510AP 3/4" NPT male
union
3D models
Tender text
CALEFFI, KIT520510AP, TankMixer™ Compact Combi. Thermostatic mixing valve kit with service valves Designed for combi boilers with limited installation space Point-of-distribution applications - ASSE 1017   Complete with: 520 AngleMix™ thermostatic mixing valve Mixed outlet temperature gauge  Cold water supply cross fitting with check valve and recirc port Offset fittings with ¾” NPT port for thermal expansion device KIT290504A service valve kit with pressure relief valve   Connection Options: Size: ¾" Connection Types: Press, Sweat, NPT Male Connection to Water Heater: NPT Female System Side Connection: 3/4" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
KIT520516AP 3/4" Press
union
3D models
Tender text
CALEFFI, KIT520516AP, TankMixer™ Compact Combi. Thermostatic mixing valve kit with service valves Designed for combi boilers with limited installation space Point-of-distribution applications - ASSE 1017   Complete with: 520 AngleMix™ thermostatic mixing valve Mixed outlet temperature gauge  Cold water supply cross fitting with check valve and recirc port Offset fittings with ¾” NPT port for thermal expansion device KIT290504A service valve kit with pressure relief valve   Connection Options: Size: ¾" Connection Types: Press, Sweat, NPT Male Connection to Water Heater: NPT Female System Side Connection: 3/4" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
KIT520519AP 3/4" Sweat
union
3D models
Tender text
CALEFFI, KIT520519AP, TankMixer™ Compact Combi. Thermostatic mixing valve kit with service valves Designed for combi boilers with limited installation space Point-of-distribution applications - ASSE 1017   Complete with: 520 AngleMix™ thermostatic mixing valve Mixed outlet temperature gauge  Cold water supply cross fitting with check valve and recirc port Offset fittings with ¾” NPT port for thermal expansion device KIT290504A service valve kit with pressure relief valve   Connection Options: Size: ¾" Connection Types: Press, Sweat, NPT Male Connection to Water Heater: NPT Female System Side Connection: 3/4" Sweat, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
