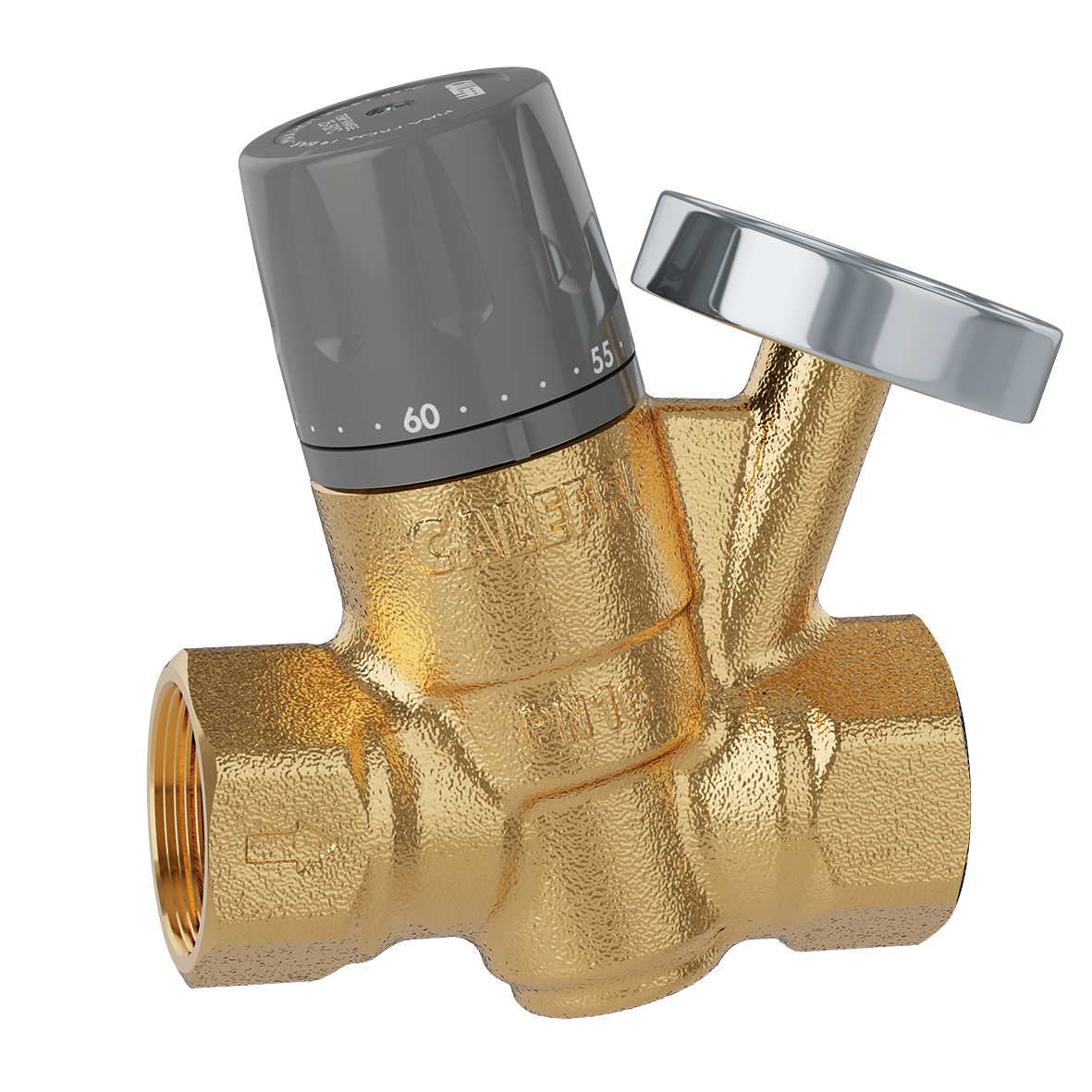

Thermostatic regulator for domestic hot water recirculation circuits.
Product Description
Thermostatic regulator for domestic hot water recirculation circuits.
Note (*) with WATERMARK certification
With temperature gauge for circuit temperature check.
Technical data
Maximum working pressure:
16 bar
Material:
dezincification resistant brass DR "low lead"
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Adjustment temperature range |
|---|---|---|---|
| 116441 | Rp 1/2" (EN 10226-1) F |
- | 40-65 °C |
|
DN
DN 15 (body)
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 116441.
Thermostatic regulator for domestic hot water recirculation circuits. Note (*) with WATERMARK certification
With temperature gauge for circuit temperature check. Connection: Rp 1/2" (EN 10226-1) F. Maximum working pressure: 16 bar. Adjustment temperature range: 40-65 °C. DN: DN 15 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
CODE UNDER ANALYSIS
|
|||
| 116451 | Rp 3/4" (EN 10226-1) F |
- | 40–65 °C |
|
DN
DN 20 (body)
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 116451.
Thermostatic regulator for domestic hot water recirculation circuits. Note (*) with WATERMARK certification
With temperature gauge for circuit temperature check. Connection: Rp 3/4" (EN 10226-1) F. Maximum working pressure: 16 bar. Adjustment temperature range: 40–65 °C. DN: DN 20 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
CODE UNDER ANALYSIS
|
|||
| 116451 AUS | Rp 3/4" (EN 10226-1) F |
(*) | 40–65 °C |
|
DN
DN 20 (body)
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 116451 AUS.
Thermostatic regulator for domestic hot water recirculation circuits. Note (*) with WATERMARK certification
With temperature gauge for circuit temperature check. Connection: Rp 3/4" (EN 10226-1) F. Maximum working pressure: 16 bar. Adjustment temperature range: 40–65 °C. DN: DN 20 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
CODE UNDER ANALYSIS
|
|||
