Series 7000

Template for domestic water meter.

Go to
Download high resolution

Product Description

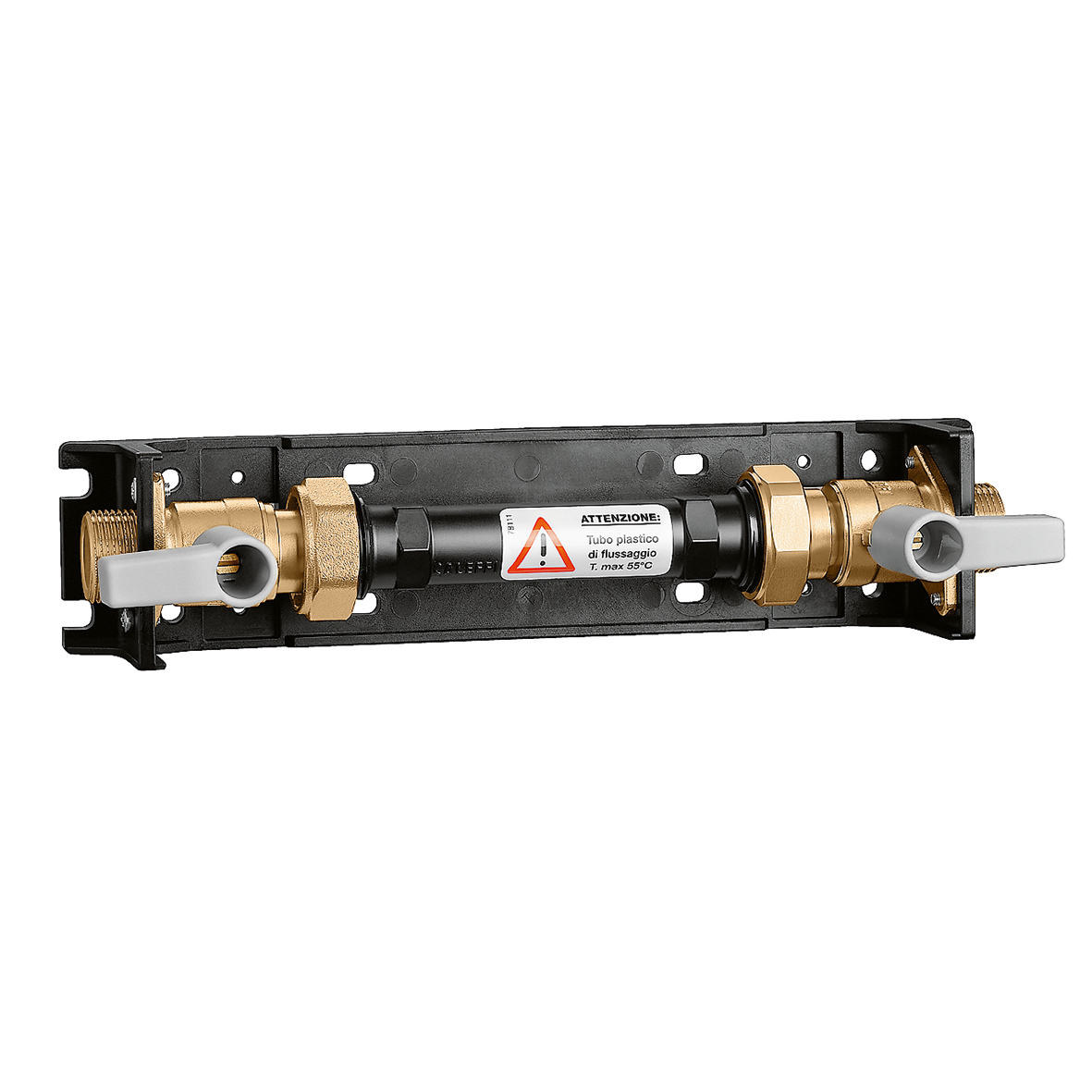

Template for domestic water meter.
For 7942 series meter, 3/4" connections.
Complete with:
- BALLSTOP ball shut-off valve with check valve (inlet);
- ball shut-off valve (outlet);
- technopolymer flushing pipe template;
- mounting bracket.

Technical data

Medium temperature range: 5–55 °C

Drawings and specifications

Part number Connection
2D drawings
Download
Download
3D models
Download
Download
Tender text
Template for domestic water meter. For 7942 series meter, 3/4" connections. Complete with: - BALLSTOP ball shut-off valve with check valve (inlet); - ball shut-off valve (outlet); - technopolymer flushing pipe template; - mounting bracket. Connection: G 3/4" A (ISO 228-1) M. Medium temperature range: 5–55 °C.
SCIP code
ba07db1a-989f-48e9-aba3-73483799173a
