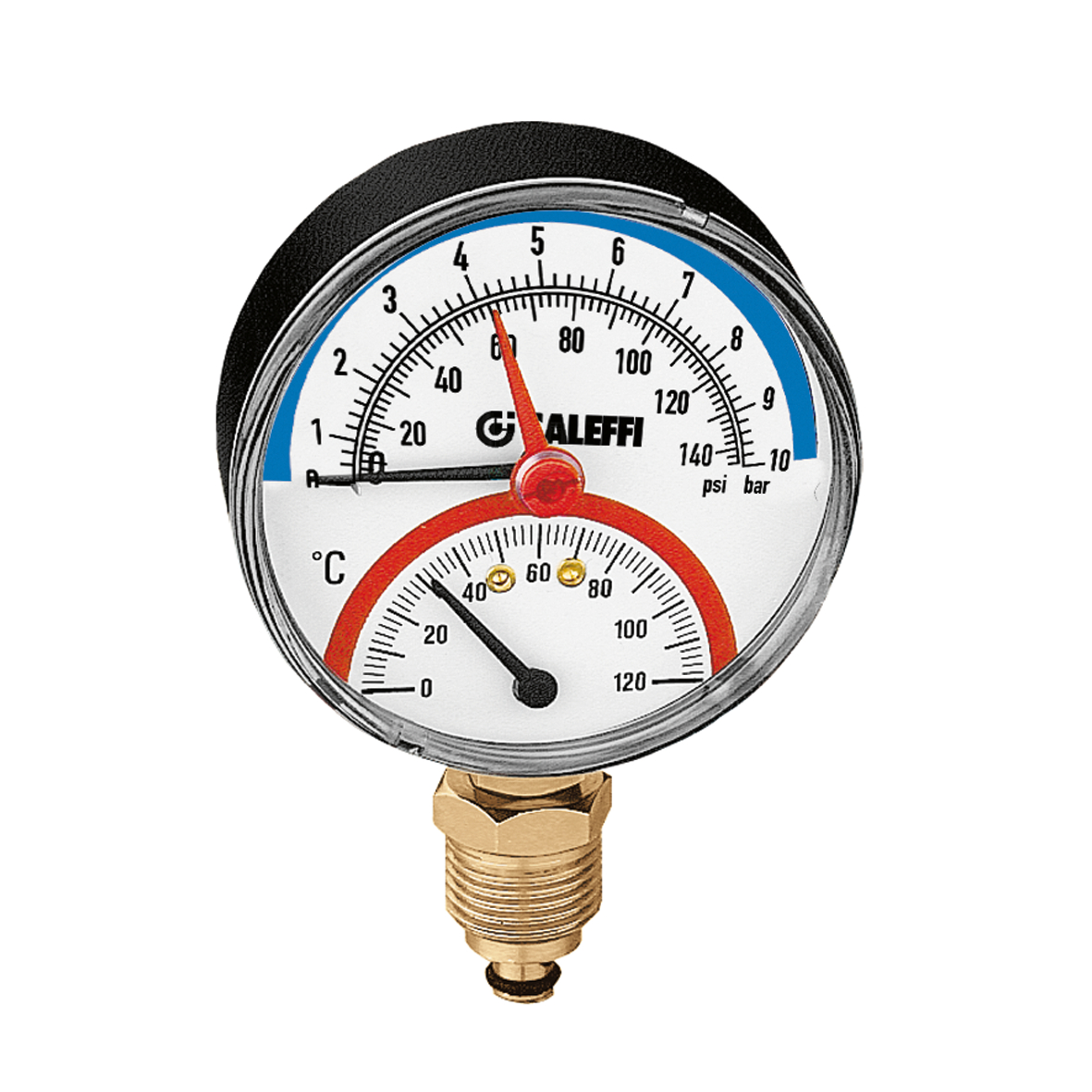

Temperature/pressure gauge.
Product Description
Temperature/pressure gauge.
With shut-off pocket.
Technical data
Ø:
80 mm
Accuracy class:
Pressure gauge UNI 2,5, Temperature gauge UNI 2
Temperature gauge scale:
0–120 °C
pdf
Drawings and specifications
| Part number | Connection | Pressure gauge scale | |
|---|---|---|---|
| 503140 | G 1/2" A (ISO 228-1) M radial connection |
0–4 bar | |
|
3D models
Tender text
Temperature/pressure gauge. With shut-off pocket. Connection: G 1/2" A (ISO 228-1) M, radial connection. Ø: 80 mm. Accuracy class: Pressure gauge UNI 2,5, Temperature gauge UNI 2. Temperature gauge scale: 0–120 °C. Pressure gauge scale: 0–4 bar.
|
|||
| 503160 | G 1/2" A (ISO 228-1) M radial connection |
0–6 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Temperature/pressure gauge. With shut-off pocket. Connection: G 1/2" A (ISO 228-1) M, radial connection. Ø: 80 mm. Accuracy class: Pressure gauge UNI 2,5, Temperature gauge UNI 2. Temperature gauge scale: 0–120 °C. Pressure gauge scale: 0–6 bar.
