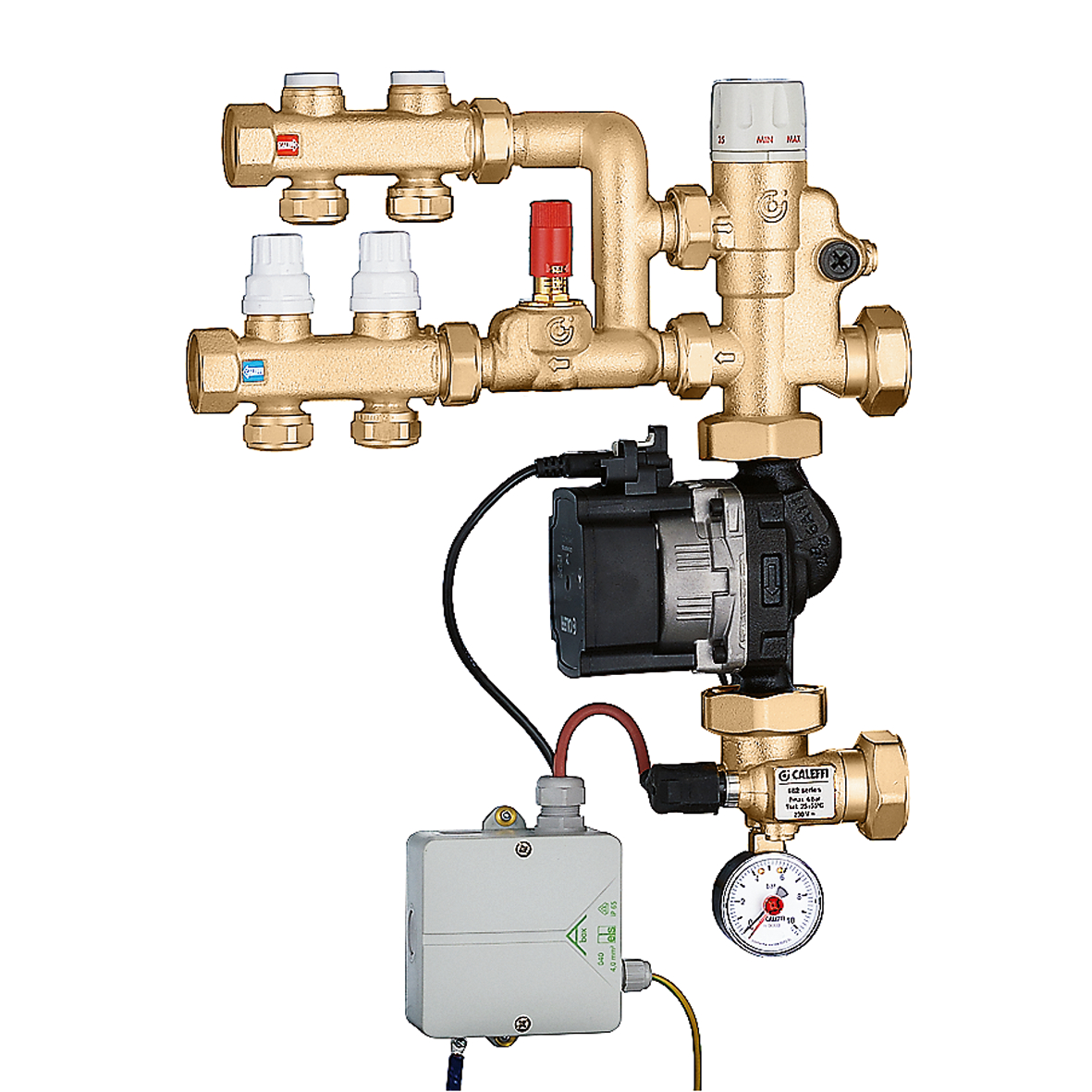

Set point regulating unit.
Product Description
Set point regulating unit.
Complete with:
- set point thermostatic regulating unit;
- medium distribution kit with built-in lockshields and shut-off valves for primary circuit;
- primary circuit by-pass kit;
- safety thermostat;
- high-efficiency pump.
Technical data
Maximum working pressure:
10 bar
Adjustment temperature range:
25–55 °C
Electric supply:
230 V AC
Certifications
pdf
Drawings and specifications
| Part number | Connection 1 | Connection 2 | Outlet connection |
|---|---|---|---|
| 182621A2L 002 | G 1" (ISO 228-1) F |
G 1 1/4" (ISO 228-1) F end outlet |
G 3/4" A (ISO 228-1) M 2 outlets |
|
3D models
Tender text
Set point regulating unit.
Complete with:
- set point thermostatic regulating unit;
- medium distribution kit with built-in lockshields and shut-off valves for primary circuit;
- primary circuit by-pass kit;
- safety thermostat;
- high-efficiency pump.
Connection 1: G 1" (ISO 228-1) F. Connection 2: G 1 1/4" (ISO 228-1) F, end outlet. Outlet connection: G 3/4" A (ISO 228-1) M, 2 outlets. Maximum working pressure: 10 bar. Adjustment temperature range: 25–55 °C. Electric supply: 230 V AC.
SCIP code
b6c3d604-8236-43a2-bcca-4c319a662bbb
|
|||
| 182621A2L 003 | G 1" (ISO 228-1) F end outlet |
G 1 1/4" (ISO 228-1) F |
G 3/4" A (ISO 228-1) M 3 outlets |
|
3D models
Tender text
Set point regulating unit.
Complete with:
- set point thermostatic regulating unit;
- medium distribution kit with built-in lockshields and shut-off valves for primary circuit;
- primary circuit by-pass kit;
- safety thermostat;
- high-efficiency pump.
Connection 1: G 1" (ISO 228-1) F, end outlet. Connection 2: G 1 1/4" (ISO 228-1) F. Outlet connection: G 3/4" A (ISO 228-1) M, 3 outlets. Maximum working pressure: 10 bar. Adjustment temperature range: 25–55 °C. Electric supply: 230 V AC.
SCIP code
c79cc58b-39b1-42f6-a527-bd3f4265b159
|
|||
