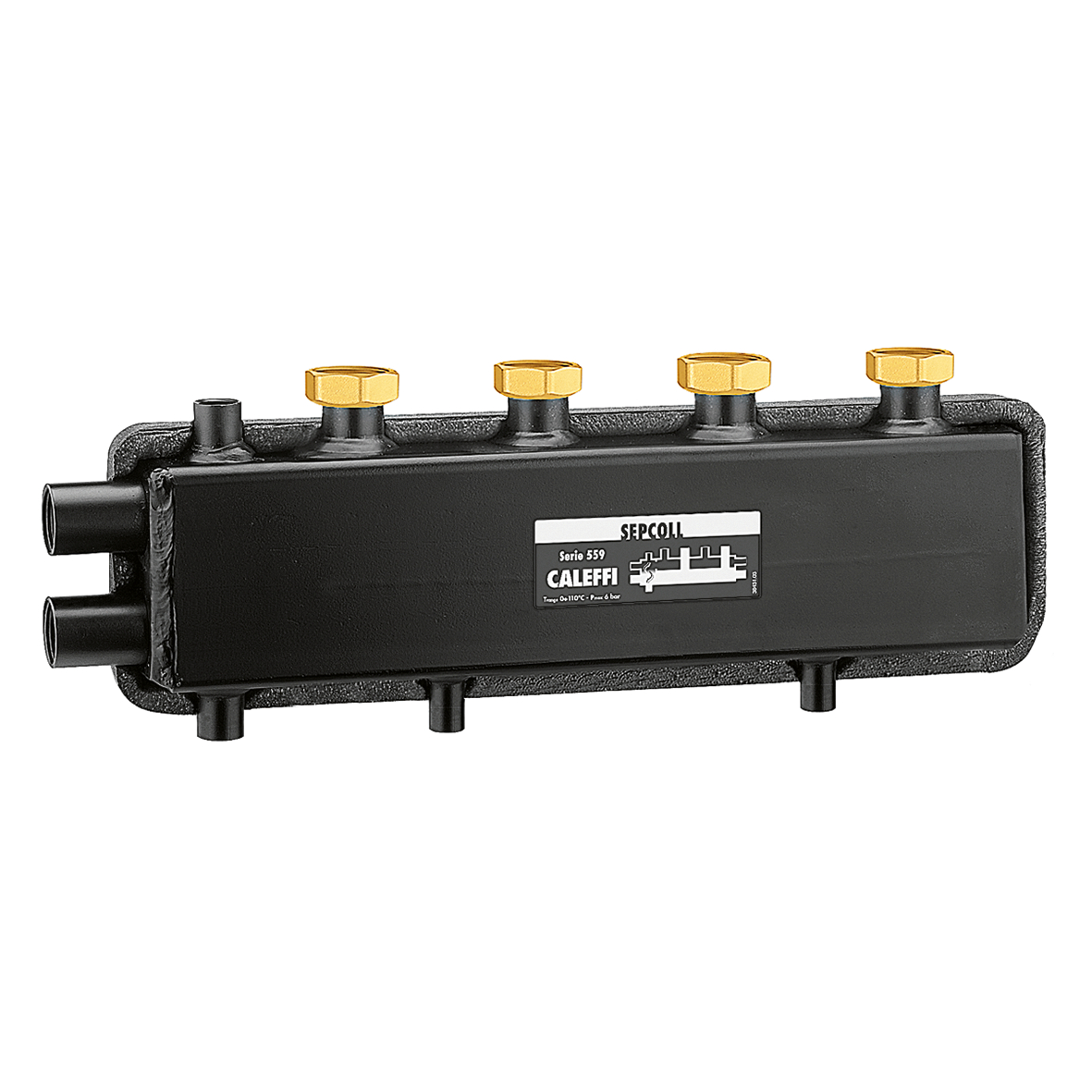

SEPCOLL, Hydraulic separator-manifold for heating and cooling systems. 2 outlets.
Product Description
Hydraulic separator-manifold for heating and cooling systems.
2 outlets.
Complete with mounting brackets.
With insulation.
Technical data
Medium temperature range:
0–110 °C
Main centre distance:
125 mm
PN (Nominal pressure):
PN 6
Material:
steel
Download
pdf
Application diagrams
Drawings and specifications
| Part number | Main connection | Outlet connection | |
|---|---|---|---|
| 559220 | G 1" (ISO 228-1) F |
G 1 1/2" (ISO 228-1) F 2 outlets, captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Hydraulic separator-manifold for heating and cooling systems.
2 outlets.
With insulation.
Complete with mounting brackets.
Main connection: G 1" (ISO 228-1) F. Outlet connection: G 1 1/2" (ISO 228-1) F, 2 outlets, captive nut. Medium temperature range: 0–110 °C. Main centre distance: 125 mm. PN (Nominal pressure): PN 6. Material: steel.
