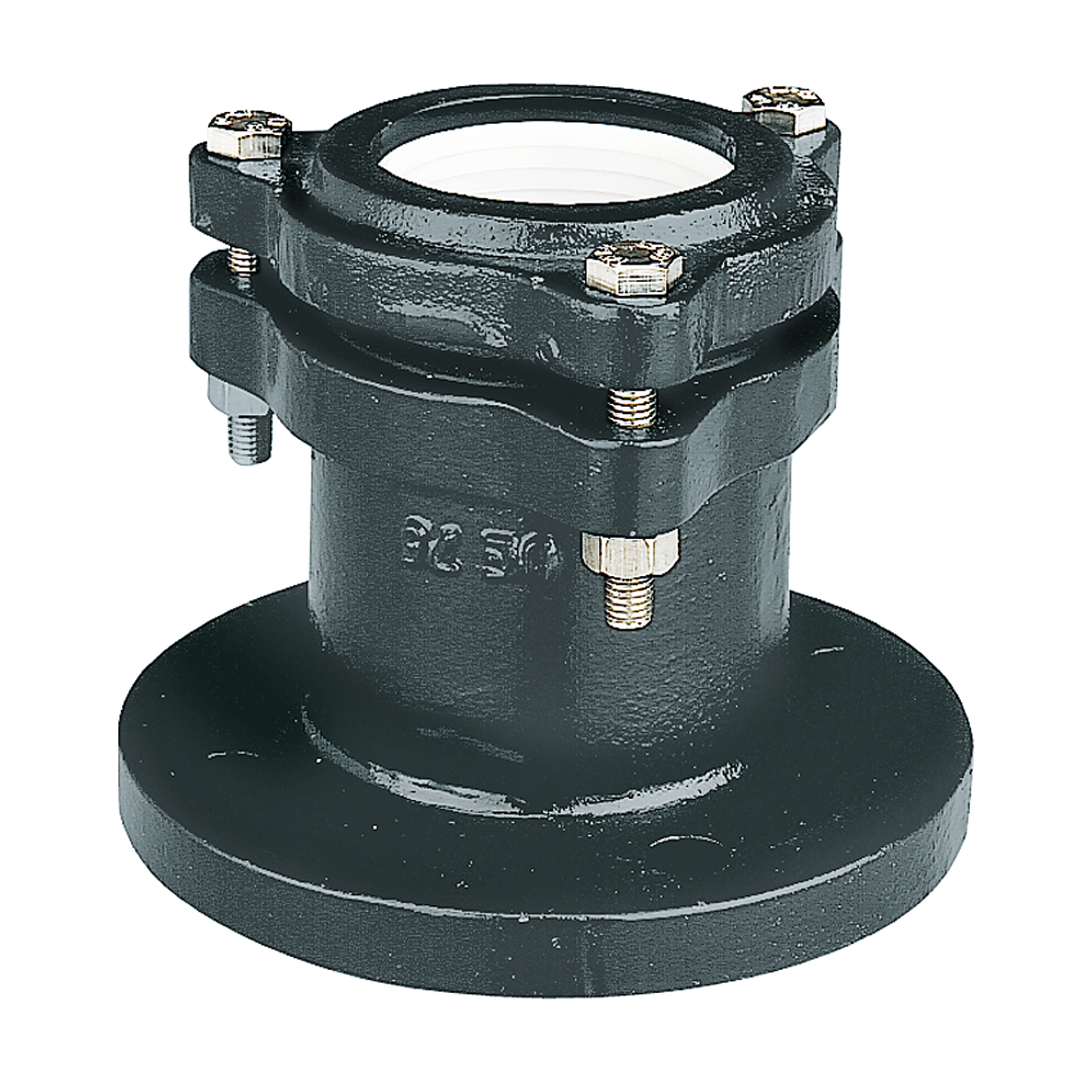

Flanged fitting, PN 10 EN 1092-1.
Product Description
Flanged fitting, PN 10 EN 1092-1.
For polyethylene pipes.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
0–40 °C
Material:
cast iron
pdf
Drawings and specifications
| Part number | Pipe diameter | Connection | |
|---|---|---|---|
| 888075 | Ø 75 |
DN 65 (EN 1092-1) PN 10 |
|
|
3D models
Tender text
Flanged fitting, PN 10 EN 1092-1. For polyethylene pipes. Pipe diameter: Ø 75. Connection: DN 65 (EN 1092-1) PN 10. Maximum working pressure: 10 bar. Medium temperature range: 0–40 °C. Material: cast iron.
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 888090 | Ø 90 |
DN 80 (EN 1092-1) PN 10 |
|
|
3D models
Tender text
Flanged fitting, PN 10 EN 1092-1. For polyethylene pipes. Pipe diameter: Ø 90. Connection: DN 80 (EN 1092-1) PN 10. Maximum working pressure: 10 bar. Medium temperature range: 0–40 °C. Material: cast iron.
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 888110 | Ø 110 |
DN 100 (EN 1092-1) PN 10 |
|
|
3D models
Tender text
Flanged fitting, PN 10 EN 1092-1. For polyethylene pipes. Pipe diameter: Ø 110. Connection: DN 100 (EN 1092-1) PN 10. Maximum working pressure: 10 bar. Medium temperature range: 0–40 °C. Material: cast iron.
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 888125 | Ø 125 |
DN 100 (EN 1092-1) PN 10 |
|
|
3D models
Tender text
Flanged fitting, PN 10 EN 1092-1. For polyethylene pipes. Pipe diameter: Ø 125. Connection: DN 100 (EN 1092-1) PN 10. Maximum working pressure: 10 bar. Medium temperature range: 0–40 °C. Material: cast iron.
SCIP code
CODICE IN FASE DI ANALISI
|
|||
