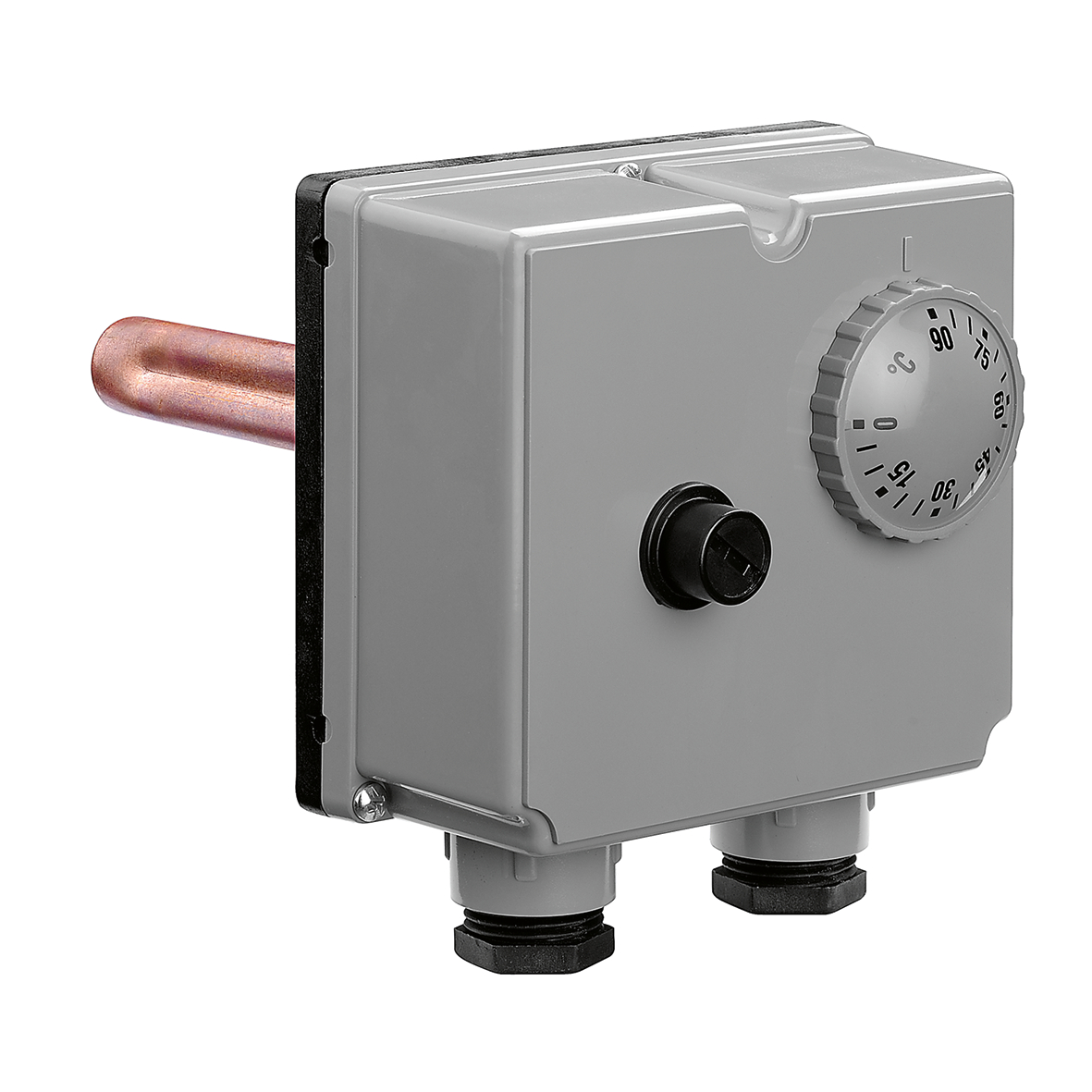

Double immersion thermostat.
Product Description
Double immersion thermostat.
Safety thermostat with manual reset:
- setting 100 °C (+0 °C -6 °C);
- setting 110 °C (+0 °C -6 °C).
Adjustment thermostat:
- temperature range: 0–90 °C;
- temperature range: 0–100 °C.
With 1/2” connection pocket.
Approved INAIL (previously ISPESL), (D.M.1.12.1975).
Technical data
Protection class:
IP 40
Certifications
Download
pdf
Application diagrams
Drawings and specifications
| Part number | Adjustment temperature range | Double thermostat safety setting | |
|---|---|---|---|
| 623000 | 0–90 °C | 100 °C | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Double immersion thermostat. Safety thermostat with manual reset:
- setting 100 °C (+0 °C -6 °C);
- setting 110 °C (+0 °C -6 °C).
Adjustment thermostat:
- temperature range: 0–90 °C;
- temperature range: 0–100 °C.
With 1/2” connection pocket. Approved INAIL (previously ISPESL), (D.M.1.12.1975). Adjustment temperature range: 0–90 °C. Double thermostat safety setting: 100 °C. Protection class: IP 40.
|
|||
| 623100 | 0–100 °C | 110 °C | |
|
3D models
Tender text
Double immersion thermostat. Safety thermostat with manual reset:
- setting 100 °C (+0 °C -6 °C);
- setting 110 °C (+0 °C -6 °C).
Adjustment thermostat:
- temperature range: 0–90 °C;
- temperature range: 0–100 °C.
With 1/2” connection pocket. Approved INAIL (previously ISPESL), (D.M.1.12.1975). Adjustment temperature range: 0–100 °C. Double thermostat safety setting: 110 °C. Protection class: IP 40.
|
|||
