Series 132

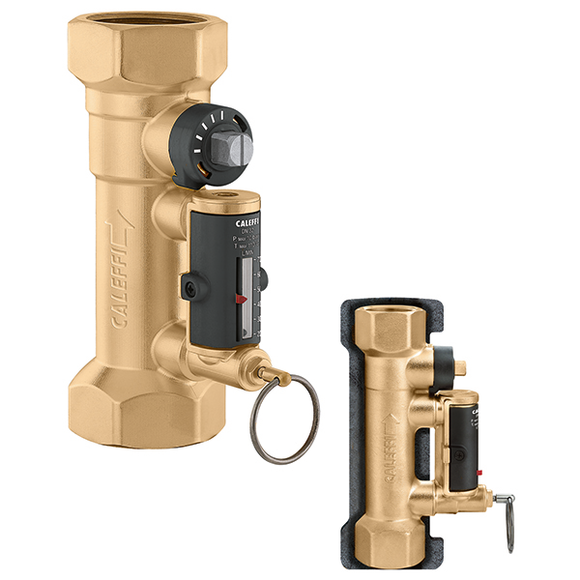

Balancing valve with flow meter.

Download high resolution

Product Description

Balancing valve with flow meter.
Ball valve for flow rate adjustment.
Graduated scale flow meter with magnetic movement flow rate indicator.
Direct reading of flow rate.
With insulation.
PATENT

Technical data

Maximum working pressure: 10 bar

Medium temperature range: -10–110 °C

Maximum percentage of glycol: 50 %

Medium: glycol solutions, technical water

Material: brass

Certifications

Download

Application diagrams

45.30 - Balancing of riser radiator system with one-pipe valves

45.35 - Balancing of zone radiator system with one-pipe valves

Drawings and specifications

Part number	Connection	Flow rate regulation range
132402	G 1/2" (ISO 228-1) F	2–7 l/min
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132402%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132402%20%28DXF%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132402%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132402%20%28stp%29.stp bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 1/2" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: glycol solutions. Flow rate regulation range: 2–7 l/min. Material: brass.
132512	G 3/4" (ISO 228-1) F	5–13 l/min
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132515%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132515%20%28DXF%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132512%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132512%20%28stp%29.stp bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 3/4" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate regulation range: 5–13 l/min. Material: brass.
132522	G 3/4" (ISO 228-1) F	7–28 l/min
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132515%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132515%20%28DXF%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132522%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132522%20%28stp%29.stp bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 3/4" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate regulation range: 7–28 l/min. Material: brass.
132602	G 1" (ISO 228-1) F	10–40 l/min
2D drawings dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132602%20%28DXF%29.dxf pdf Download this file dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132602%20%28dwg%29.dwg dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132602%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132602%20%28dxf%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132602%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132602%20%28stp%29.stp bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 1" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate regulation range: 10–40 l/min. Material: brass.
132702	G 1 1/4" (ISO 228-1) F	20–70 l/min
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132702%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132702%20%28DXF%29.dxf 3D models bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 1 1/4" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: technical water. Flow rate regulation range: 20–70 l/min. Material: brass.
132802	G 1 1/2" (ISO 228-1) F	30–120 l/min
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132802%20%28dwg%29.dwg dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132802%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132802%20%28dxf%29.dxf dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132802%20%28DXF%29.dxf pdf Download this file 3D models stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132802%20%28stp%29.stp igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132802%20%28igs%29.igs bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 1 1/2" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: technical water. Flow rate regulation range: 30–120 l/min. Material: brass.
132902	G 2" (ISO 228-1) F	50–200 l/min
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132902%20%28DWG%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132902%20%28DXF%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132902%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/132902%20%28stp%29.stp bim Tender text Balancing valve with flow meter. With insulation. Ball valve for flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. Direct reading of flow rate. connection: G 2" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: -10–110 °C. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate regulation range: 50–200 l/min. Material: brass.
