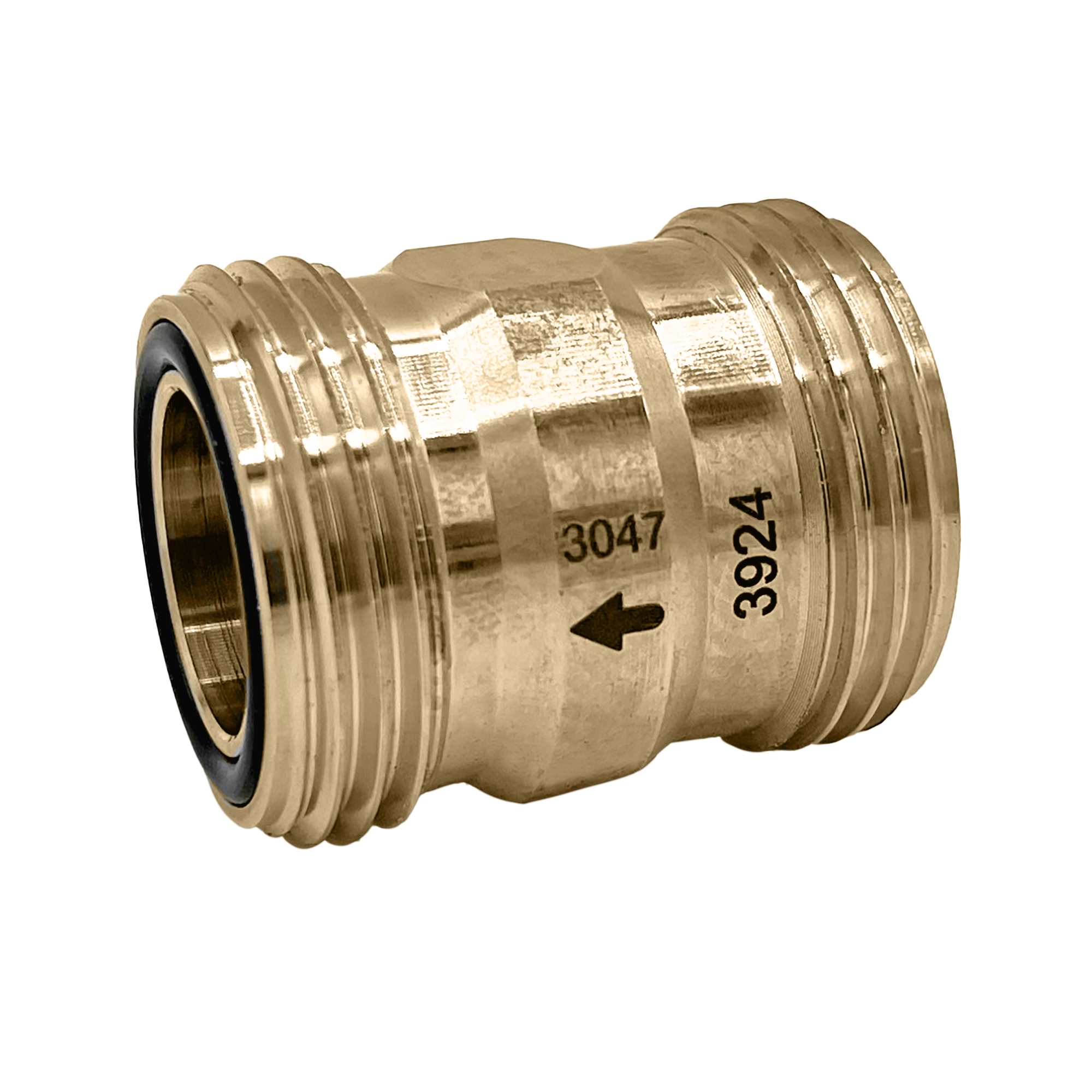

Serviceable low lead check valve (body)
Product Description
Serviceable low lead check valve (body)
Dual union body
See fittings selection in section 13
Technical data
Material:
DZR low lead brass
Medium temperature range:
32–250 °F
Maximum operating pressure:
150 psi
Certifications
pdf
Drawings and specifications
| Part number | Note | Cv | Actions |
|---|---|---|---|
| NA30474A | ½", ¾" body w/o fittings | 17 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, NA30474A.
Serviceable low lead check valve (body)
Dual union body
See fittings selection in section 13
Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 17. Material: DZR low lead brass.
|
|||
| NA30476A | 1", 1¼" body w/o fittings | 30 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, NA30476A.
Serviceable low lead check valve (body)
Dual union body
See fittings selection in section 13
Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 30. Material: DZR low lead brass.
|
|||
| NA30478A | 1½", 2" body w/o fittings | 75 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, NA30478A.
Serviceable low lead check valve (body)
Dual union body
See fittings selection in section 13
Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 75. Material: DZR low lead brass.
|
|||
