Series 3047

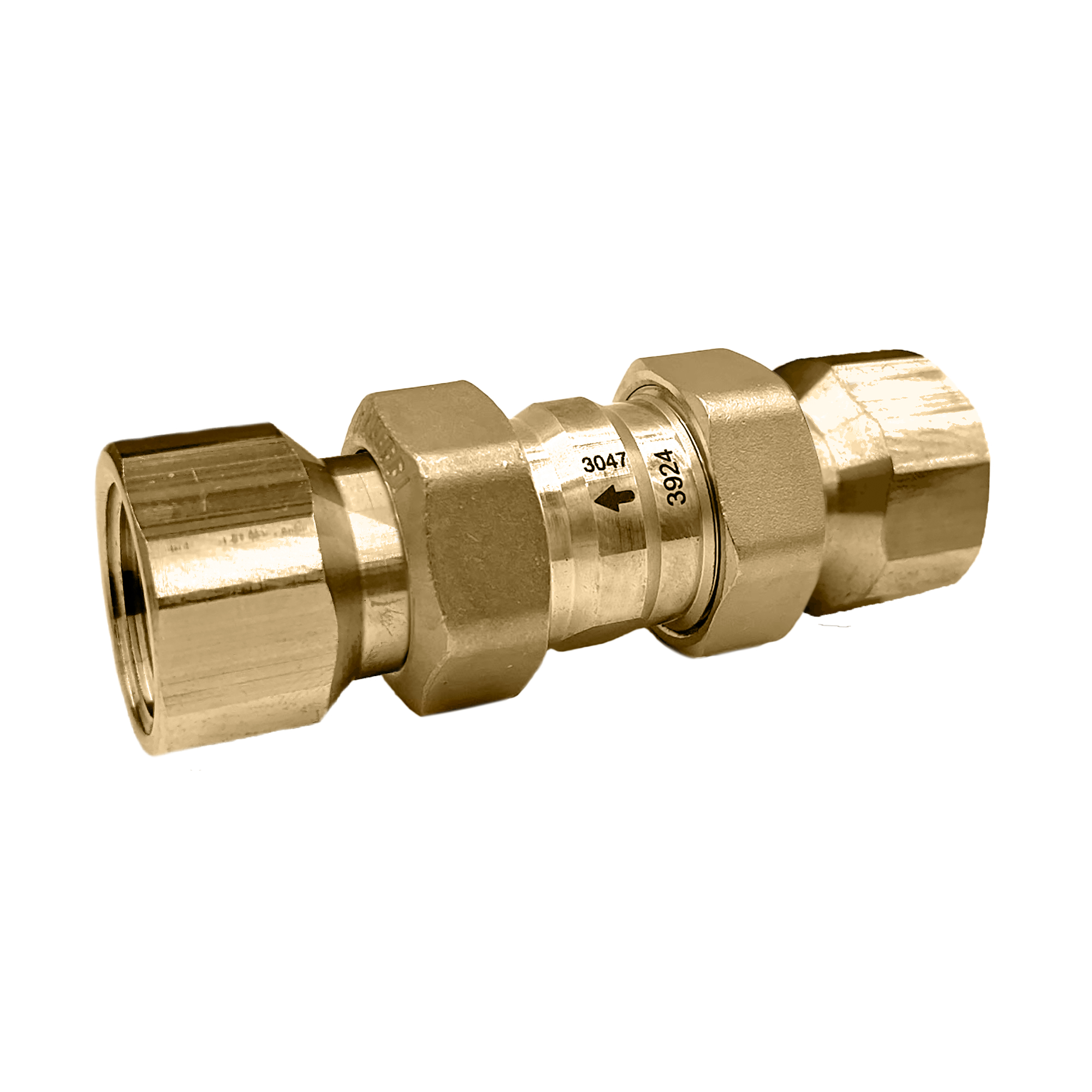

Serviceable low lead check valve (FNPT)

Go to
Download high resolution

Product Description

Serviceable low lead check valve (FNPT)
Dual union body

Technical data

Maximum operating pressure: 150 psi
Medium temperature range: 32 – 250 °F
Material: DZR low lead brass

Certifications

ES LOW LEAD
Buy American Act
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
IPC
IRC
NPC
UPC
California HSC 116875
Maryland HB372
United States S.3874
Vermont Act 193

Drawings and specifications

Part number Connection Cv
3D models
Tender text
Serviceable low lead check valve (FNPT) Dual union body connection: 1/2" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 17. Material: DZR low lead brass.
3D models
Tender text
Serviceable low lead check valve (FNPT) Dual union body connection: 3/4" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 17. Material: DZR low lead brass.
3D models
Tender text
Serviceable low lead check valve (FNPT) Dual union body connection: 1" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 30. Material: DZR low lead brass.
3D models
Tender text
Serviceable low lead check valve (FNPT) Dual union body connection: 1 1/4" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 30. Material: DZR low lead brass.
3D models
Tender text
Serviceable low lead check valve (FNPT) Dual union body connection: 2" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 75. Material: DZR low lead brass.
