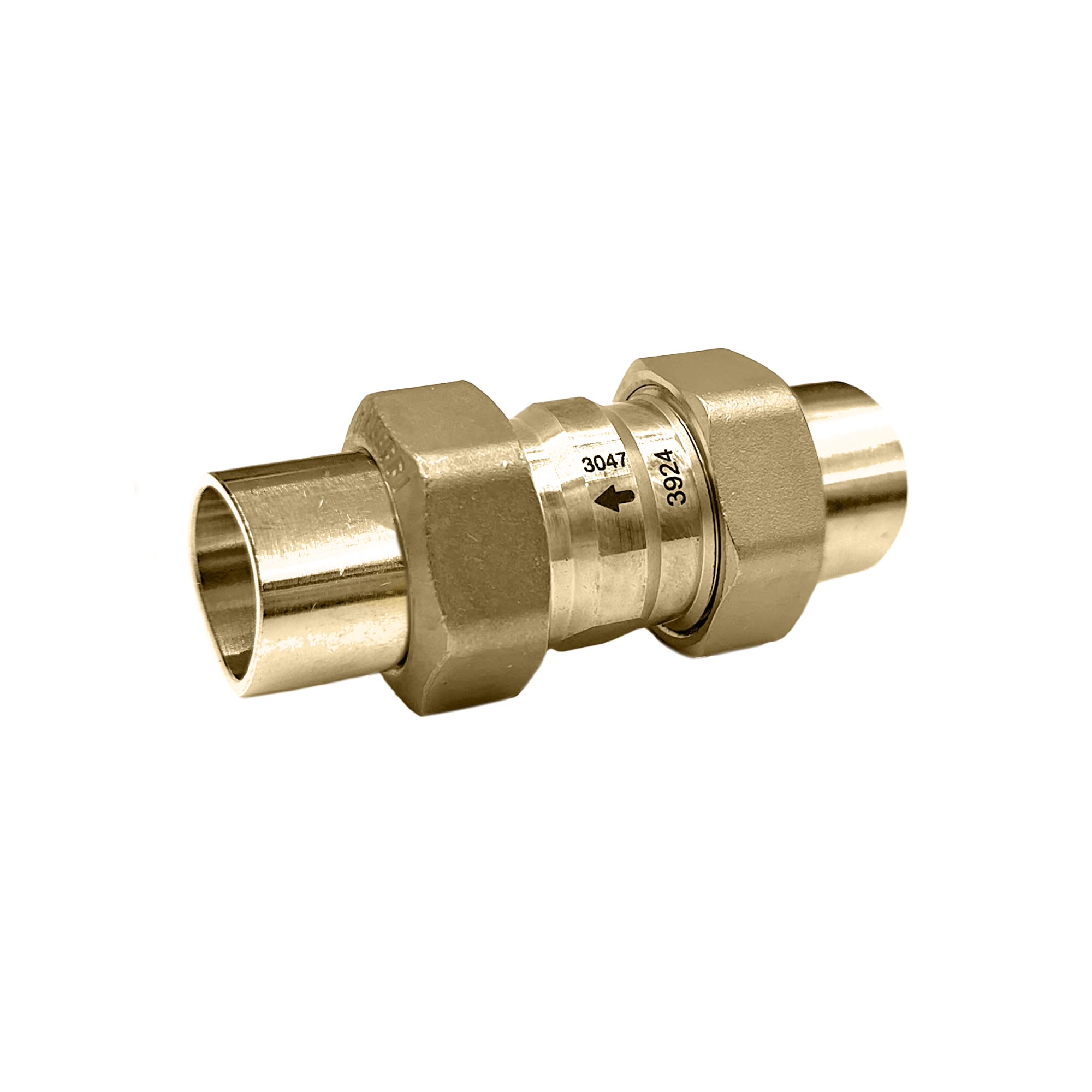

Serviceable low lead check valve (sweat)
Product Description
Serviceable low lead check valve (sweat)
Dual union body
Technical data
Material:
DZR low lead brass
Medium temperature range:
32 – 250 °F
Maximum working pressure:
150 psi
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | Actions |
|---|---|---|---|
| 304749A | 1/2" Sweat union |
17 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 304749A.
Serviceable low lead check valve (sweat)
Dual union body
Connection: 1/2" Sweat, union. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 17. Material: DZR low lead brass.
|
|||
| 304759A | 3/4" Sweat union |
17 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 304759A.
Serviceable low lead check valve (sweat)
Dual union body
Connection: 3/4" Sweat, union. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 17. Material: DZR low lead brass.
|
|||
| 304769A | 1" Sweat union |
30 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 304769A.
Serviceable low lead check valve (sweat)
Dual union body
Connection: 1" Sweat, union. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 30. Material: DZR low lead brass.
|
|||
| 304779A | 1 1/4" Sweat union |
30 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 304779A.
Serviceable low lead check valve (sweat)
Dual union body
Connection: 1 1/4" Sweat, union. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 30. Material: DZR low lead brass.
|
|||
| 304789A | 1 1/2" Sweat union |
75 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 304789A.
Serviceable low lead check valve (sweat)
Dual union body
Connection: 1 1/2" Sweat, union. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 75. Material: DZR low lead brass.
|
|||
| 304799A | 2" Sweat union |
75 | |
|
2D drawings
dwg
Share this file
Download this file
3D models
igs
Share this file
Download this file
stp
Share this file
Download this file
Tender text
CALEFFI, 304799A.
Serviceable low lead check valve (sweat)
Dual union body
Connection: 2" Sweat, union. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Cv: 75. Material: DZR low lead brass.
|
|||
dwg
igs
stp
