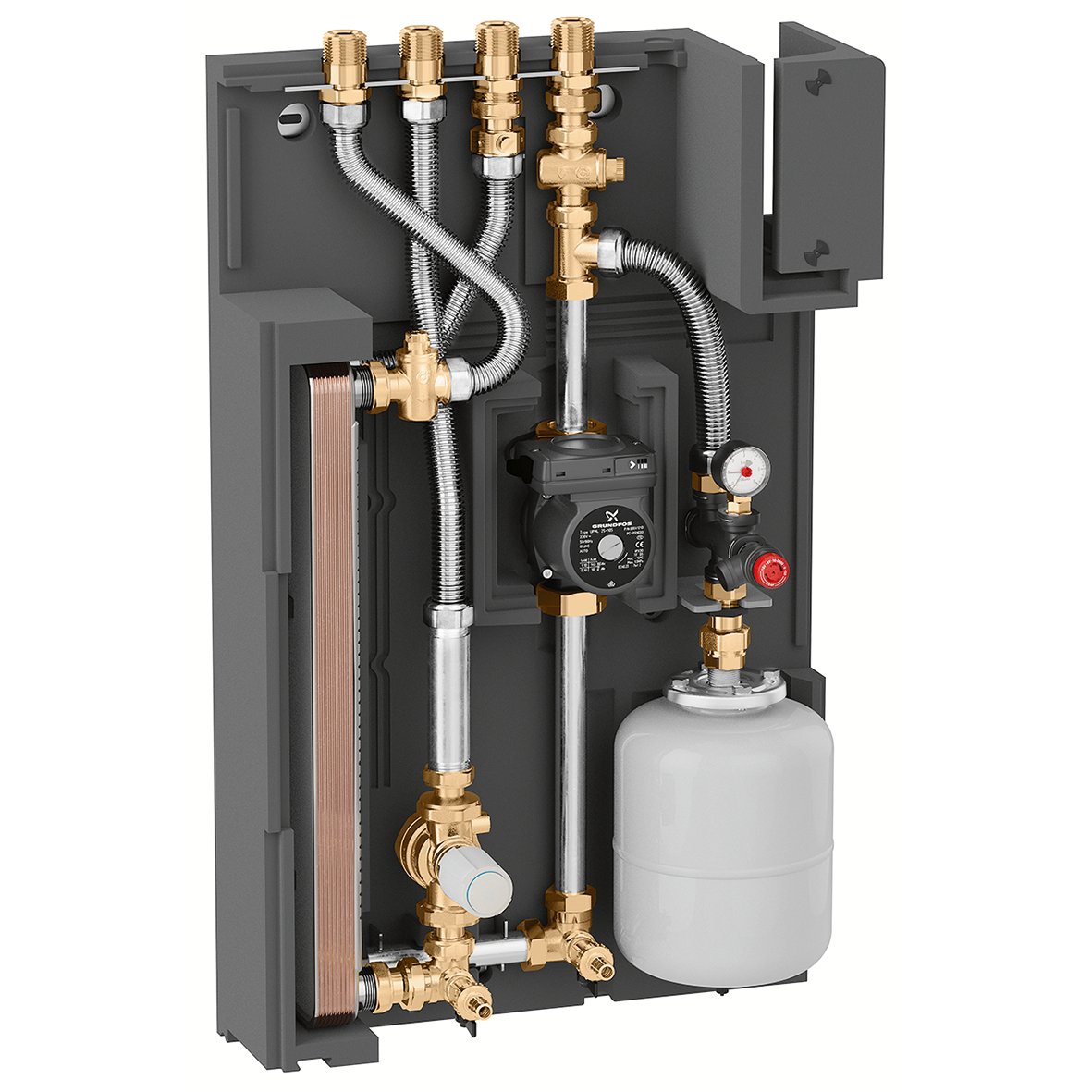

Wall-hanging cooling interface unit.
Product Description
Wall-hanging cooling interface unit.
Complete with:
- pressure independant control valve;
- electro-thermic actuator;
- plate heat exchanger;
- high efficiency pump;
- 5 L expansion vessel;
- safety relief valve (3 bar setting);
- suitable for CONTECA EASY codes 750405G or 750705G heat meters, with 755810 option.
With insulation.
Technical data
Maximum working pressure:
16 bar
Medium temperature range:
3–85 °C
Electric supply:
230 V AC
Depth:
220 mm
Height:
780 mm
Width:
480 mm
Maximum percentage of glycol:
30 %
Medium:
water, glycol solutions
△p max.:
4 bar
pdf
Drawings and specifications
| Part number | Connection | Nominal heat exchanger capacity | |
|---|---|---|---|
| 797601 | G 1" A (ISO 228-1) M |
3 kW | |
|
3D models
Tender text
Wall-hanging cooling interface unit.
With insulation.
Complete with:
- pressure independant control valve;
- electro-thermic actuator;
- plate heat exchanger;
- high efficiency pump;
- 5 L expansion vessel;
- safety relief valve (3 bar setting);
- suitable for CONTECA EASY codes 750405G or 750705G heat meters, with 755810 option.
Connection: G 1" A (ISO 228-1) M. Maximum working pressure: 16 bar. Medium temperature range: 3–85 °C. Electric supply: 230 V AC. Nominal heat exchanger capacity: 3 kW. Depth: 220 mm. Height: 780 mm. Width: 480 mm. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. △p max.: 4 bar.
SCIP code
ff27aed7-52bc-4a63-b415-32988c3e39f2
|
|||
| 797603 | G 1" A (ISO 228-1) M |
8 kW | |
|
3D models
Tender text
Wall-hanging cooling interface unit.
With insulation.
Complete with:
- pressure independant control valve;
- electro-thermic actuator;
- plate heat exchanger;
- high efficiency pump;
- 5 L expansion vessel;
- safety relief valve (3 bar setting);
- suitable for CONTECA EASY codes 750405G or 750705G heat meters, with 755810 option.
Connection: G 1" A (ISO 228-1) M. Maximum working pressure: 16 bar. Medium temperature range: 3–85 °C. Electric supply: 230 V AC. Nominal heat exchanger capacity: 8 kW. Depth: 220 mm. Height: 780 mm. Width: 480 mm. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. △p max.: 4 bar.
SCIP code
7ae4b58f-cd93-4492-a819-378ddf6b4d08
|
|||
| 797605 | G 1" A (ISO 228-1) M |
15 kW | |
|
3D models
Tender text
Wall-hanging cooling interface unit.
With insulation.
Complete with:
- pressure independant control valve;
- electro-thermic actuator;
- plate heat exchanger;
- high efficiency pump;
- 5 L expansion vessel;
- safety relief valve (3 bar setting);
- suitable for CONTECA EASY codes 750405G or 750705G heat meters, with 755810 option.
Connection: G 1" A (ISO 228-1) M. Maximum working pressure: 16 bar. Medium temperature range: 3–85 °C. Electric supply: 230 V AC. Nominal heat exchanger capacity: 15 kW. Depth: 220 mm. Height: 780 mm. Width: 480 mm. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions. △p max.: 4 bar.
SCIP code
8bf8485c-f099-4227-9dc0-3e7cec0fc749
|
|||
