Series 5459

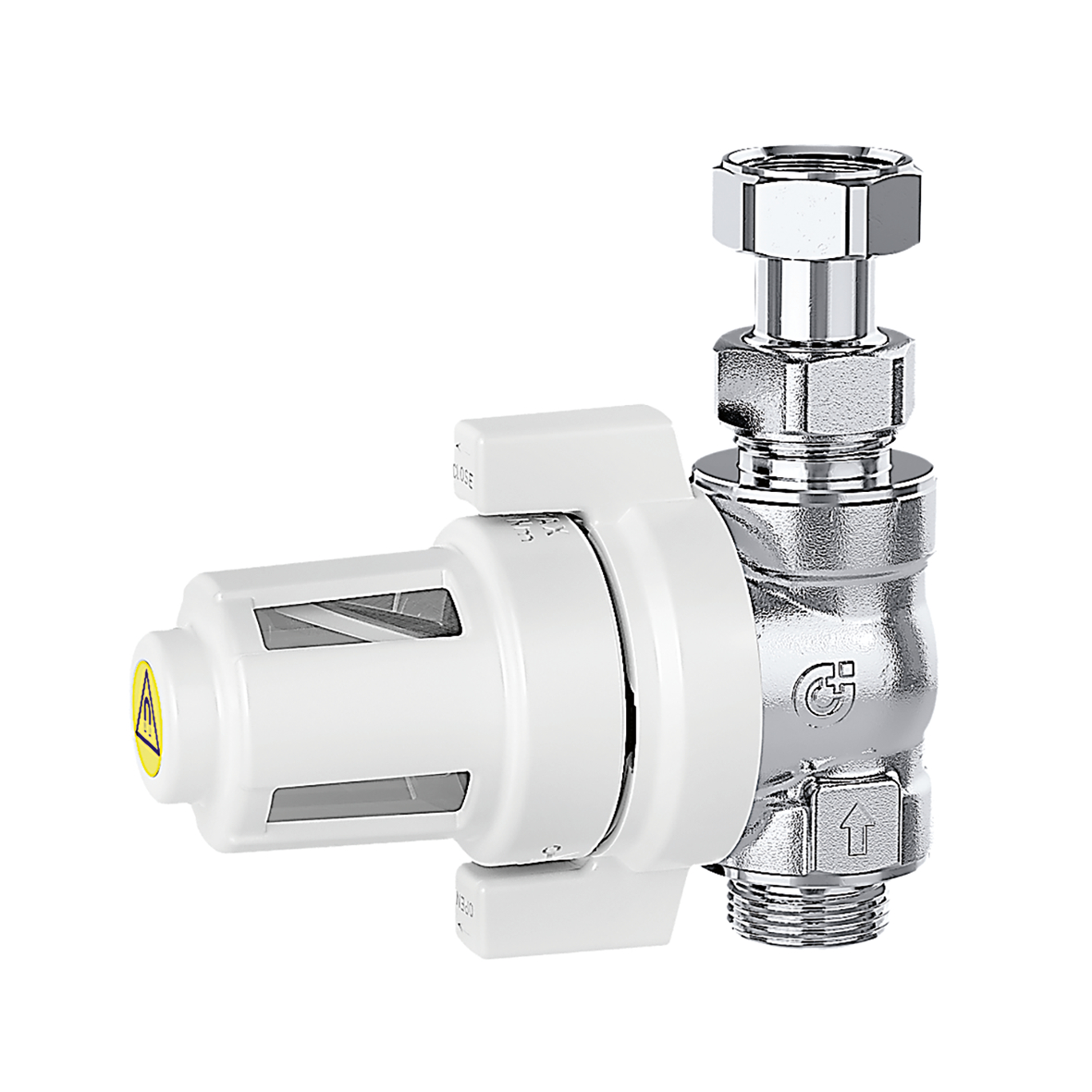

CALEFFI XS®, Under-boiler magnetic filter.

Go to
Download high resolution

Product Description

Under-boiler magnetic filter.
In-line installation.
PATENT PENDING

Technical data

Maximum working pressure: 3 bar
Medium temperature range: 0–90 °C
Finish: nickel plated
Material: brass

Drawings and specifications

Part number Inlet Connection Outlet connection
2D drawings
Download
Download
3D models
Download
Download
Tender text
Under-boiler magnetic filter. In-line installation. Inlet Connection: G 3/4" A (ISO 228-1) M, straight connection. Outlet connection: G 3/4" (ISO 228-1) F, captive nut. Maximum working pressure: 3 bar. Medium temperature range: 0–90 °C. Finish: nickel plated. Material: brass.
SCIP code
CODICE IN FASE DI ANALISI
