Reduced male-female tee fitting.
Product Description
Reduced male-female tee fitting.
For polyethylene pipes.
Technical data
Maximum working pressure:
16 bar
Medium temperature range:
0–40 °C
Material:
brass
Certifications
pdf
Drawings and specifications
| Part number | Connection 1 | Connection 2 | |
|---|---|---|---|
| 865420 | G 1/2" A (ISO 228-1) M, Ø 20 |
G 3/8" (ISO 228-1) F |
|
|
3D models
Tender text
Reduced male-female tee fitting. For polyethylene pipes. Connection 1: G 1/2" A (ISO 228-1) M, Ø 20. Connection 2: G 3/8" (ISO 228-1) F. Maximum working pressure: 16 bar. Medium temperature range: 0–40 °C. Material: brass.
SCIP code
c53e9357-cf87-4f83-b444-62aea547c151
|
|||
| 865525 | G 3/4" A (ISO 228-1) M, Ø 25 |
G 1/2" (ISO 228-1) F |
|
|
3D models
Tender text
Reduced male-female tee fitting. For polyethylene pipes. Connection 1: G 3/4" A (ISO 228-1) M, Ø 25. Connection 2: G 1/2" (ISO 228-1) F. Maximum working pressure: 16 bar. Medium temperature range: 0–40 °C. Material: brass.
SCIP code
ab25dd41-f31a-4af8-9d3a-e2874e98874b
|
|||

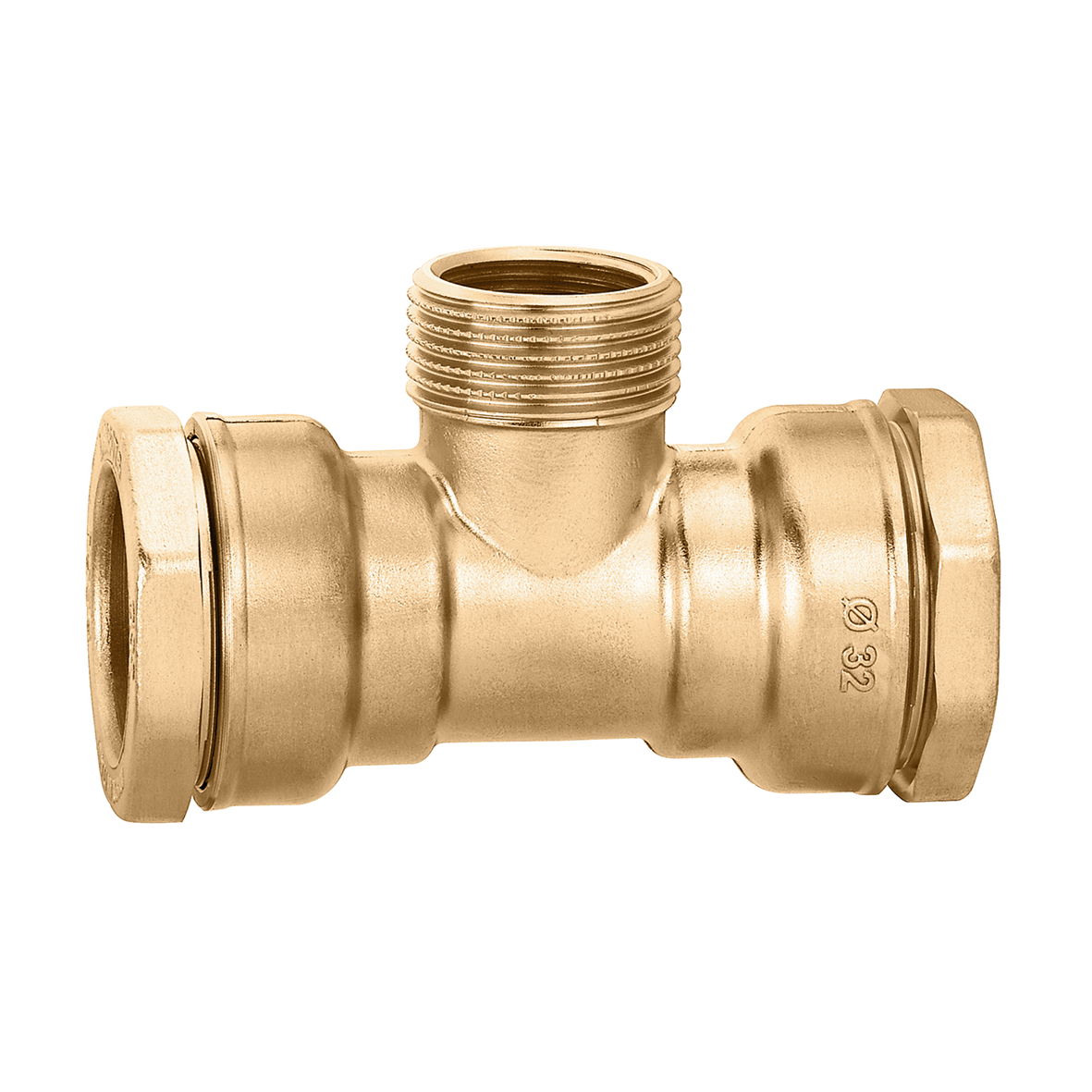

| 865632 | G 1" A (ISO 228-1) M, Ø 32 |
G 3/4" (ISO 228-1) F |
|
|
3D models
Tender text
Reduced male-female tee fitting. For polyethylene pipes. Connection 1: G 1" A (ISO 228-1) M, Ø 32. Connection 2: G 3/4" (ISO 228-1) F. Maximum working pressure: 16 bar. Medium temperature range: 0–40 °C. Material: brass.
SCIP code
8dfb1133-a78a-432e-97b6-ac46de61206c
|
|||
| 865740 | G 1 1/4" (ISO 228-1) F, Ø 40 |
G 1" (ISO 228-1) F |
|
|
3D models
Tender text
Reduced male-female tee fitting. For polyethylene pipes. Connection 1: G 1 1/4" (ISO 228-1) F, Ø 40. Connection 2: G 1" (ISO 228-1) F. Maximum working pressure: 16 bar. Medium temperature range: 0–40 °C. Material: brass.
SCIP code
55a8358e-e7f3-4fe7-a40e-55d705ac913b
|
|||
| 865850 | G 1 1/2" A (ISO 228-1) M, Ø 50 |
G 1 1/4" (ISO 228-1) F |
|
|
3D models
Tender text
Reduced male-female tee fitting. For polyethylene pipes. Connection 1: G 1 1/2" A (ISO 228-1) M, Ø 50. Connection 2: G 1 1/4" (ISO 228-1) F. Maximum working pressure: 16 bar. Medium temperature range: 0–40 °C. Material: brass.
SCIP code
5311a32d-2cc2-4dc5-b655-c1a66637b683
|
|||
| 865963 | G 2" A (ISO 228-1) M, Ø 63 |
G 1 1/2" (ISO 228-1) F |
|
|
3D models
Tender text
Reduced male-female tee fitting. For polyethylene pipes. Connection 1: G 2" A (ISO 228-1) M, Ø 63. Connection 2: G 1 1/2" (ISO 228-1) F. Maximum working pressure: 16 bar. Medium temperature range: 0–40 °C. Material: brass.
SCIP code
ce7dd6e0-50fa-4a25-95ba-7a5ab97c51b6
|
|||
