Series 559

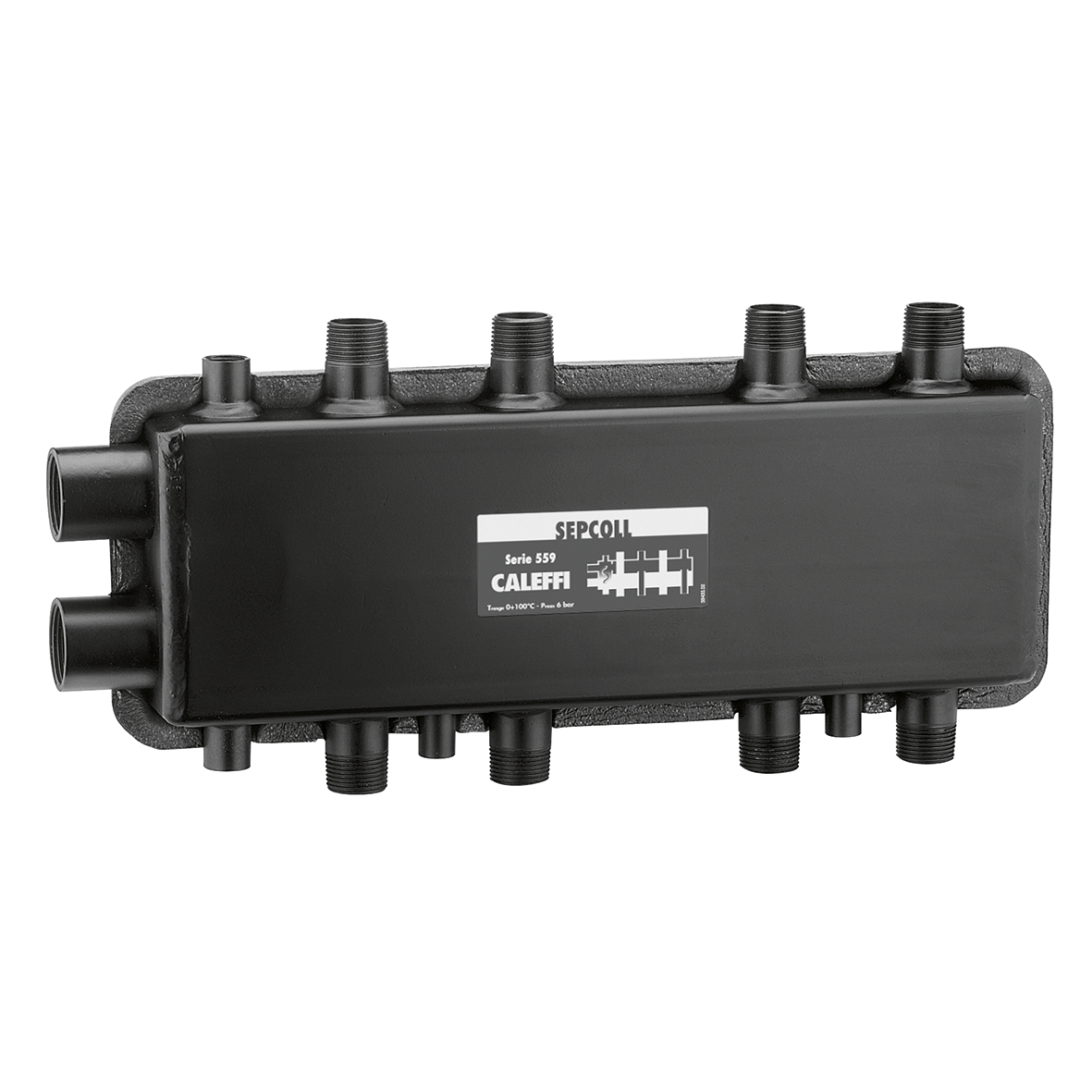

SEPCOLL, Hydraulic separator-manifold for heating and cooling systems. 2+2 outlets.

Go to
Download high resolution

Product Description

Hydraulic separator-manifold for heating and cooling systems.
2+2 outlets.
Complete with mounting brackets.
With insulation.

Technical data

Medium temperature range: 0–100 °C
PN (Nominal pressure): PN 6
Material: steel

Drawings and specifications

Part number Main connection Outlet connection Outlet connection
Main centre distance
90 mm
3D models
Tender text
Hydraulic separator-manifold for heating and cooling systems. 2+2 outlets. With insulation. Complete with mounting brackets. main connection: G 1 1/4" (ISO 228-1) F. outlet connection: G 1" A (ISO 228-1) M, 2 outlets. outlet connection: G 1" A (ISO 228-1) M, 2 outlets. Medium temperature range: 0–100 °C. Main centre distance: 90 mm. PN (Nominal pressure): PN 6. Material: steel.
