Compression fitting.
Product Description

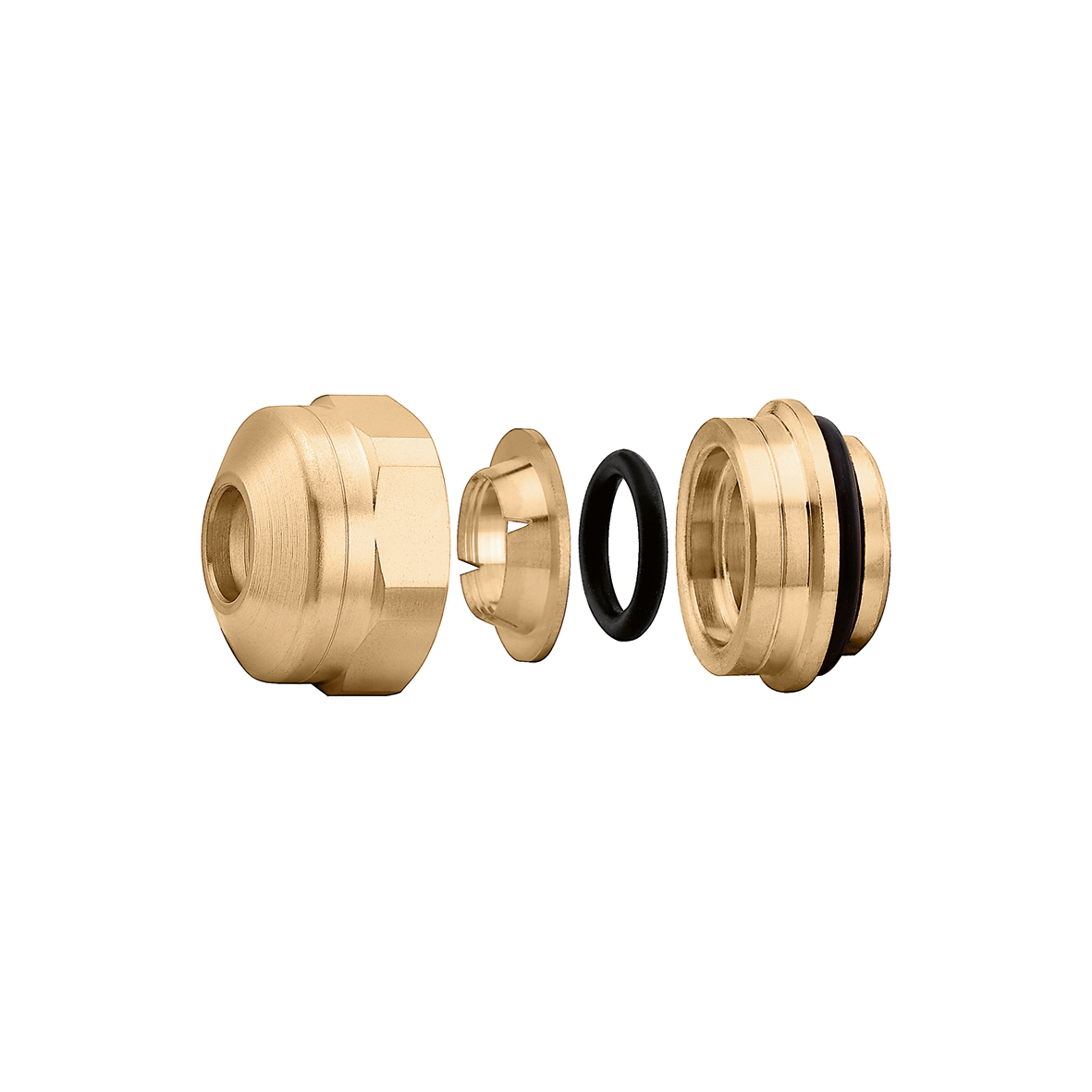

Compression fitting.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
-25–120 °C
Note
Specifically for use with 668.S1 series manifolds. For annealed copper, hard copper, brass, mild steel and stainless steel pipes. With O-Ring seal.
pdf
Drawings and specifications
| Part number | Connection | Pipe diameter | |
|---|---|---|---|
| 347512S1 | G 3/4" (ISO 228-1) F |
Ø 12 |
|
|
3D models
Tender text
Compression fitting. Connection: G 3/4" (ISO 228-1) F, Connection for Caleffi fittings. Pipe diameter: Ø 12. Maximum working pressure: 10 bar. Medium temperature range: -25–120 °C.
SCIP code
50666626-7d15-46fc-bb2a-bdf3b7dea42b
|
|||
| 347514S1 | G 3/4" (ISO 228-1) F |
Ø 14 |
|
|
3D models
Tender text
Compression fitting. Connection: G 3/4" (ISO 228-1) F, Connection for Caleffi fittings. Pipe diameter: Ø 14. Maximum working pressure: 10 bar. Medium temperature range: -25–120 °C.
SCIP code
5bb36ff6-38e2-4f4f-b0c7-33aa48255123
|
|||
bim
Pipe Sizer Caleffi
This application allows for sizing and making calculations for pipes and conduits carrying water or air, respectively for hydraulic or aeraulic plants.
