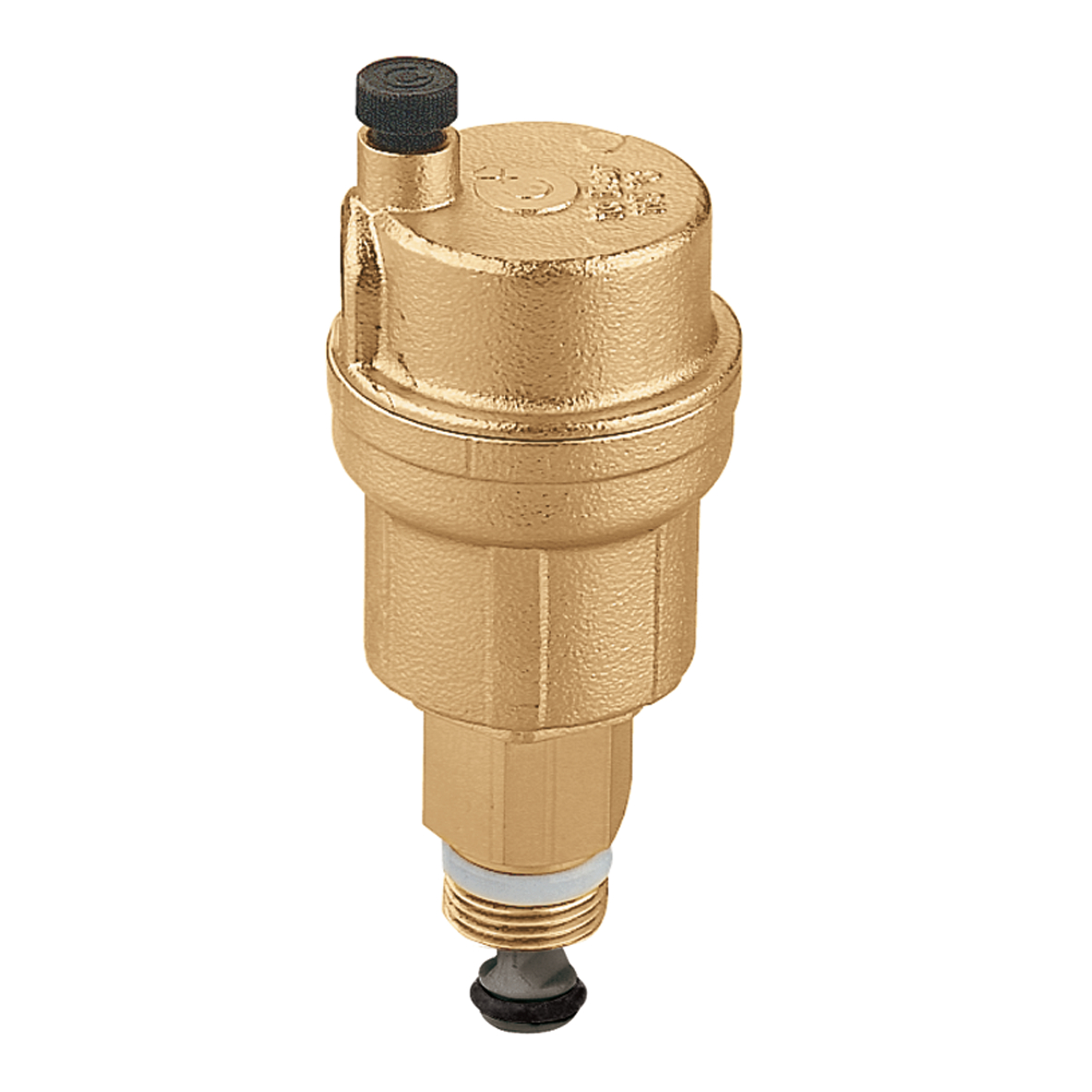

ROBOCAL, Automatic air vent. Complete with automatic shut-off cock.
Product Description
Automatic air vent. Complete with automatic shut-off cock.
Technical data
Maximum working pressure:
10 bar
Maximum air discharge pressure:
6 bar
Medium temperature range:
0–110 °C
Material:
brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 502730 | G 3/8" A (ISO 228-1) M |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic air vent. Complete with automatic shut-off cock.
Connection: G 3/8" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 6 bar. Medium temperature range: 0–110 °C. Material: brass.
SCIP code
56ab3560-bfb2-4469-a370-fc9575ee8975
|
|||
igs
stp
bim
