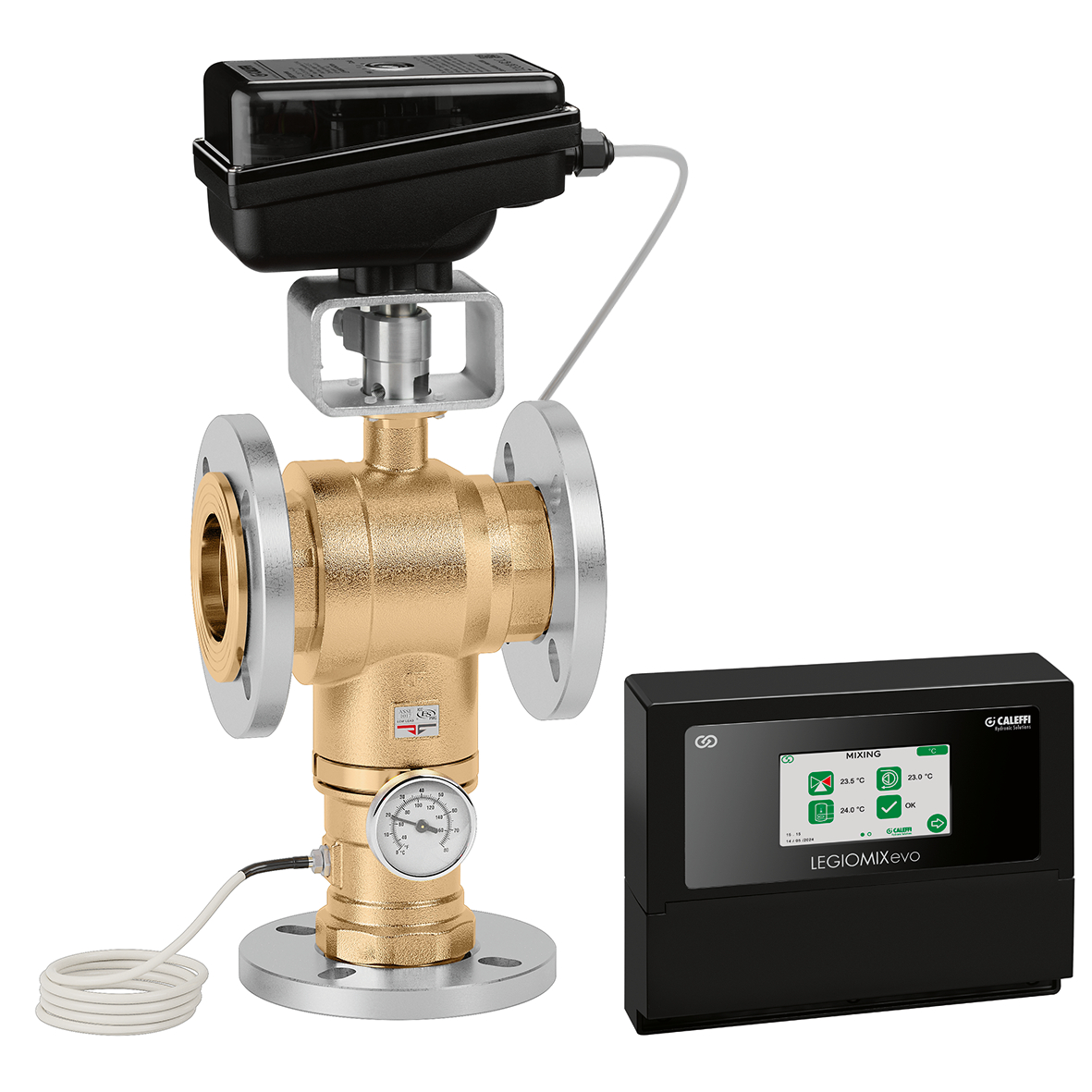

LEGIOMIX®evo, Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
Product Description
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
PATENT
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
5–100 °C
Adjustment temperature range:
20–85 °C
Disinfection temperature range:
40–85 °C
Running power consumption:
(9+10) VA
Protection class:
IP 65 (actuator)
Material:
dezincification resistant brass DR "low lead"
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Electric supply |
|---|---|---|---|
| 600316 | DN 65 (EN 1092-1) PN 16 |
A | 230 V AC |
|
Kv
90,0 m³/h
|
|||
|
3D models
Tender text
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
Connection: DN 65 (EN 1092-1) PN 16. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Adjustment temperature range: 20–85 °C. Disinfection temperature range: 40–85 °C. Electric supply: 230 V AC. Running power consumption: (9+10) VA. Protection class: IP 65 (actuator). Kv: 90,0 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 600318 | DN 80 (EN 1092-1) PN 16 |
A | 230 V AC |
|
Kv
105,0 m³/h
|
|||
|
3D models
Tender text
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
Connection: DN 80 (EN 1092-1) PN 16. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Adjustment temperature range: 20–85 °C. Disinfection temperature range: 40–85 °C. Electric supply: 230 V AC. Running power consumption: (9+10) VA. Protection class: IP 65 (actuator). Kv: 105,0 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 600336 | DN 65 (EN 1092-1) PN 16 |
B1 | 24 V AC |
|
Kv
90,0 m³/h
|
|||
|
3D models
Tender text
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
With auxiliary microswitch.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
Connection: DN 65 (EN 1092-1) PN 16. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Adjustment temperature range: 20–85 °C. Disinfection temperature range: 40–85 °C. Electric supply: 24 V AC. Running power consumption: (9+10) VA. Protection class: IP 65 (actuator). Kv: 90,0 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 600338 | DN 80 (EN 1092-1) PN 16 |
B1 | 24 V AC |
|
Kv
105,0 m³/h
|
|||
|
3D models
Tender text
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
With auxiliary microswitch.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
Connection: DN 80 (EN 1092-1) PN 16. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Adjustment temperature range: 20–85 °C. Disinfection temperature range: 40–85 °C. Electric supply: 24 V AC. Running power consumption: (9+10) VA. Protection class: IP 65 (actuator). Kv: 105,0 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 600356 | DN 65 (EN 1092-1) PN 16 |
B2 | 24 V AC |
|
Kv
90,0 m³/h
|
|||
|
3D models
Tender text
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
With auxiliary microswitch.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
Connection: DN 65 (EN 1092-1) PN 16. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Adjustment temperature range: 20–85 °C. Disinfection temperature range: 40–85 °C. Electric supply: 24 V AC. Running power consumption: (9+10) VA. Protection class: IP 65 (actuator). Kv: 90,0 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 600358 | DN 80 (EN 1092-1) PN 16 |
B2 | 24 V AC |
|
Kv
105,0 m³/h
|
|||
|
3D models
Tender text
Advanced electronic mixing valve with programmable thermal disinfection. With connectivity. Flanged connections.
With auxiliary microswitch.
To be coupled with counterflanges EN 1092-1.
Notes:
- A: 3 point control signal
- B1: 0–10 V control signal with failsafe
- B2: 0–10 V control signal without failsafe
Complete with:
- three-way ball valve;
- actuator;
- regulator;
- flow temperature probe;
- return temperature probe;
- storage temperature probe (optional code 600003).
Connection: DN 80 (EN 1092-1) PN 16. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Adjustment temperature range: 20–85 °C. Disinfection temperature range: 40–85 °C. Electric supply: 24 V AC. Running power consumption: (9+10) VA. Protection class: IP 65 (actuator). Kv: 105,0 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
