DIRTMAG®, Magnetic dirt separator with three magnets (ASME & CRN)
Product Description

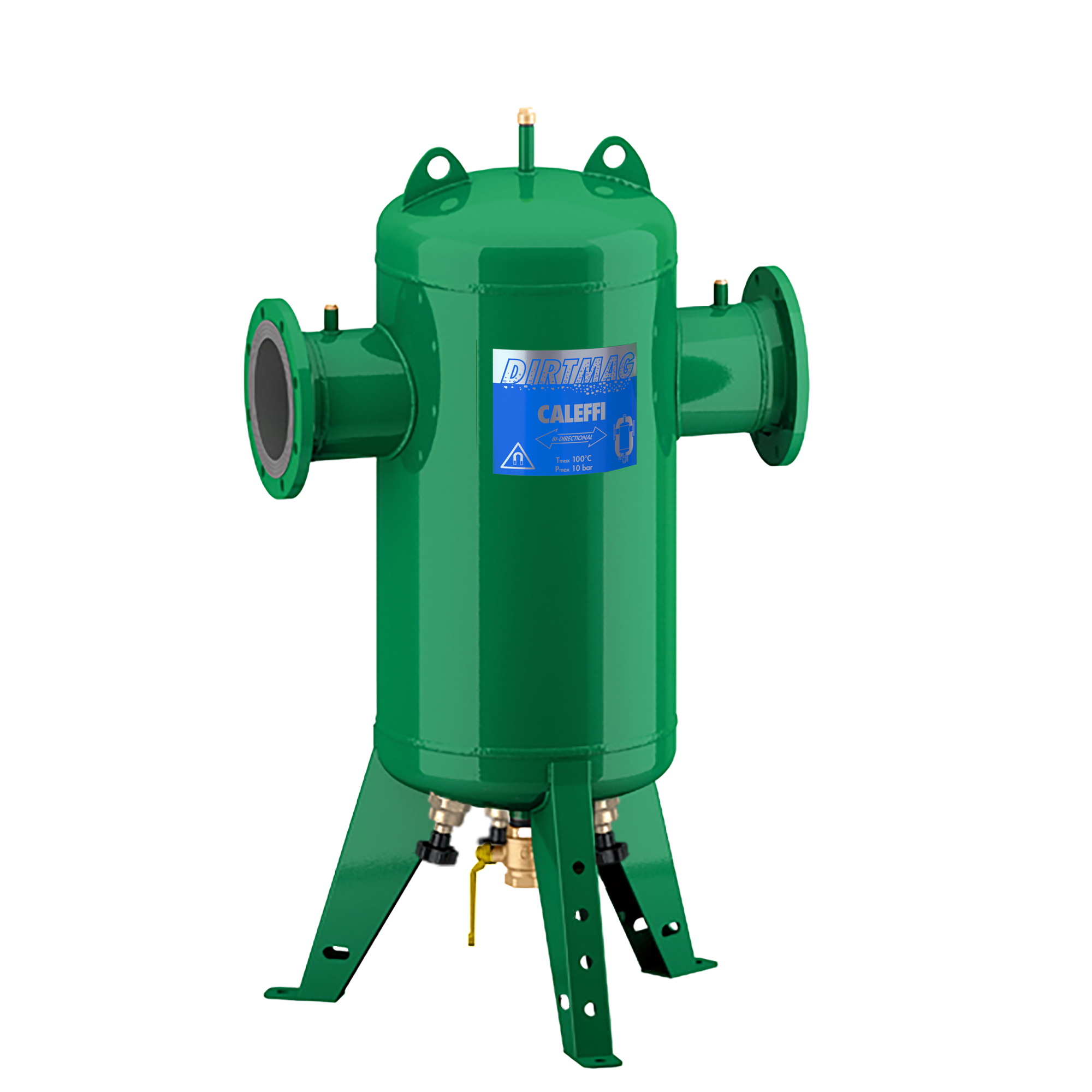

Magnetic dirt separator with three magnets (ASME & CRN)
Stainless steel and HDPE internal elements
¾" MNPT top thread with brass cap
Complete with:
- 2" FNPT drain valve
- Thermowell tap (NPT): ½" inlet/outlet flanges
Technical data
Maximum operating pressure:
200 psi
Medium temperature range:
32 – 270 °F
Material:
steel
Note
NA prefix indicates ASME tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered thru 12". Consult factory for 14"
Download
Drawings and specifications
Part number | Connection | ||
---|---|---|---|
NA546520AM | 8'' ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Magnetic dirt separator with three magnets (ASME & CRN)
Stainless steel and HDPE internal elements
¾" MNPT top thread with brass cap
Complete with:
2" FNPT drain valve
Thermowell tap (NPT): ½" inlet/outlet flanges
connection: 8'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 200 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546525AM | 10'' ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Magnetic dirt separator with three magnets (ASME & CRN)
Stainless steel and HDPE internal elements
¾" MNPT top thread with brass cap
Complete with:
2" FNPT drain valve
Thermowell tap (NPT): ½" inlet/outlet flanges
connection: 10'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 200 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546530AM | 12'' ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Magnetic dirt separator with three magnets (ASME & CRN)
Stainless steel and HDPE internal elements
¾" MNPT top thread with brass cap
Complete with:
2" FNPT drain valve
Thermowell tap (NPT): ½" inlet/outlet flanges
connection: 12'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 200 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546535AM | 14'' ANSI 150 flange ASME |
||
3D models
Tender text
Magnetic dirt separator with three magnets (ASME & CRN)
Stainless steel and HDPE internal elements
¾" MNPT top thread with brass cap
Complete with:
2" FNPT drain valve
Thermowell tap (NPT): ½" inlet/outlet flanges
connection: 14'' ANSI 150 flange, ASME. Maximum operating pressure: 200 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
