Series 132

Quicksetter™, Balancing valve with flow meter (press)

Go to

Download high resolution

Product Description

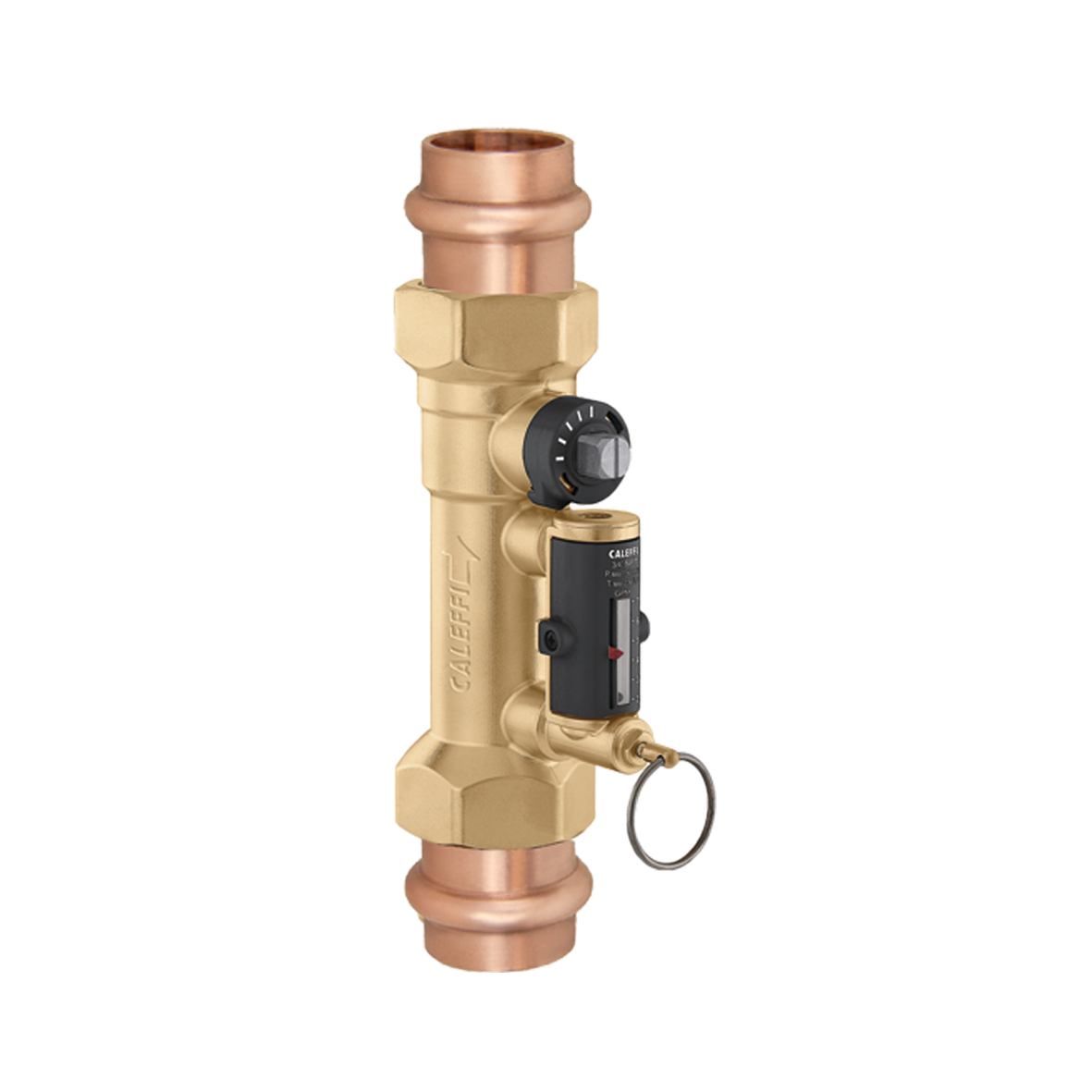

Balancing valve with flow meter (press)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:

Built-in flow meter for accurate readings
Insulation jacket

Technical data

Maximum operating pressure: 150 psi

Medium temperature range: 14 – 230 °F

Maximum glycol %: 50 %

Medium: water, glycol solutions

Material: brass

Download

Drawings and specifications

Part number	Connection	Flow rate working range
132436A	1/2" press	0.5 – 1.8 gpm
3D models bim Tender text Balancing valve with flow meter (press) For use in hydronic applications Manually adjustable to desired flow rate Complete with: Built-in flow meter for accurate readings Insulation jacket connection: 1/2", press. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.5 – 1.8 gpm. Material: brass.
132556A	3/4" press	2.0 – 7.0 gpm
3D models bim Tender text Balancing valve with flow meter (press) For use in hydronic applications Manually adjustable to desired flow rate Complete with: Built-in flow meter for accurate readings Insulation jacket connection: 3/4", press. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 2.0 – 7.0 gpm. Material: brass.
132666A	1" press	3.0 – 10 gpm
3D models bim Tender text Balancing valve with flow meter (press) For use in hydronic applications Manually adjustable to desired flow rate Complete with: Built-in flow meter for accurate readings Insulation jacket connection: 1", press. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 3.0 – 10 gpm. Material: brass.
132776A	1 1/4" press	5.0 – 19 gpm
3D models bim Tender text Balancing valve with flow meter (press) For use in hydronic applications Manually adjustable to desired flow rate Complete with: Built-in flow meter for accurate readings Insulation jacket connection: 1 1/4", press. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 5.0 – 19 gpm. Material: brass.
132886A	1 1/2" press	8.0 – 32 gpm
3D models bim Tender text Balancing valve with flow meter (press) For use in hydronic applications Manually adjustable to desired flow rate Complete with: Built-in flow meter for accurate readings Insulation jacket connection: 1 1/2", press. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 8.0 – 32 gpm. Material: brass.
132996A	2" press	12 – 50 gpm
3D models bim Tender text Balancing valve with flow meter (press) For use in hydronic applications Manually adjustable to desired flow rate Complete with: Built-in flow meter for accurate readings Insulation jacket connection: 2", press. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 12 – 50 gpm. Material: brass.
