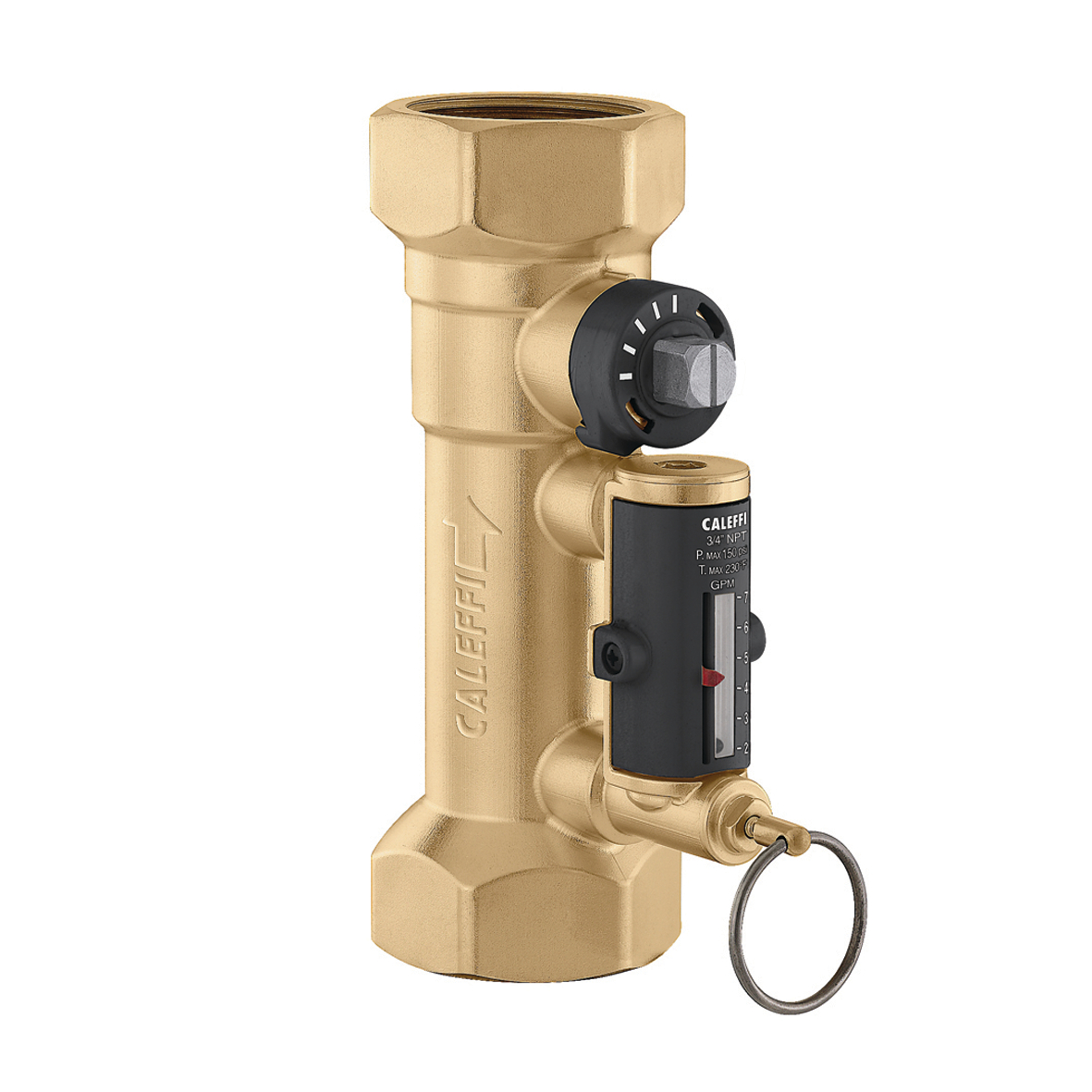

Quicksetter™, Balancing valve with flow meter (FNPT)
Product Description
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
- Built-in flow meter for accurate readings
- Insulation jacket
Technical data
Maximum operating pressure:
150 psi
Medium temperature range:
14 – 230 °F
Maximum glycol %:
50 %
Medium:
water, glycol solutions
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Flow rate working range | |
|---|---|---|---|
| 132432A | 1/2" FNPT |
0.5 – 1.8 gpm | |
|
3D models
Tender text
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
Built-in flow meter for accurate readings
Insulation jacket
connection: 1/2" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.5 – 1.8 gpm. Material: brass.
SCIP code
7586e721-ba65-40ca-a457-f3afa4428c09
|
|||
| 132552A | 3/4" FNPT |
2.0 – 7.0 gpm | |
|
3D models
Tender text
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
Built-in flow meter for accurate readings
Insulation jacket
connection: 3/4" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 2.0 – 7.0 gpm. Material: brass.
SCIP code
8f40549a-bdc0-41da-bdea-e32f10d66c04
|
|||
| 132662A | 1" FNPT |
3.0 – 10 gpm | |
|
2D drawings
dxf
Share this file
Download this file
dwg
Share this file
Download this file
3D models
Tender text
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
Built-in flow meter for accurate readings
Insulation jacket
connection: 1" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 3.0 – 10 gpm. Material: brass.
SCIP code
c25eb1d9-d84b-4b03-878f-4df5ad37afba
|
|||
| 132772A | 1 1/4" FNPT |
5.0 – 19 gpm | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
Built-in flow meter for accurate readings
Insulation jacket
connection: 1 1/4" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 5.0 – 19 gpm. Material: brass.
SCIP code
f32372ea-8ada-4753-9acd-08aa52c6ce72
|
|||
| 132882A | 1 1/2" FNPT |
8.0 – 32 gpm | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
Built-in flow meter for accurate readings
Insulation jacket
connection: 1 1/2" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 8.0 – 32 gpm. Material: brass.
SCIP code
2f9b9952-9d15-4142-99da-24d0cfa98dcb
|
|||
| 132992A | 2" FNPT |
12 – 50 gpm | |
|
3D models
Tender text
Balancing valve with flow meter (FNPT)
For use in hydronic applications
Manually adjustable to desired flow rate
Complete with:
Built-in flow meter for accurate readings
Insulation jacket
connection: 2" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 14 – 230 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Flow rate working range: 12 – 50 gpm. Material: brass.
SCIP code
c5858824-bd82-4b46-bd8a-3e205958ce86
|
|||
