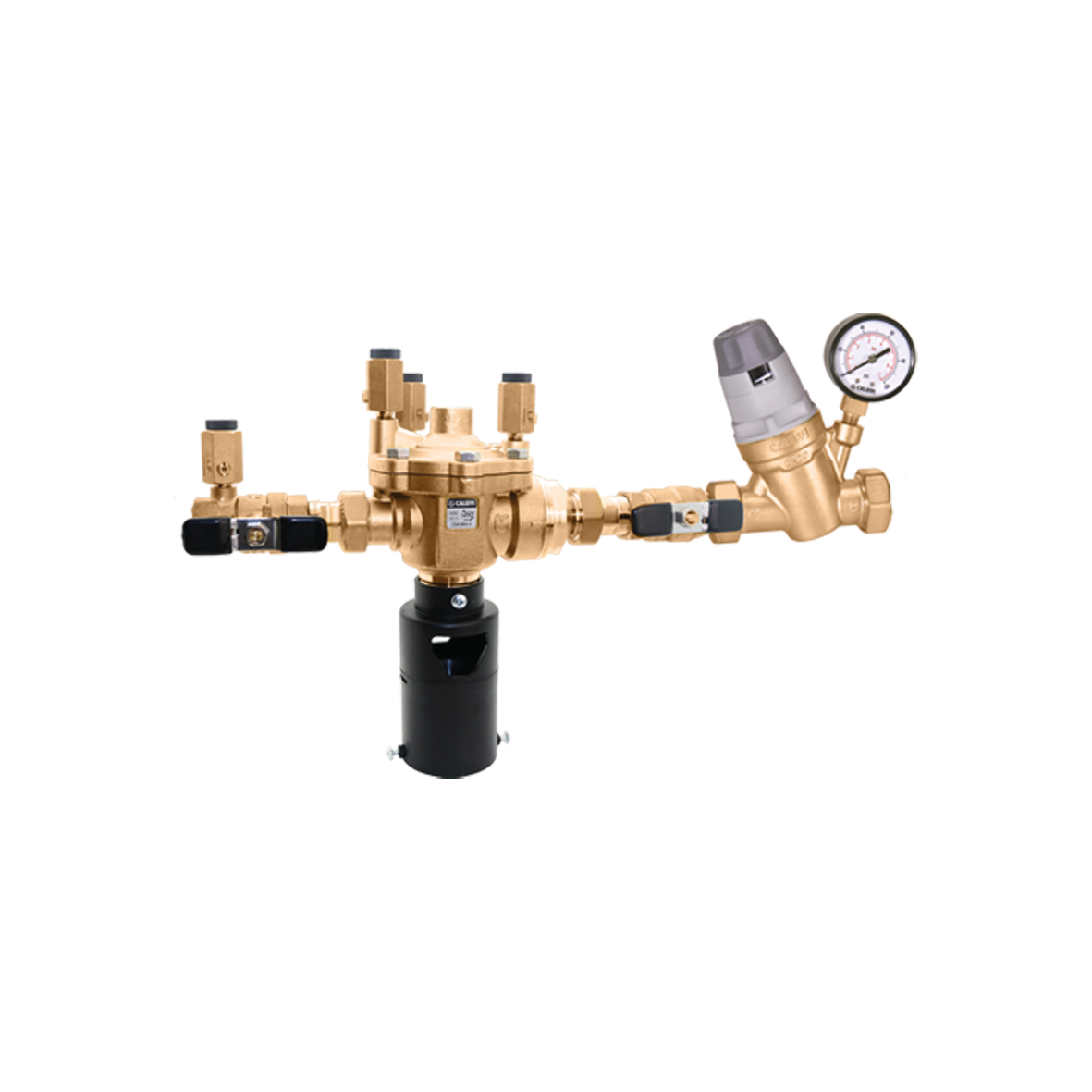

AutoFill™, Automatic filling valve with testable backflow preventer (3/4" - 1")
Product Description
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
Technical data
Maximum working pressure:
150 psi
Maximum working temperature:
140 °F
Setting:
15 psi
Adjustment pressure range:
6–90 psi
Pressure gauge scale:
0–100 psi
Pressure gauge scale - Notes:
0–7 bar
pdf
Drawings and specifications
| Part number | IN connection | OUT connection | Note |
|---|---|---|---|
| 574151A | 3/4" FNPT |
3/4" MNPT union |
Outlet fittings |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
IN connection: 3/4" FNPT. OUT connection: 3/4" MNPT, union. Maximum working pressure: 150 psi. Maximum working temperature: 140 °F. Setting: 15 psi. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar ).
|
|||
| 574156A | 3/4" press |
3/4" |
- |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
IN connection: 3/4", press. OUT connection: 3/4". Maximum working pressure: 150 psi. Maximum working temperature: 140 °F. Setting: 15 psi. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar ).
|
|||
| 574157A | 3/4" press |
3/4" MNPT union |
Outlet fittings |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
IN connection: 3/4", press. OUT connection: 3/4" MNPT, union. Maximum working pressure: 150 psi. Maximum working temperature: 140 °F. Setting: 15 psi. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar ).
|
|||
| 574161A | 1" FNPT |
1" MNPT |
- |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
IN connection: 1" FNPT. OUT connection: 1" MNPT. Maximum working pressure: 150 psi. Maximum working temperature: 140 °F. Setting: 15 psi. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar ).
|
|||
| 574166A | 1" press |
1" |
- |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
IN connection: 1", press. OUT connection: 1". Maximum working pressure: 150 psi. Maximum working temperature: 140 °F. Setting: 15 psi. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar ).
|
|||
| 574167A | 1" press |
1" MNPT union |
Outlet fittings |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (3/4" - 1")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
IN connection: 1", press. OUT connection: 1" MNPT, union. Maximum working pressure: 150 psi. Maximum working temperature: 140 °F. Setting: 15 psi. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar ).
|
|||
