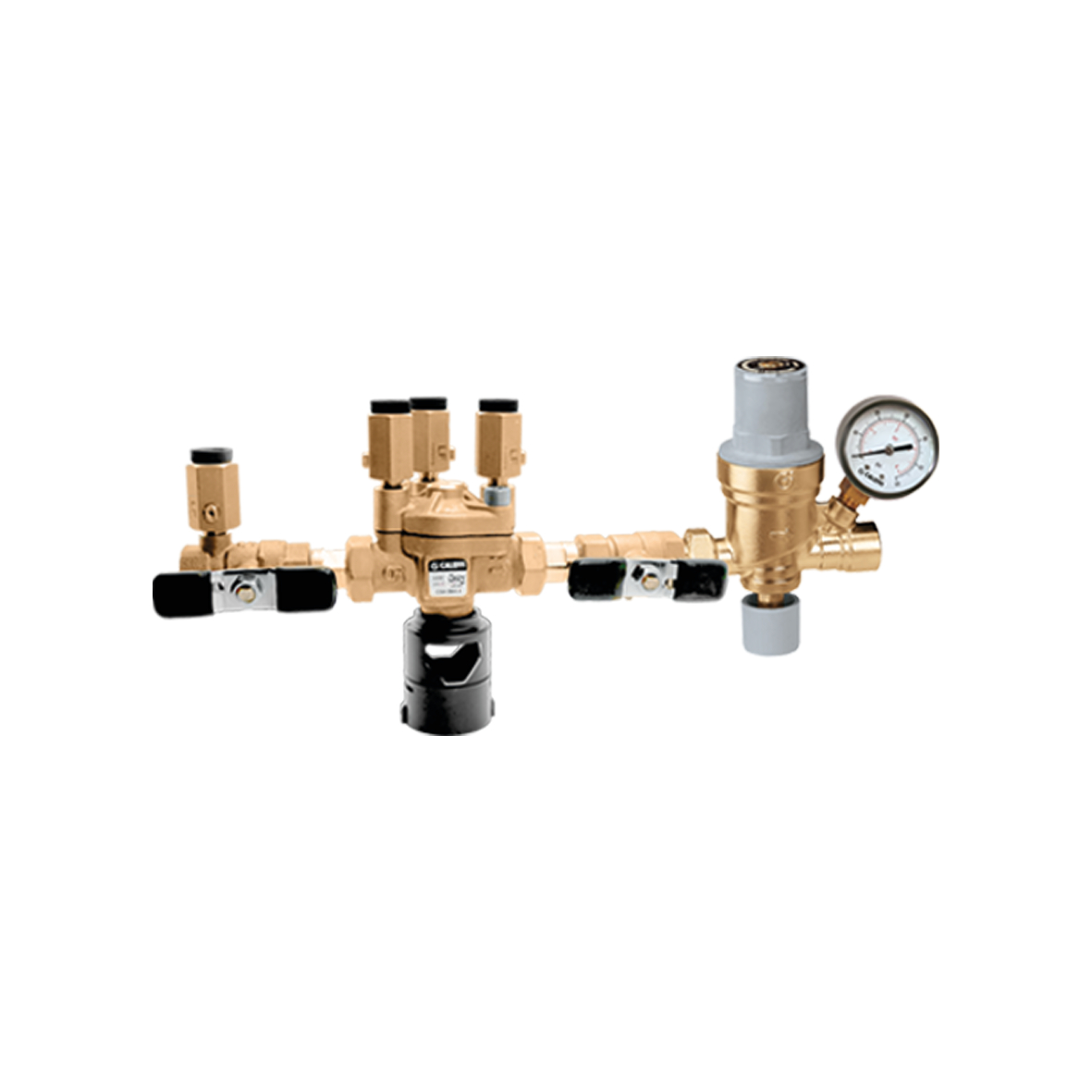

AutoFill™, Automatic filling valve with testable backflow preventer (1/2")
Product Description
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
40–150 °F
Adjustment pressure range:
3–60 psi
Pressure gauge scale:
0—60 psi
Pressure gauge scale - Notes:
0–4 bar
Material:
brass
pdf
Drawings and specifications
| Code | Connection | Note | |
|---|---|---|---|
| 574002A | 1/2" FNPT |
- | |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
connection: 1/2" FNPT. Maximum operating pressure: 150 psi. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 574012A | 1/2" FNPT |
Gauge | |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
connection: 1/2" FNPT. Maximum operating pressure: 150 psi. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 574206A | 1/2" press |
- | |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
connection: 1/2", press. Maximum operating pressure: 150 psi. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 574207A | 1/2" |
- | |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
connection: 1/2". Maximum operating pressure: 150 psi. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 574216A | 1/2" press |
Gauge | |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
connection: 1/2", press. Maximum operating pressure: 150 psi. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 574217A | 1/2" FNPT |
Gauge | |
|
3D models
Tender text
Automatic filling valve with testable backflow preventer (1/2")
Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer.
connection: 1/2" FNPT. Maximum operating pressure: 150 psi. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
