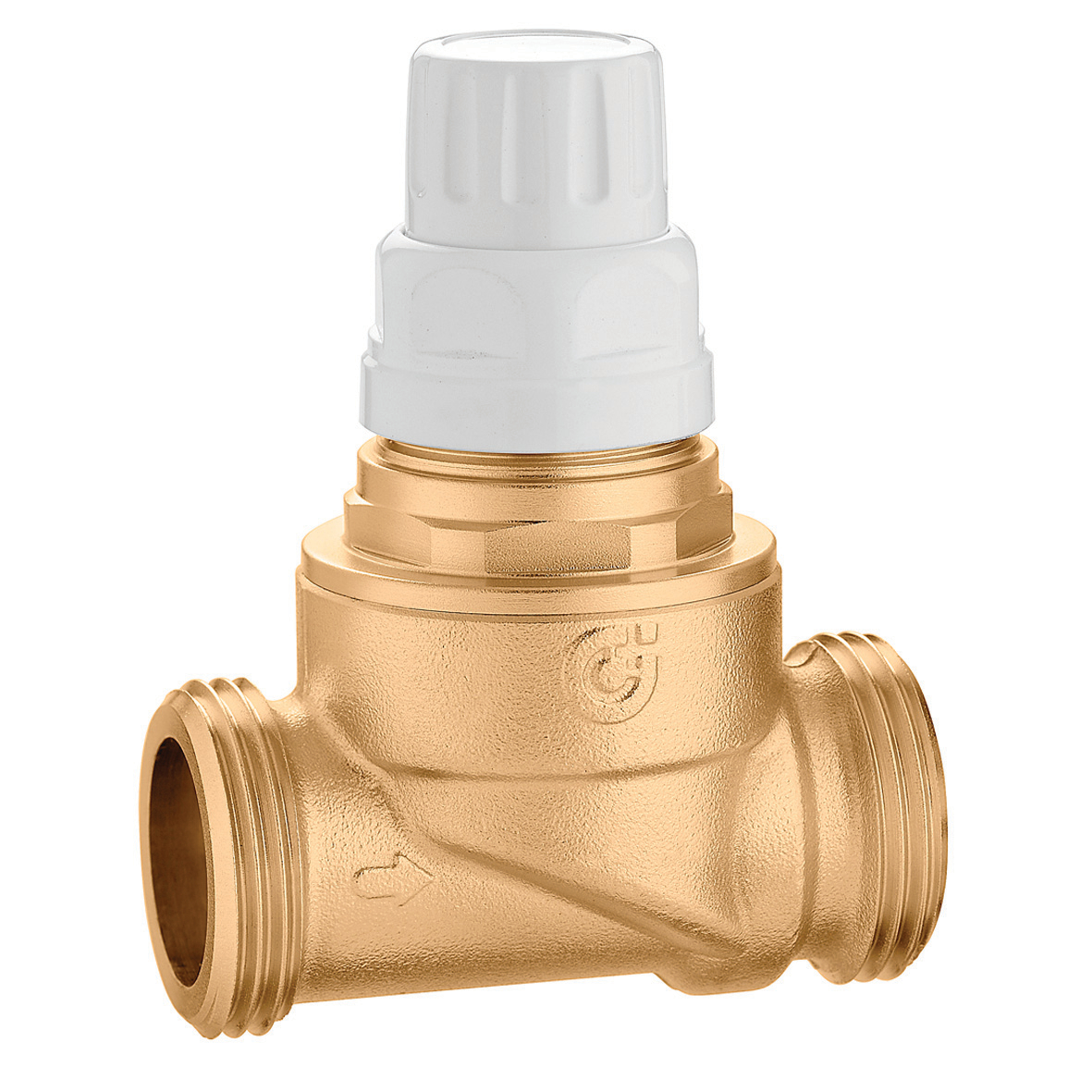

Two-way zone valve with high flow rate.
Product Description
Two-way zone valve with high flow rate.
For installation of series 6563, 6561, 6562 and 6564 thermo-electric actuators.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
0–95 °C
△p max.:
2,5 bar
Download
Drawings and specifications
Part number | Connection | Kv | |
---|---|---|---|
676500 | G 1" A (ISO 228-1) M |
4,77 m³/h | |
2D drawings
3D models
Tender text
Two-way zone valve with high flow rate. For installation of series 6563, 6561, 6562 and 6564 thermo-electric actuators. Connection: G 1" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–95 °C. △p max.: 2,5 bar. Kv: 4,77 m³/h.
SCIP code
99a16c4c-1337-4793-95cc-5ab8053ba0ab
|
