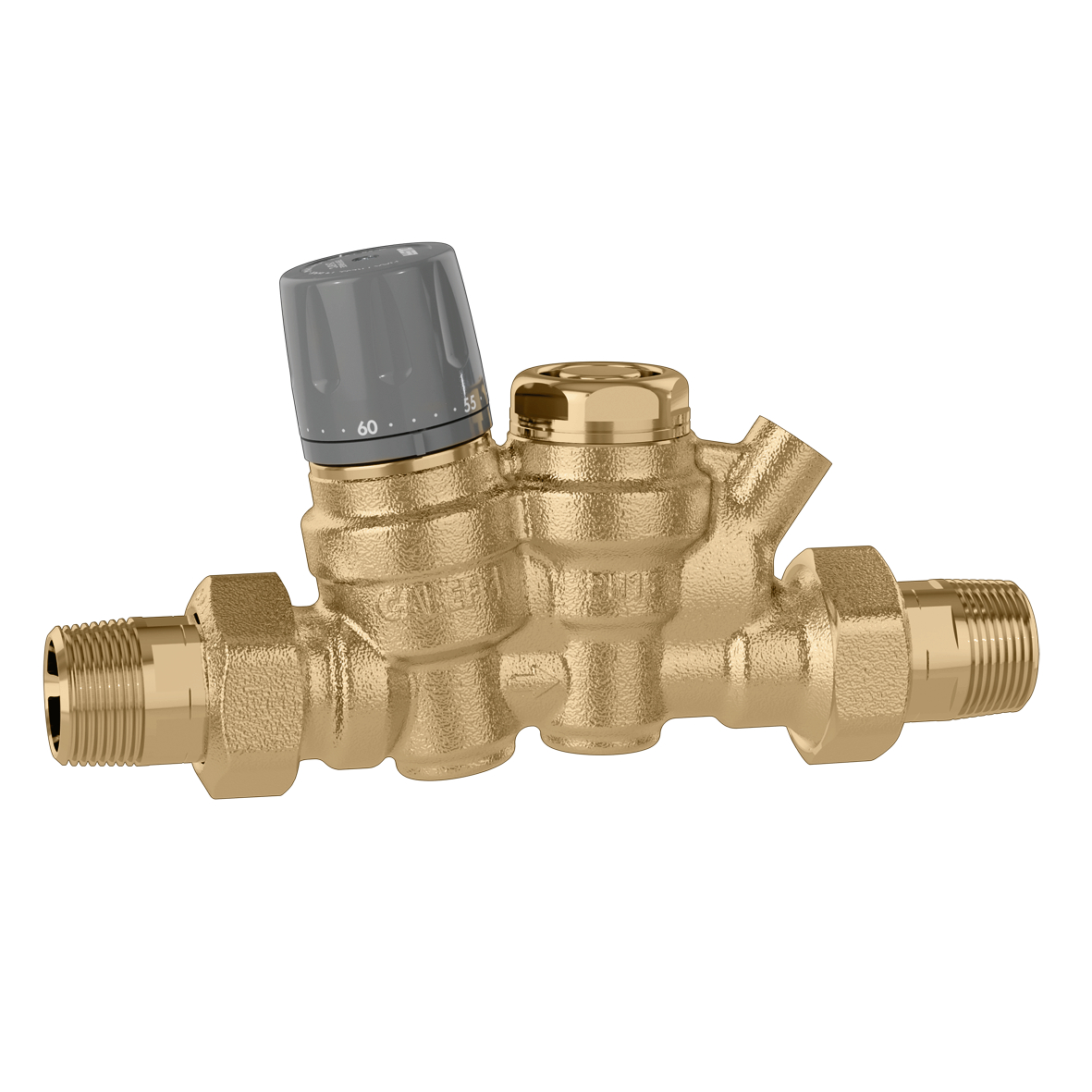

Thermostatic regulator with built-in check valve for domestic hot water recirculation circuits.
Product Description
Thermostatic regulator with built-in check valve for domestic hot water recirculation circuits.
Fitted for automatic or controlled thermal disinfection function.
With pocket for temperature gauge.
Technical data
Maximum working pressure:
16 bar
Material:
dezincification resistant brass DR "low lead"
Certifications
pdf
Drawings and specifications
| Part number | Connection | Adjustment temperature range | DN |
|---|---|---|---|
| 116144 | R 1/2" (EN 10226-1) M |
35–60 °C | DN 20 (body) |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Thermostatic regulator with built-in check valve for domestic hot water recirculation circuits.
Fitted for automatic or controlled thermal disinfection function.
With pocket for temperature gauge.
Connection: R 1/2" (EN 10226-1) M. Maximum working pressure: 16 bar. Adjustment temperature range: 35–60 °C. DN: DN 20 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
77a5486c-f5c2-4ebc-b59b-1f721818367f
|
|||
| 116154 | R 3/4" (EN 10226-1) M |
35–60 °C | DN 20 (body) |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Thermostatic regulator with built-in check valve for domestic hot water recirculation circuits.
Fitted for automatic or controlled thermal disinfection function.
With pocket for temperature gauge.
Connection: R 3/4" (EN 10226-1) M. Maximum working pressure: 16 bar. Adjustment temperature range: 35–60 °C. DN: DN 20 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
77a5486c-f5c2-4ebc-b59b-1f721818367f
|
|||
igs
stp
bim
