Pressure reducing valve with replaceable cartridge.
Product Description
Pressure reducing valve with replaceable cartridge.
Technical data
Maximum upstream pressure:
25 bar
Medium temperature range:
2–80 °C
Adjustment pressure range:
0,5–6 bar
Material:
dezincification resistant brass DR
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 536240 | G 1/2" (ISO 228-1) F |
With 1/4” F pressure gauge connection. | |
|
3D models
Tender text
Pressure reducing valve with replaceable cartridge.
Connection: G 1/2" (ISO 228-1) F. Maximum upstream pressure: 25 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: dezincification resistant brass DR.
SCIP code
d4e7bd26-a92f-47dc-bbcf-3edd0c807976
|
|||
| 536250 | G 3/4" (ISO 228-1) F |
With 1/4” F pressure gauge connection. | |
|
3D models
Tender text
Pressure reducing valve with replaceable cartridge.
Connection: G 3/4" (ISO 228-1) F. Maximum upstream pressure: 25 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: dezincification resistant brass DR.
SCIP code
564eefaa-ab24-4521-b684-bc2bad5dd3d9
|
|||
| 536260 | G 1" (ISO 228-1) F |
With 1/4” F pressure gauge connection. | |
|
3D models
Tender text
Pressure reducing valve with replaceable cartridge.
Connection: G 1" (ISO 228-1) F. Maximum upstream pressure: 25 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: dezincification resistant brass DR.
SCIP code
a20145a1-f534-4299-98fa-04ed53138a07
|
|||

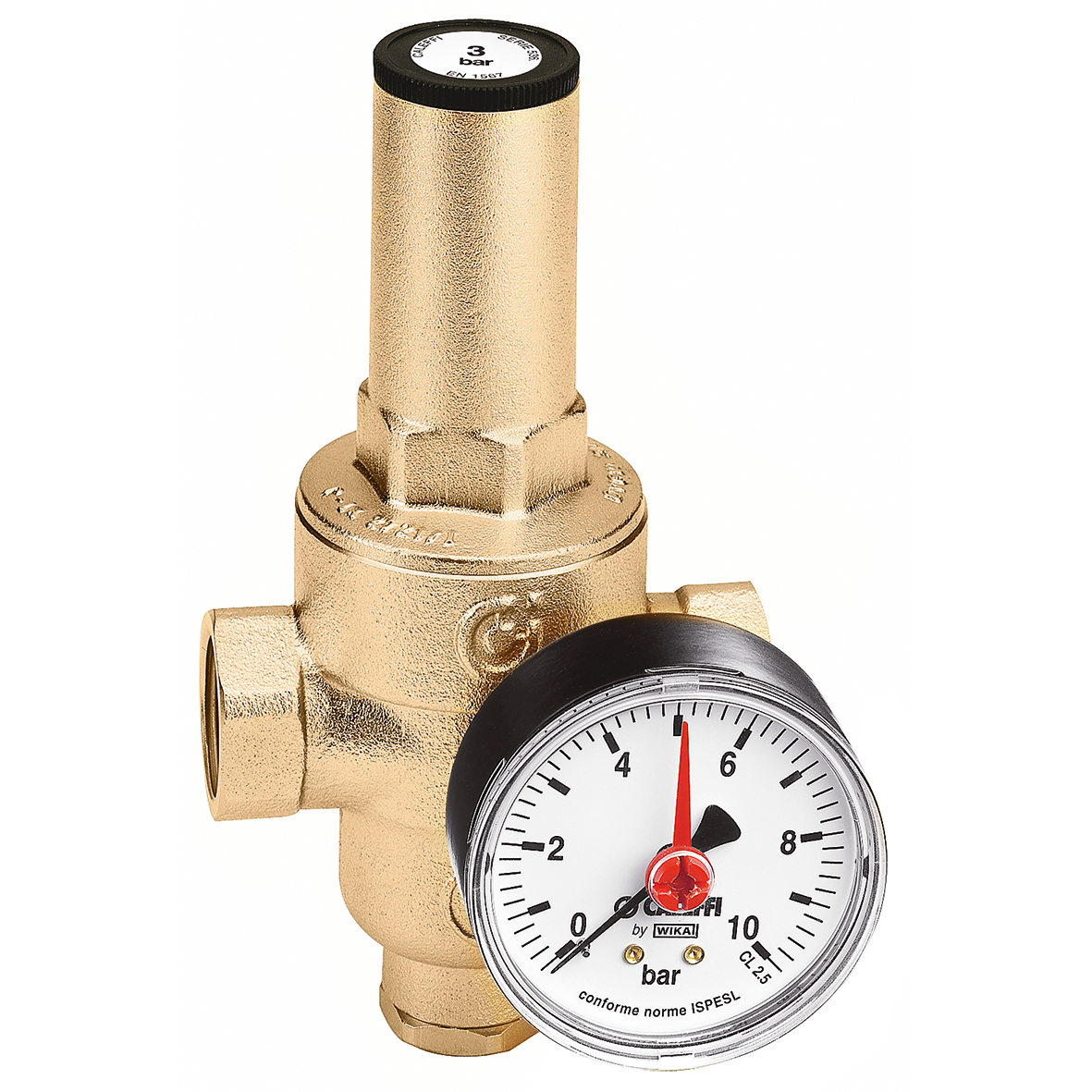

| 536241 | G 1/2" (ISO 228-1) F |
With pressure gauge 0–10 bar. | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Pressure reducing valve with replaceable cartridge.
Connection: G 1/2" (ISO 228-1) F. Maximum upstream pressure: 25 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: dezincification resistant brass DR.
SCIP code
fc54be0c-325b-4f6d-a730-a63c31d355ce
|
|||
| 536251 | G 3/4" (ISO 228-1) F |
With pressure gauge 0–10 bar. | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Pressure reducing valve with replaceable cartridge.
Connection: G 3/4" (ISO 228-1) F. Maximum upstream pressure: 25 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: dezincification resistant brass DR.
SCIP code
dd1ab5d3-1fea-4d00-93fb-2a7e6876d79b
|
|||
| 536261 | G 1" (ISO 228-1) F |
With pressure gauge 0–10 bar. | |
|
3D models
Tender text
Pressure reducing valve with replaceable cartridge.
Connection: G 1" (ISO 228-1) F. Maximum upstream pressure: 25 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: dezincification resistant brass DR.
SCIP code
b3ac1774-0b95-4b83-8c0a-b499219fa900
|
|||
