Direct supply unit DN 32, for heating and cooling systems.
Product Description

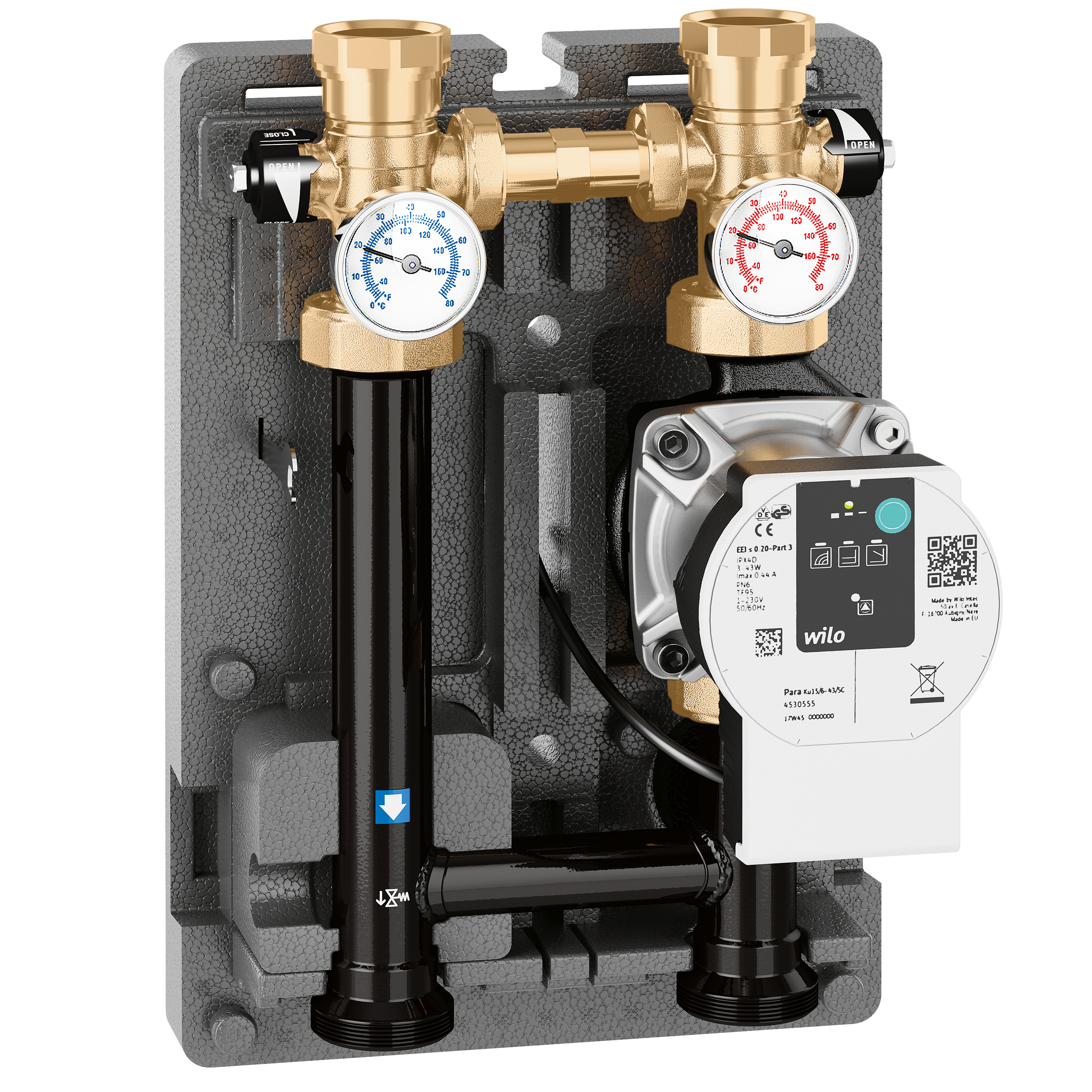

Direct supply unit DN 32, for heating and cooling systems.
Right - left convertible.
With insulation.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
5–100 °C
Electric supply:
230 V AC
Outlet centre distance:
125 mm
Type of pump:
Para 25-9
Certifications
pdf
Drawings and specifications
| Part number | System side connection | Boiler side connection | Flow rate with available head 4 m w.g. |
|---|---|---|---|
| 165641HE4 | G 1 1/4" (ISO 228-1) F end outlet |
G 1 1/2" A (ISO 228-1) M |
2,7 m³/h |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Direct supply unit DN 32, for heating and cooling systems.
With insulation.
Right - left convertible. System side connection: G 1 1/4" (ISO 228-1) F, end outlet. Boiler side connection: G 1 1/2" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Electric supply: 230 V AC. Outlet centre distance: 125 mm. Flow rate with available head 4 m w.g.: 2,7 m³/h. Type of pump: Para 25-9.
SCIP code
8214c1ca-637c-4e7c-8ae8-767c160c2d04
|
|||
igs
stp
bim
Pipe Sizer Caleffi
This application allows for sizing and making calculations for pipes and conduits carrying water or air, respectively for hydraulic or aeraulic plants.
