Series 539..H

Combined group for pressure and temperature control in domestic water systems.

Go to
Download high resolution

Product Description

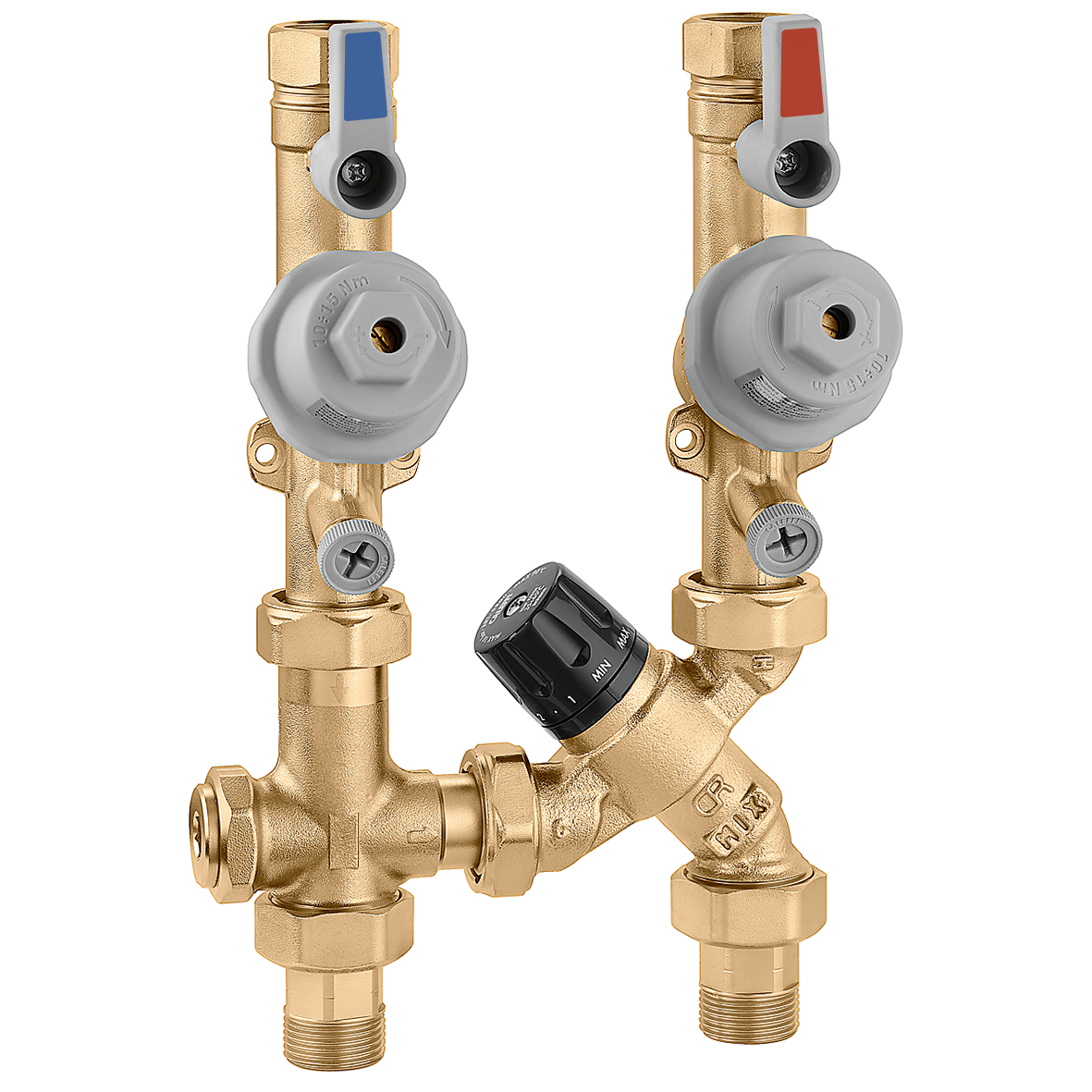

Combined group for pressure and temperature control in domestic water systems.
Complete with:
- 539H series combined unit, cold water circuit;
- 539H series combined unit, hot water circuit;
- adjustable thermostatic mixing valve with advanced thermal performance and anti-scald function;
- connection tee complete with check valve;
- pressure gauges (optional).

Thermostatic mixing valve certified to EN 1111 and EN 1287.

Technical data

Maximum working pressure: 10 bar
Medium temperature range: 2–80 °C
Material: dezincification resistant brass DR "low lead"
Low Lead

Certifications

KIWA UK
WRAS
ACS
KIWA

Drawings and specifications

Part number Inlet connection Outlet connection Adjustment temperature range
Kv
1,7 m³/h
2D drawings
Download
Download
3D models
Download
Download
Tender text
Combined group for pressure and temperature control in domestic water systems. Consisting of: - 539H series combined unit, cold water circuit - 539H series combined unit, hot water circuit - adjustable thermostatic mixing valve with advanced thermal performance and anti-scald function - connection tee complete with check valve - pressure gauges (optional). CR dezincification resistant alloy body "LOW LEAD". Inlet connection: Rp 3/4" (EN 10226-1) F, end outlet, union. Outlet connection: G 3/4" A (ISO 228-1) M, union. Maximum working pressure: 10 bar. Medium temperature range: 2–80 °C. Adjustment temperature range: 35–65 °C. Kv: 1,7 m³/h. Material: dezincification resistant brass DR "low lead".
SCIP code
c4dc6a6e-9ca3-4939-9632-12eb0f176bfa
