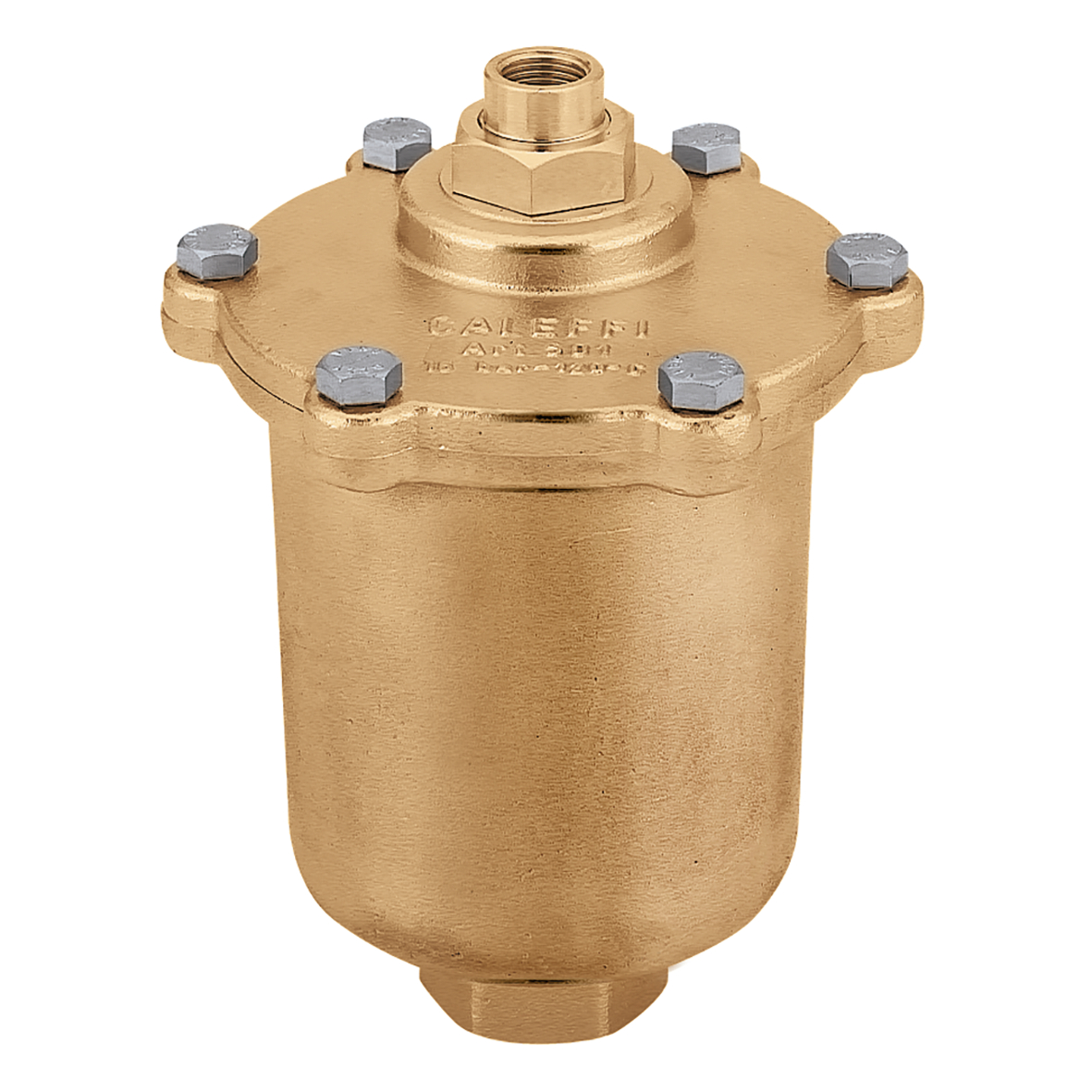

MAXCAL, Automatic air vent for heating, cooling and refrigeration.
Product Description
Automatic air vent for heating, cooling and refrigeration.
High discharge capacity.
Brass body and cover, stainless steel internal components.
Technical data
Maximum working pressure:
16 bar
Maximum air discharge pressure:
6 bar
Medium temperature range:
-20–120 °C
Note
Always replace the valve cap with Caleffi 5620 or R59681 AQUASTOP hygroscopic safety cap in all places where inspection is not possible.
Certifications

Download
Drawings and specifications
Part number | Connection | Drain connection | |
---|---|---|---|
501500 | G 3/4" (ISO 228-1) F |
G 3/8" (ISO 228-1) F |
|
2D drawings
3D models
Tender text
Automatic air vent for heating, cooling and refrigeration. High discharge capacity.
Brass body and cover, stainless steel internal components. Connection: G 3/4" (ISO 228-1) F. Drain connection: G 3/8" (ISO 228-1) F. Maximum working pressure: 16 bar. Maximum air discharge pressure: 6 bar. Medium temperature range: -20–120 °C.
SCIP code
6e9ef4b4-3813-4d22-9ba5-2e17872d7c20
|
