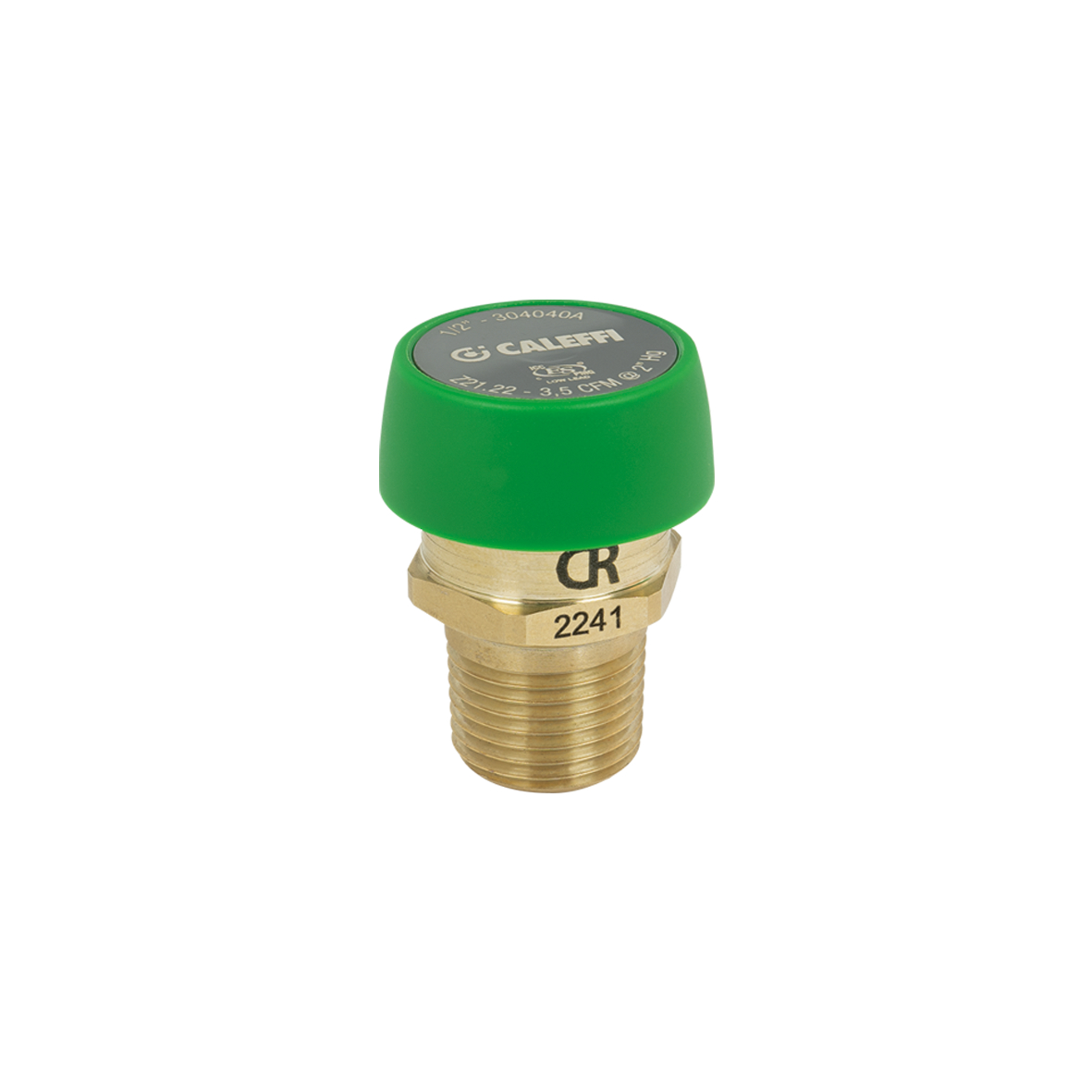

Vacu-Stop™, Vacuum relief valve
Product Description
Vacuum relief valve
For water and low pressure steam applications
Suitable for installation on hot and cold water storage tanks
Technical data
Maximum operating pressure:
200 psi
Medium temperature range:
32 – 250 °F
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 304040A | 1/2" MNPT |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 304040A, Vacu-Stop™.
Vacuum relief valve
For water and low pressure steam applications
Suitable for installation on hot and cold water storage tanks
connection: 1/2" MNPT. Maximum operating pressure: 200 psi. Medium temperature range: 32 – 250 °F. Material: DZR low lead brass.
|
|||
| 304050A | 3/4" MNPT |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 304050A, Vacu-Stop™.
Vacuum relief valve
For water and low pressure steam applications
Suitable for installation on hot and cold water storage tanks
connection: 3/4" MNPT. Maximum operating pressure: 200 psi. Medium temperature range: 32 – 250 °F. Material: DZR low lead brass.
|
|||
igs
stp
bim
