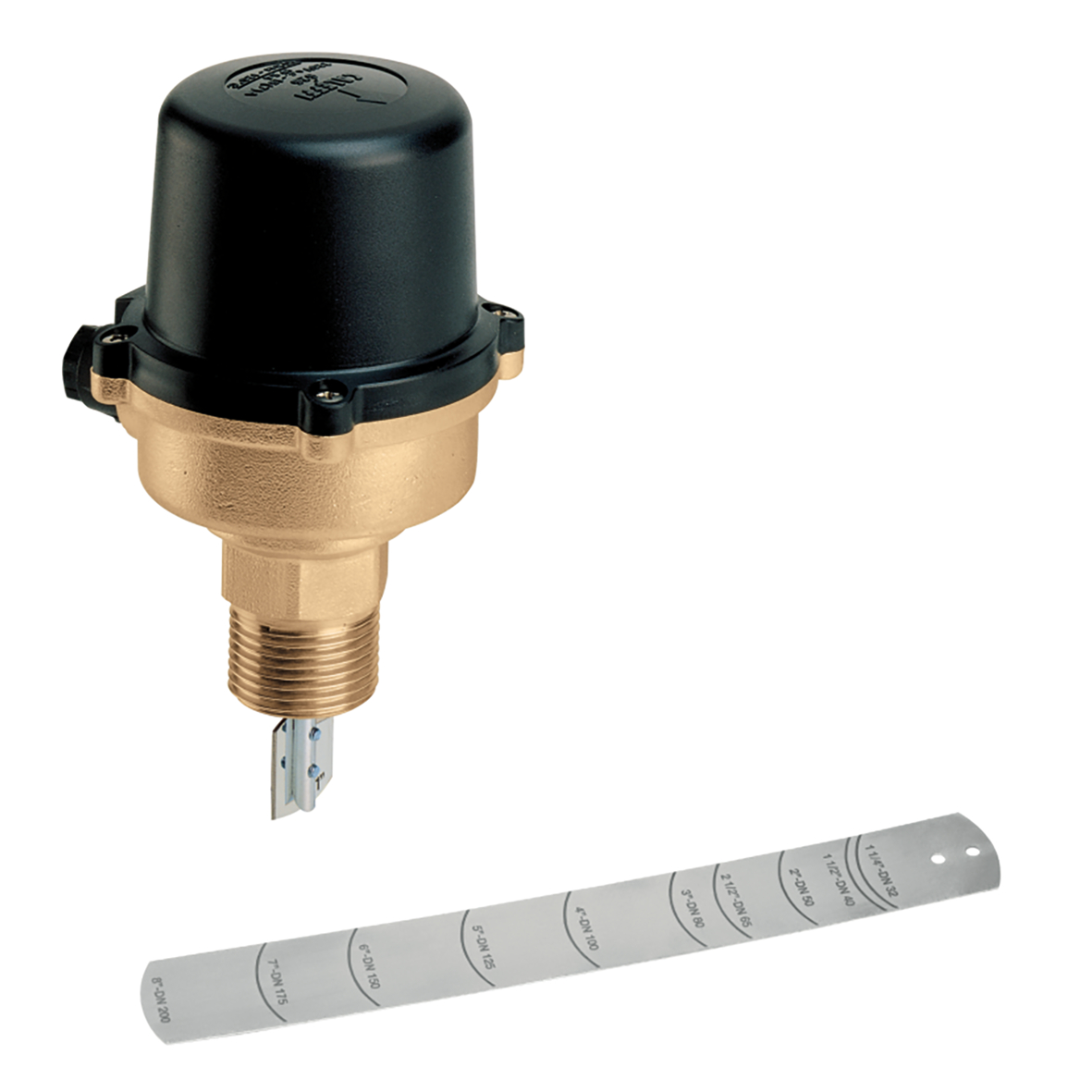

Series 626

Uni-Switch™, Universal flow switch

Go to
Download high resolution

Product Description

Universal flow switch
Compatible with 1" to 8" pipe size
Switch contacts: NO or NC
With auxiliary microswitch.

Technical data

Minimum flow rate: 5.7 gpm
Medium temperature range - Note: without ice
Medium temperature range: -20–250 °F
Maximum operating pressure: 150 psi
Find us in MasterSpec

Download

01052_NA.pdf pdf
Technical brochure
Download
68235_NA.pdf pdf
Instruction sheet
Download
02903_NA.pdf pdf
Submittal data
Download

Drawings and specifications

Part number Connection
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 626600A, Uni-Switch™. Universal flow switch With auxiliary microswitch. Compatible with 1" to 8" pipe size Switch contacts: NO or NC connection: 1" MNPT. Maximum operating pressure: 150 psi. Medium temperature range: -20–250 °F (without ice). Minimum flow rate: 5.7 gpm.
SCIP code
a3e4dfd4-f514-4db2-80d0-f0fc8b2c1198
