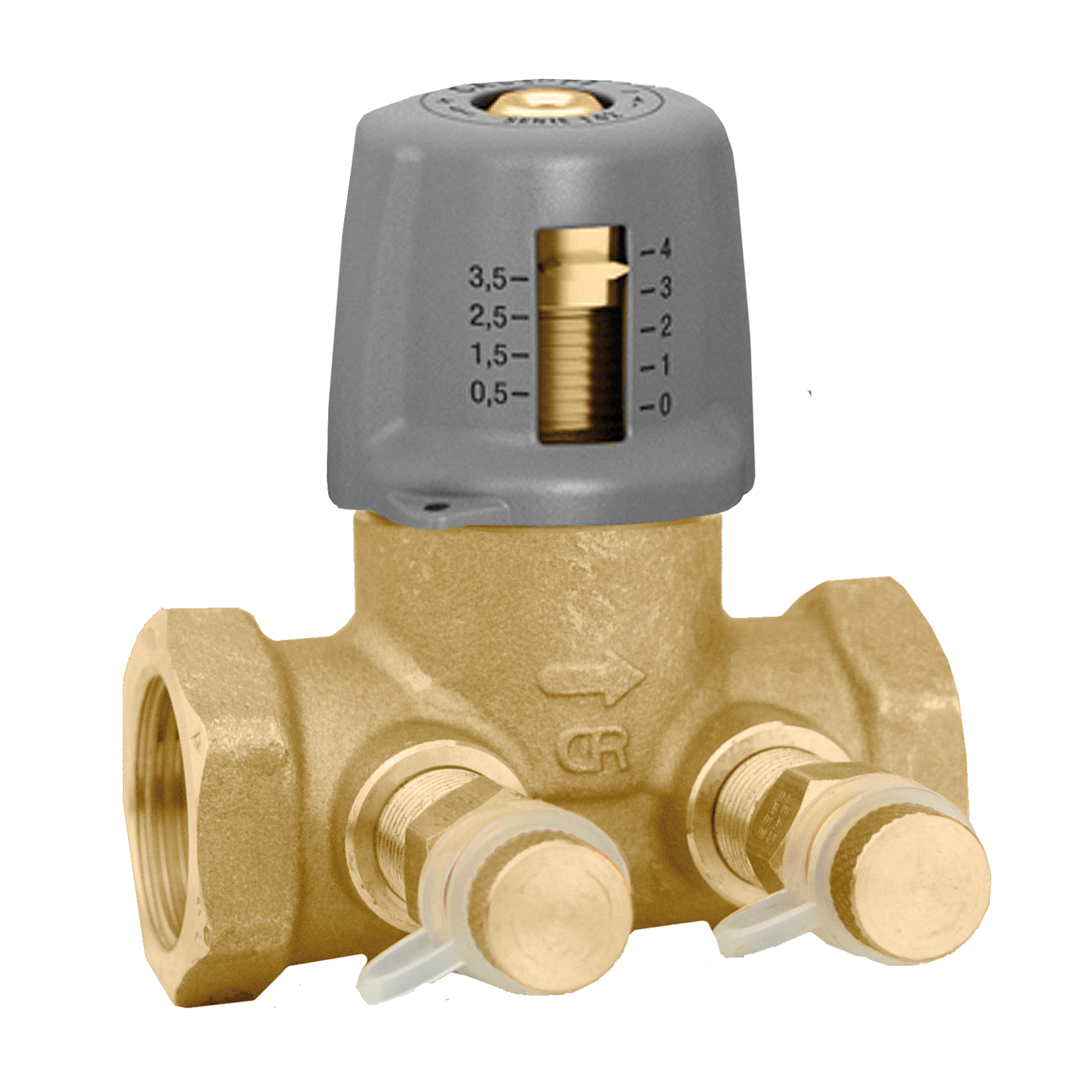

Flo-Set™, Static balancing valve (variable orifice, low-lead)
Product Description
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.
Memory stop feature. Characterized plug for smooth adjustment.
Meets requirements of ANSI/NSF 372-2011.
Technical data
Maximum operating pressure:
232 psi
Medium temperature range:
14–250 °F
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Max Cv | |
|---|---|---|---|
| 142241A | 1/2" FNPT |
3.4 | |
|
3D models
Tender text
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011. connection: 1/2" FNPT. Maximum operating pressure: 232 psi. Medium temperature range: 14–250 °F. Max Cv: 3.4. Material: DZR low lead brass.
SCIP code
162a656d-d124-46c4-a992-517b5cf07883
|
|||
| 142251A | 3/4" FNPT |
5.0 | |
|
3D models
Tender text
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011. connection: 3/4" FNPT. Maximum operating pressure: 232 psi. Medium temperature range: 14–250 °F. Max Cv: 5.0. Material: DZR low lead brass.
SCIP code
43e8beea-973c-45c0-8be9-d8a18089b181
|
|||
| 142261A | 1" FNPT |
7.5 | |
|
3D models
Tender text
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011. connection: 1" FNPT. Maximum operating pressure: 232 psi. Medium temperature range: 14–250 °F. Max Cv: 7.5. Material: DZR low lead brass.
SCIP code
1fdeea19-caec-439c-bef1-7c257152cbab
|
|||
| 142271A | 1 1/4" FNPT |
12.9 | |
|
3D models
Tender text
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011. connection: 1 1/4" FNPT. Maximum operating pressure: 232 psi. Medium temperature range: 14–250 °F. Max Cv: 12.9. Material: DZR low lead brass.
SCIP code
a5ada0a1-c1a7-464b-9415-05fa6e1094de
|
|||
| 142281A | 1 1/2" FNPT |
16.8 | |
|
3D models
Tender text
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011. connection: 1 1/2" FNPT. Maximum operating pressure: 232 psi. Medium temperature range: 14–250 °F. Max Cv: 16.8. Material: DZR low lead brass.
SCIP code
35b65846-cd6c-4cf6-a479-45dd5768763e
|
|||
| 142291A | 2" FNPT |
22.0 | |
|
3D models
Tender text
Static balancing valve (variable orifice, low-lead)
Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011. connection: 2" FNPT. Maximum operating pressure: 232 psi. Medium temperature range: 14–250 °F. Max Cv: 22.0. Material: DZR low lead brass.
SCIP code
39b02feb-0208-4584-b74f-ac1abe6c4413
|
|||
